Magento 2 Custom Order Grid

Magento 2 Custom Order Grid offers an advanced order grid to add, track and manage order information in one place for faster order processing and accurate order management.



Table of Content

  1. Extension Installation Guide
  2. Configuration
  3. Custom Order Grid in Backend



  1. Extension Installation
  • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
  • Login to your SSH and run below commands step by step:
    • php bin/magento setup:upgrade
    • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
    • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
    • php bin/magento cache:flush
  • That’s it.



  1. Configuration

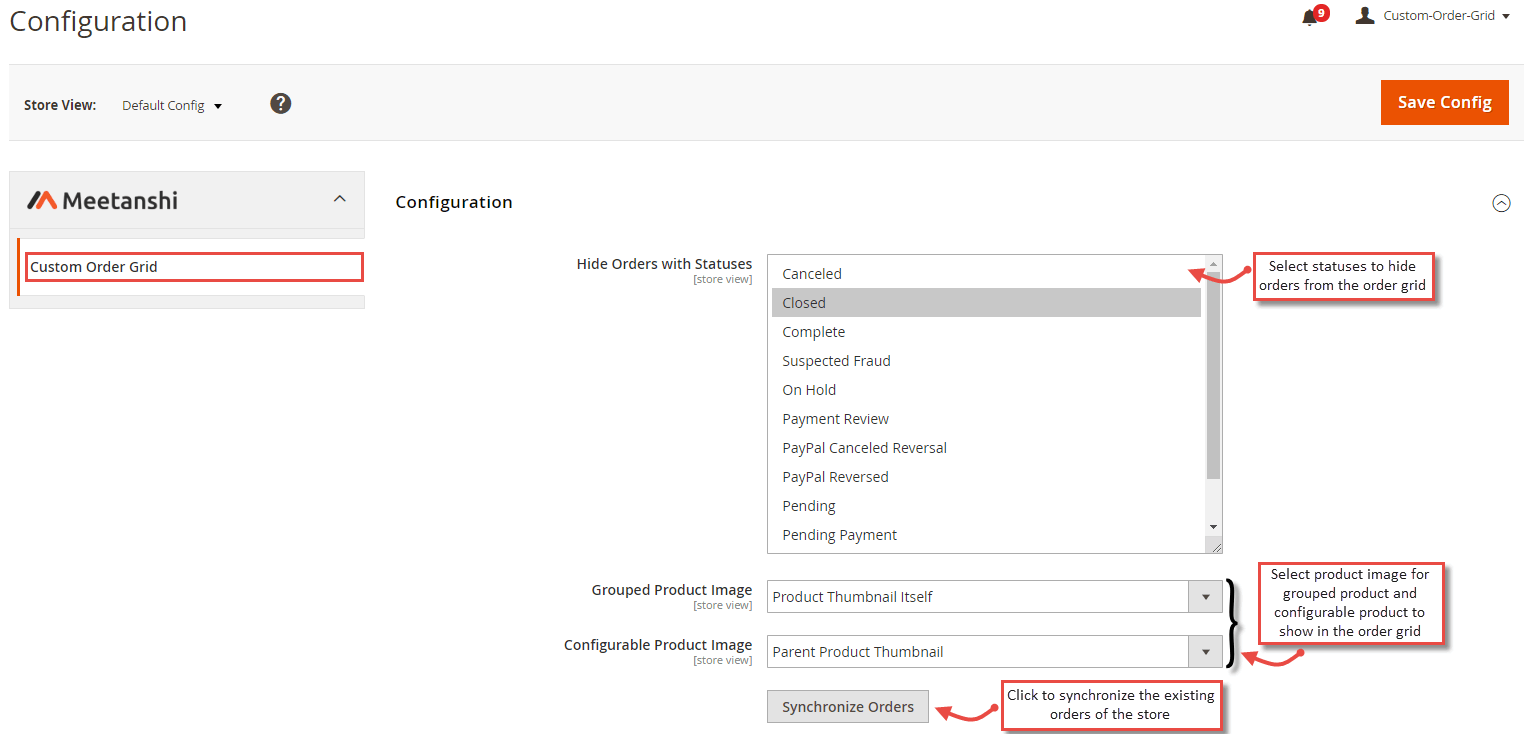

    For configuring the extension, login to Magento 2, move to Stores > Configuration where you can find various settings to enable the extension.
  • Hide Orders with Statuses: Select order statuses of which you want to hide orders from the orders grid.
  • Grouped Product Image: Select the image you want to show for the grouped products in the orders grid.
  • Configurable Product Image: Select the image you want to show for the configurable products in the orders grid.
  • Synchronize Orders: Click the button to synchronize the existing orders of the store.




  1. Custom Order Grid in Backend

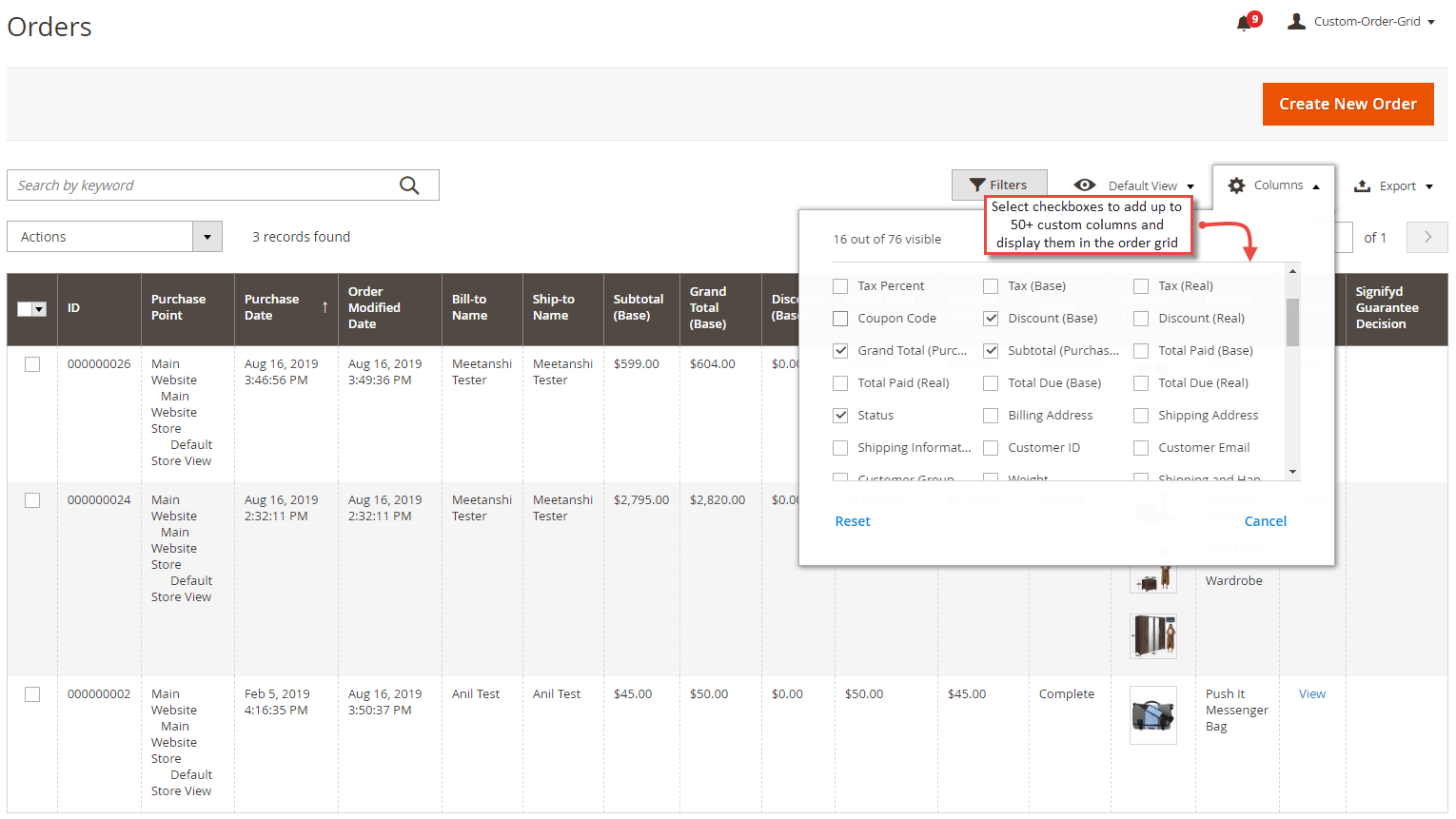

  • Add Custom Columns to the Grid
    After configuring the extension and synchronizing the orders, go to Sales > Orders grid and select the columns to be added to the grid.

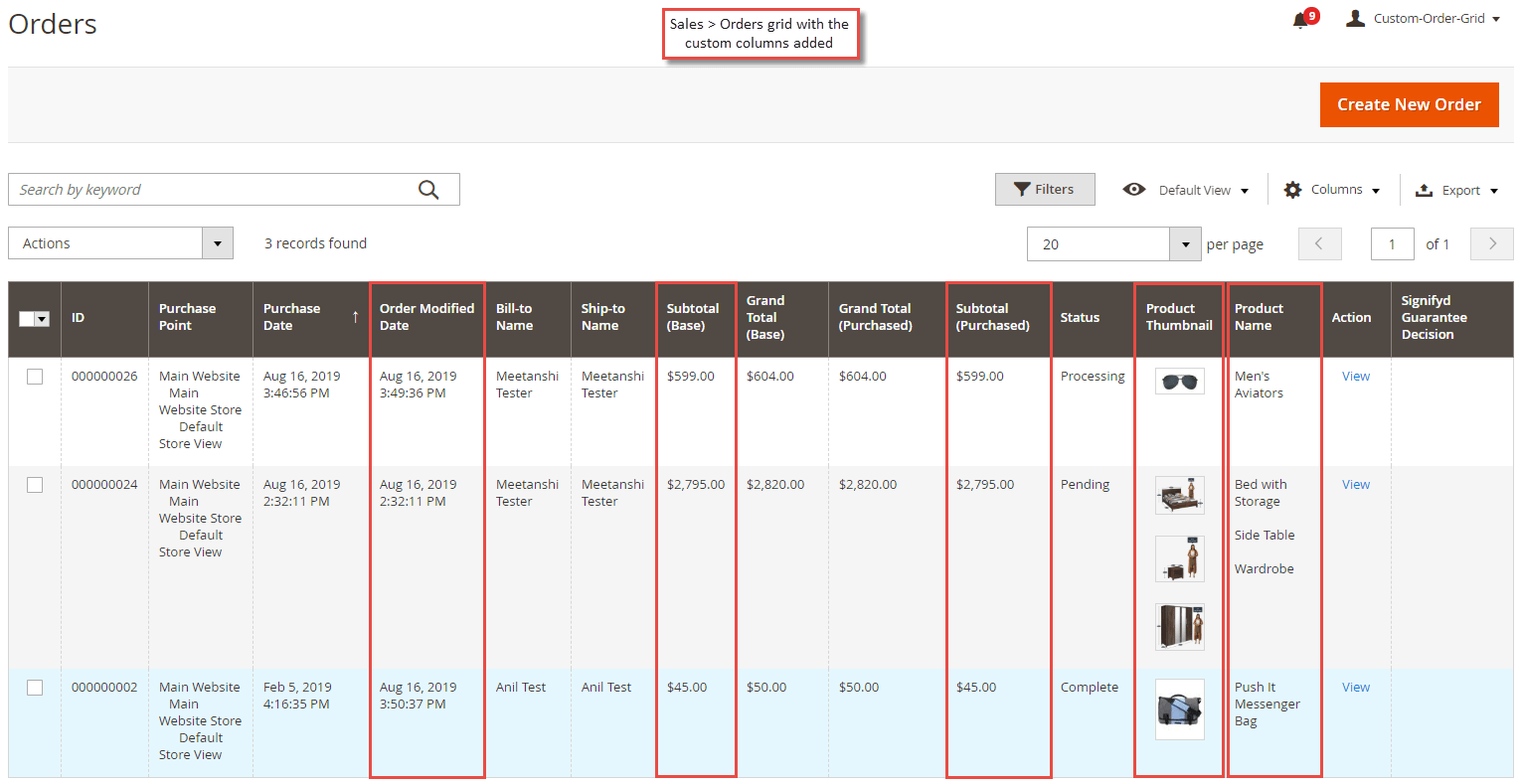

  • Order Grid with Custom Columns
    Once you select the custom columns, the orders grid gets updated with the custom columns selected by you.
