Magento 2 Sequel Logistics

Magento 2 Sequel Logistics integrates Sequel API with Magento 2 to leverage Sequel courier service to deliver high monetary value and time-critical healthcare products around the world.

Table of Content

1. Extension Installation Guide
2. Configuration
3. Sequel Logistics in Frontend
4. Sequel Logistics Details in Backend
5. Sequel Logistics Details in Shipment Email


1. Extension Installation
   • For Magento Marketplace Customers
     • Create a folder structure in Magento root as app/code/Meetanshi/CustomCarrierNumber
     • Download and extract the zip folder and upload our extension files to the app/code/Meetanshi/CustomCarrierNumber via FTP.
     • Login to your SSH and run below commands step by step:
       • php bin/magento setup:upgrade
       • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
       • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
       • php bin/magento cache:flush

• • For Meetanshi Customers
    • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
    • Login to your SSH and run below commands step by step:
      • php bin/magento setup:upgrade
      • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
      • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
      • php bin/magento cache:flush

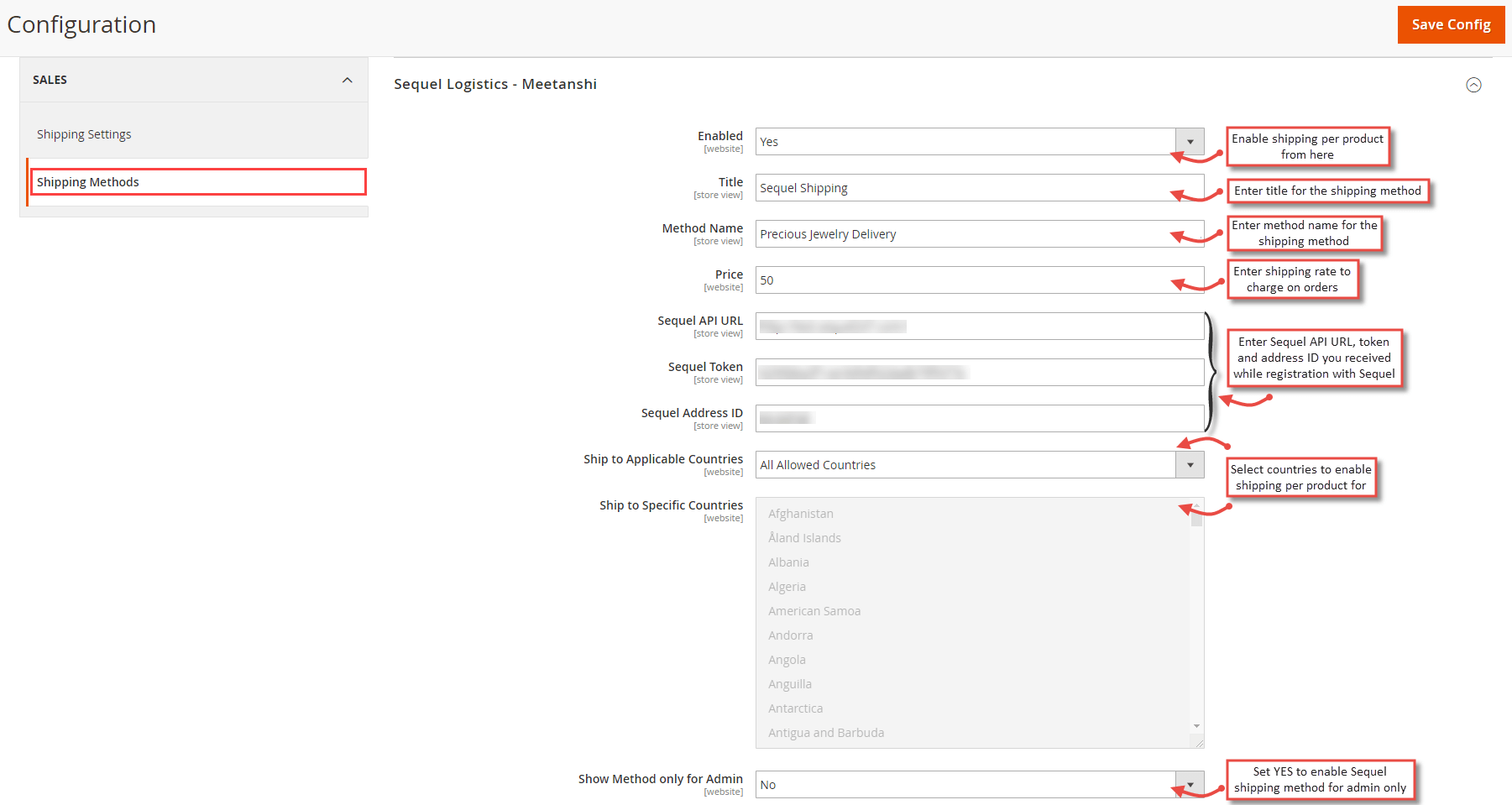

2. Configuration
   For configuring the extension, login to Magento 2, move to Sales à Shipping Methods à Sequel Logistics where you can find various settings to enable the extension.

• Enabled: Set “YES” to enable Sequel Logistics shipping method extension.
• Title: Enter the title for the shipping method.
• Method Name: Enter the method name for the Sequel Logistics.
• Price: Enter shipping rate amount to charge on orders.
• Ship to applicable countries: Select all allowed countries to enable Sequel Logistics for all the countries.
• Ship to specific countries: Select specific countries to enable Sequel Logistics.
• Show method only for admin: Set “Yes” to enable Sequel Logistics method for the admin only.

3. Sequel Logistics in Frontend
   Once you have set shipping cost and configured the extension, you can see Sequel Logistics extension enabled in the frontend. After adding products to the cart, Sequel Logistics method is calculated and charged when selected.

• Sequel Logistics on Cart Page
  Sequel Logistics shipping method applied on order at cart page.

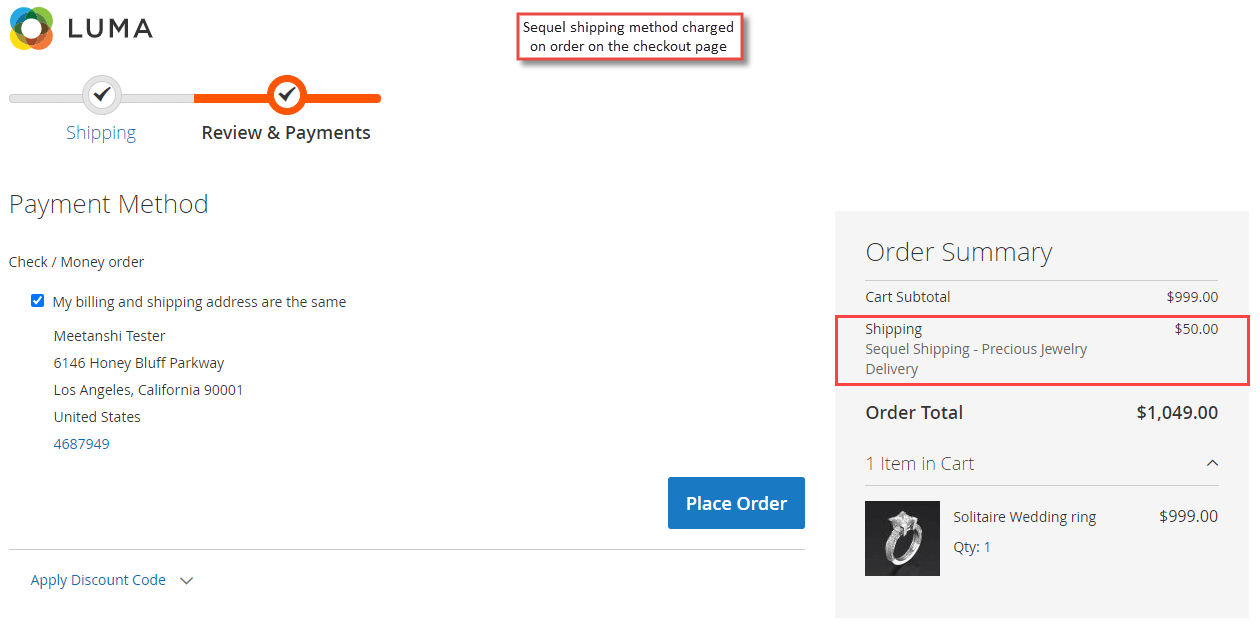

• Sequel Logistics on Checkout Page
  Sequel Logistics shipping method applied on order at checkout page.

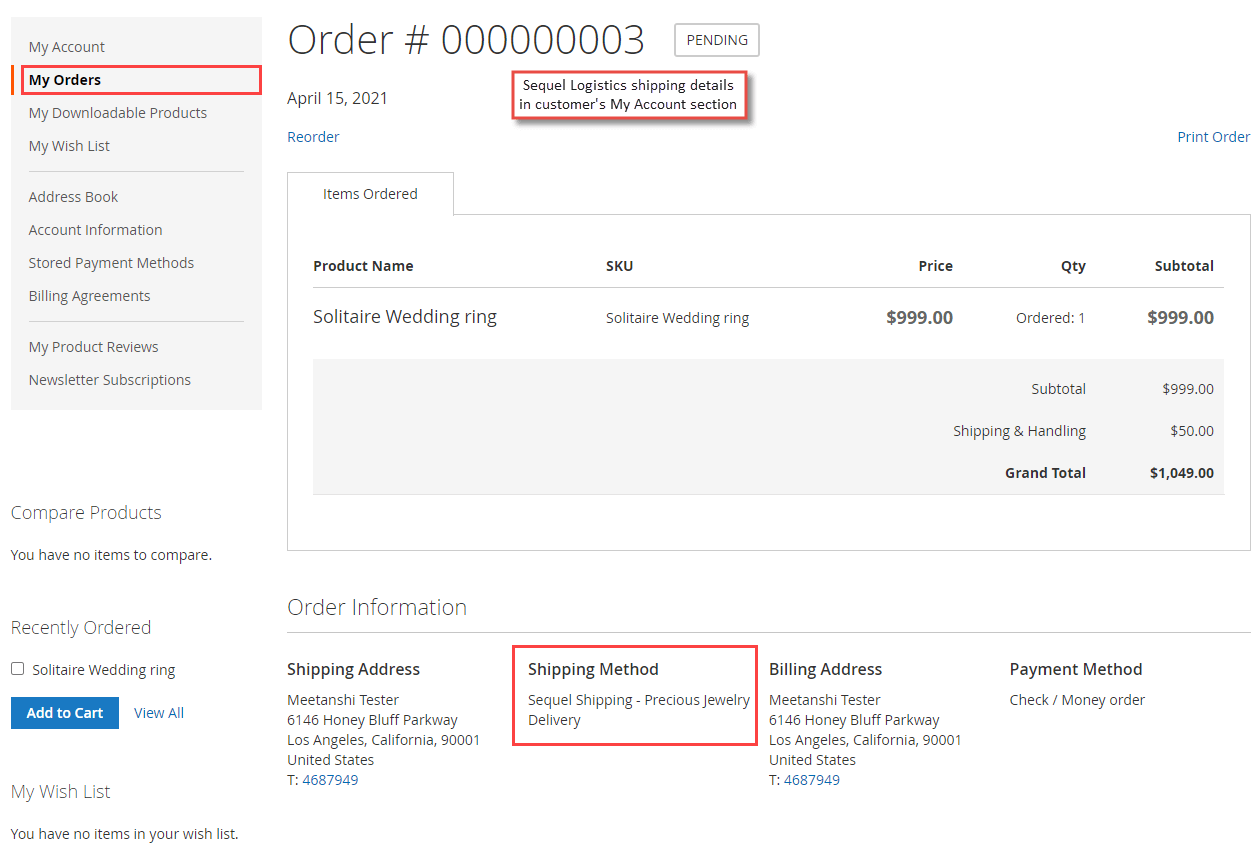

• Sequel Logistics in “My Account” Section
  Once the order is placed using Sequel Logistics shipping method, under “My Orders” tab, shipping  details is seen with the name of the shipping method.

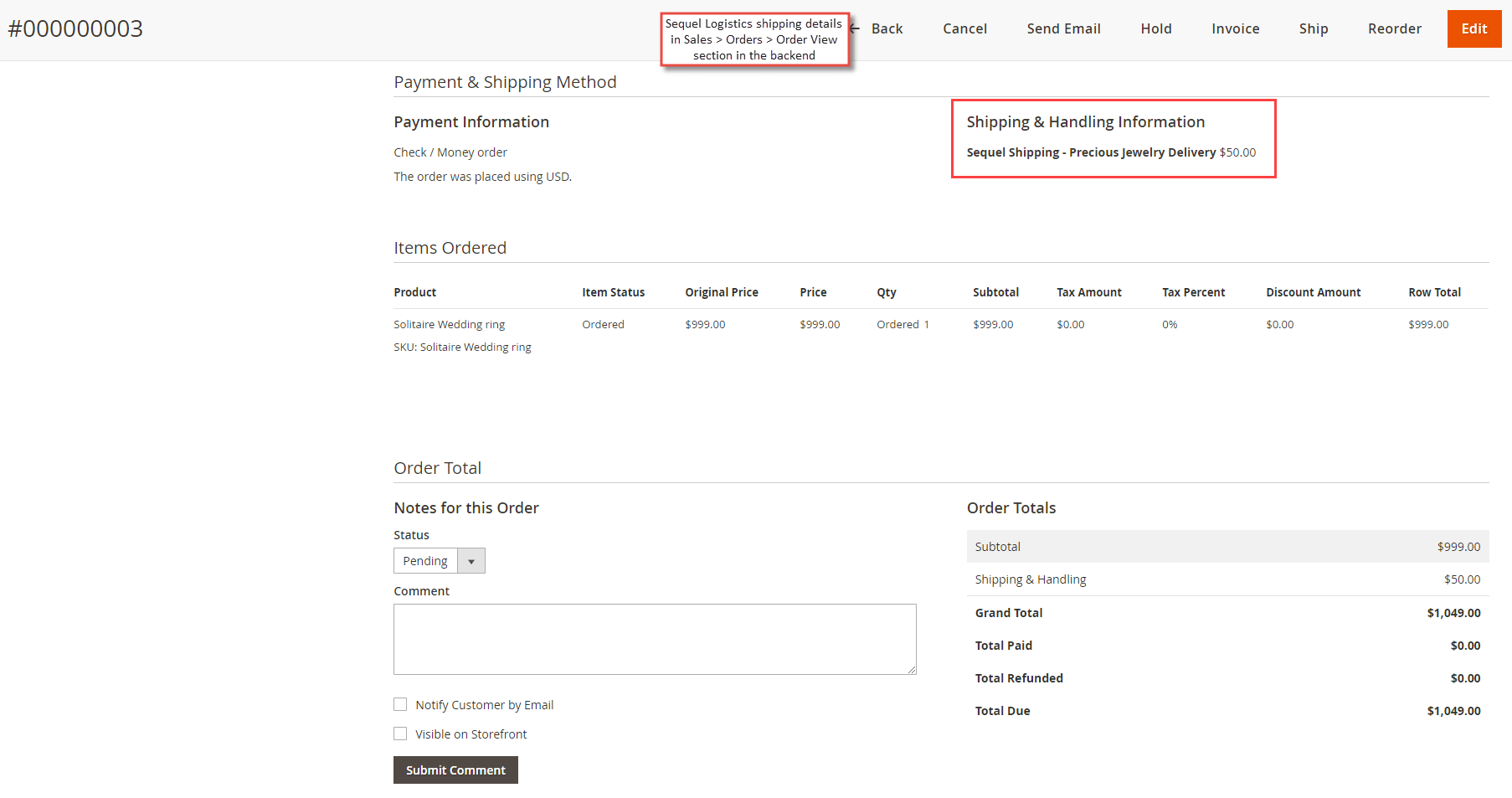

4. Sequel Logistics Details in Backend
   Apart from the frontend, the Sequel Logistics method details can also be seen from the backend under Sales à Orders à Order View.

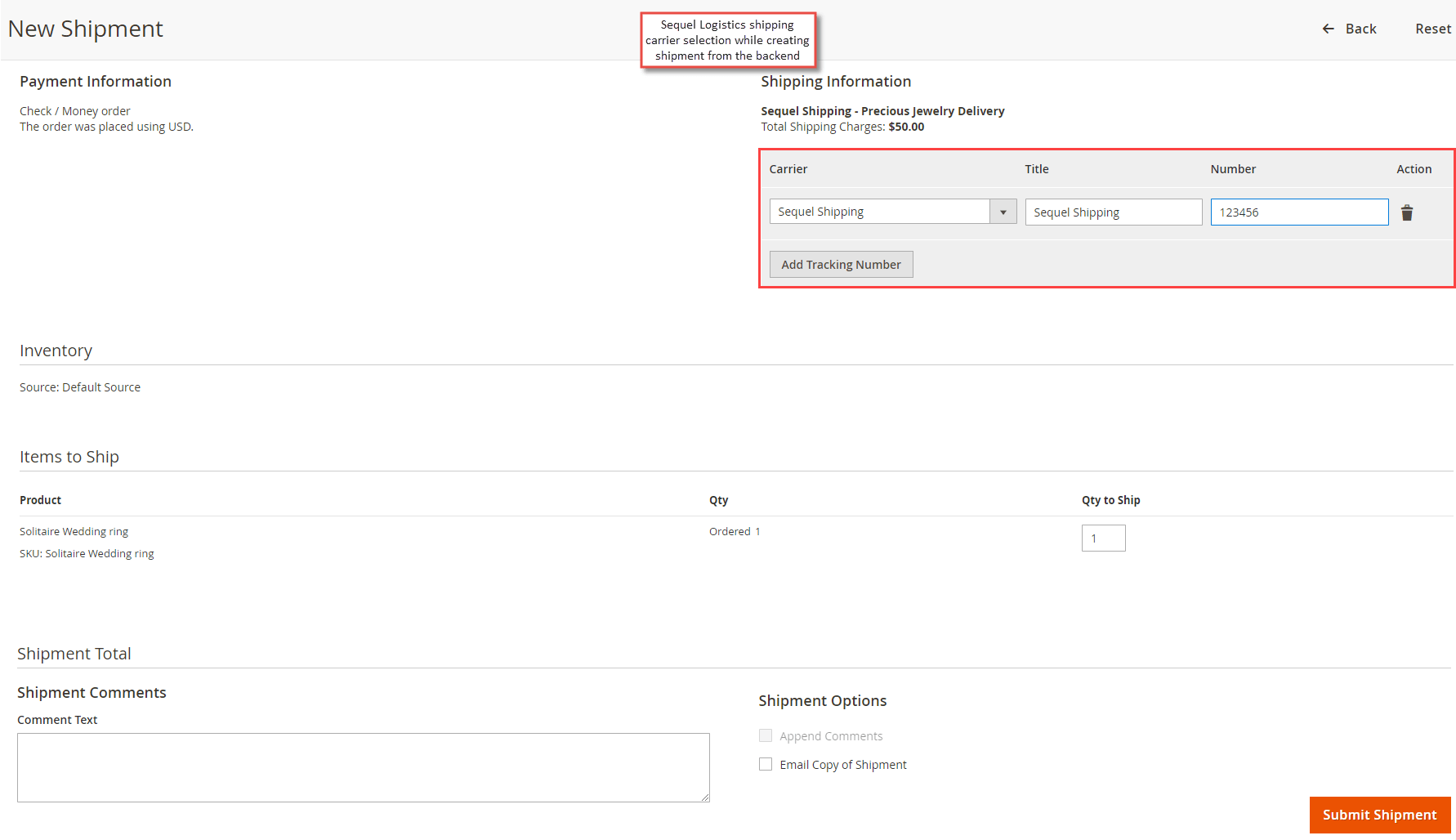

• Sequel Logistics While Creating Shipment
  When the admin creates a shipment from the backend, he selects “Sequel Logistics” shipping carrier, enters the title, adds a random tracking number and submits the shipment.

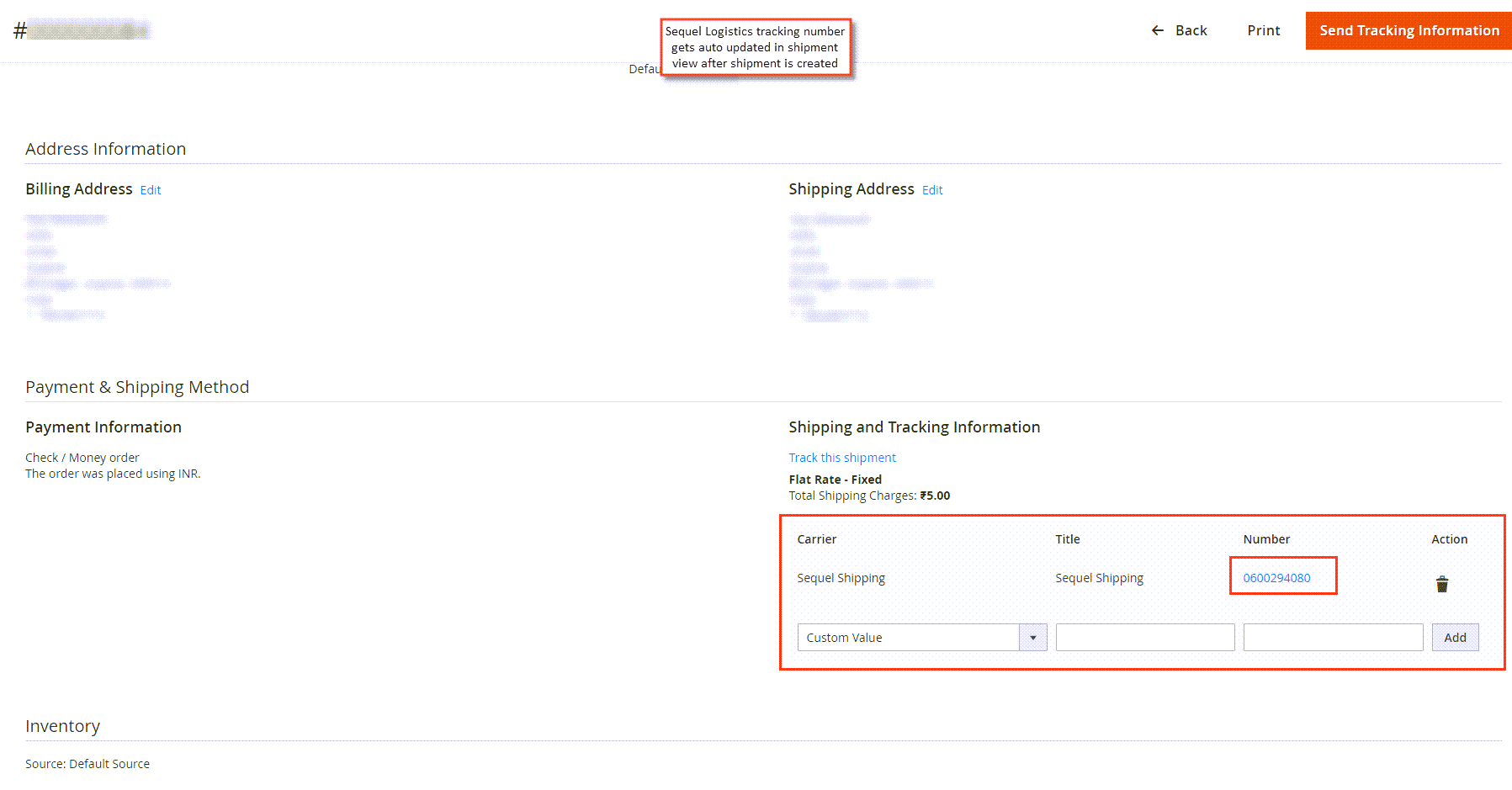

• Sequel Logistics Tracking Number Auto Updated
  Immediately after the shipment is submitted, the Sequel Logistics tracking number gets auto updated. The admin can see auto updated tracking number from the Sales > Orders > Shipment > Shipment View.

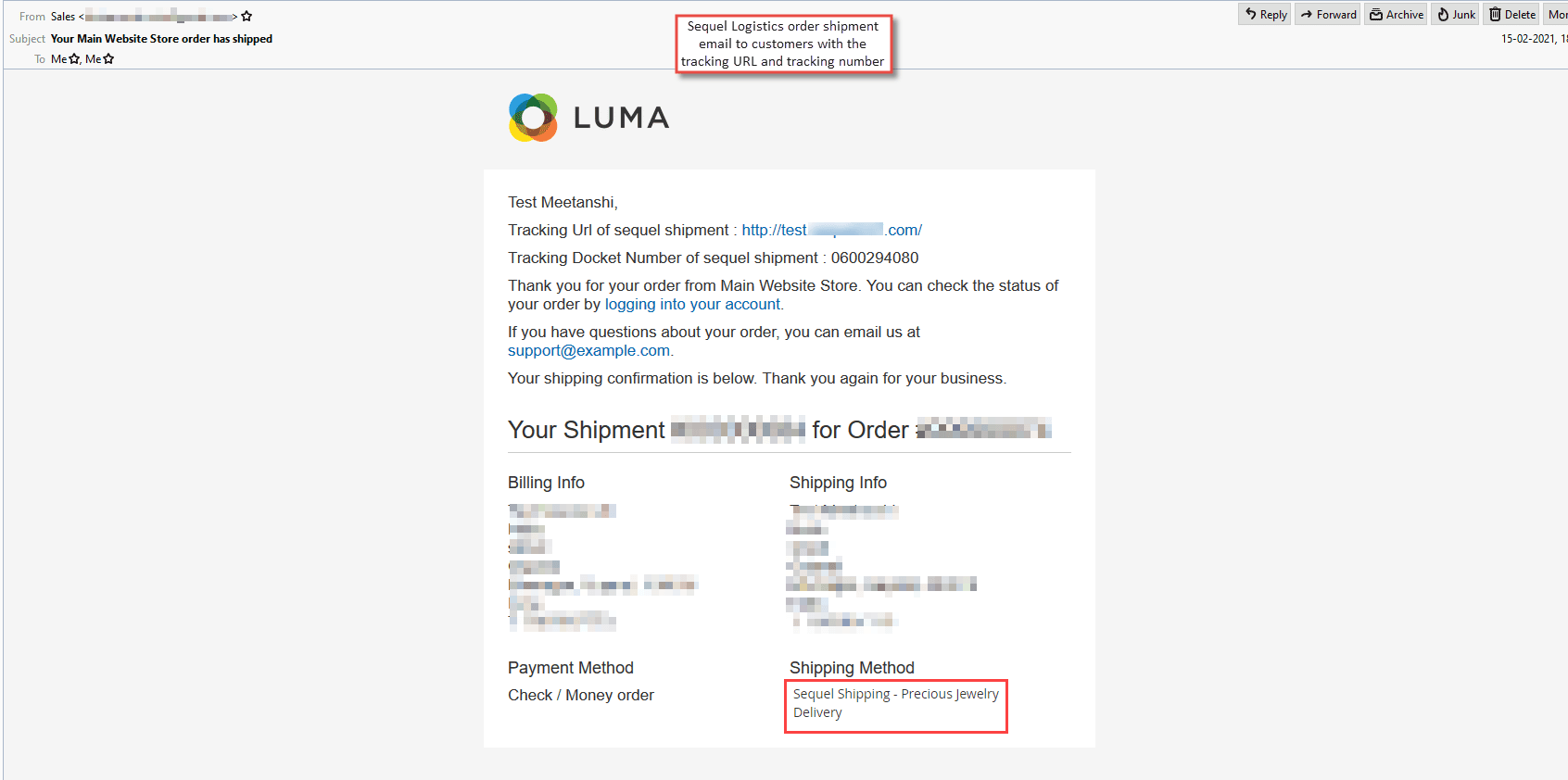

5. Sequel Logistics Details in Shipment Email
   After the shipment is submitted and tracking number gets auto updated in the shipment, the customer gets the shipment email along with the details like Sequel tracking URL and docket/tracking number.
