Magento 2 Lipa Na M-Pesa Payment

Magento 2 Lipa Na M-Pesa Payment integrates Lipa Na M-PESA API with Magento 2 to allow customers to pay using their phone securely in the store.

Table of Content

  1. Extension Installation
  2. Configuration
  3. Lipa Na M-Pesa Payment Method in Frontend
  4. Lipa Na M-Pesa Payment Details in Backend



  1. Extension Installation
    • For Magento Marketplace Customers
      • Find the Composer name and version of the extension in the extension’s composer.json file.
      • Login to your SSH and run:
      • composer require meetanshi/magento2-lipa-na-mpesa-payment
    • Enter your authentication keys. Your public key is your username; your private key is your password.
    • Wait for Composer to finish updating your project dependencies and make sure there aren’t any errors.
    • To verify that the extension installed properly, run the command:
      • php bin/magento module:status Meetanshi_Lipa
          • By default, the extension is probably disabled.
          • Enable the extension and clear static view files:
      • php bin/magento module:enable Meetanshi_Lipa --clear-static-content
      • php bin/magento setup:upgrade
      • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
      • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
      • php bin/magento cache:flush



    • For Meetanshi Customers
      • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
      • Login to your SSH and run below commands step by step:
        • php bin/magento setup:upgrade
        • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
        • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
        • php bin/magento cache:flush



  1. Configuration

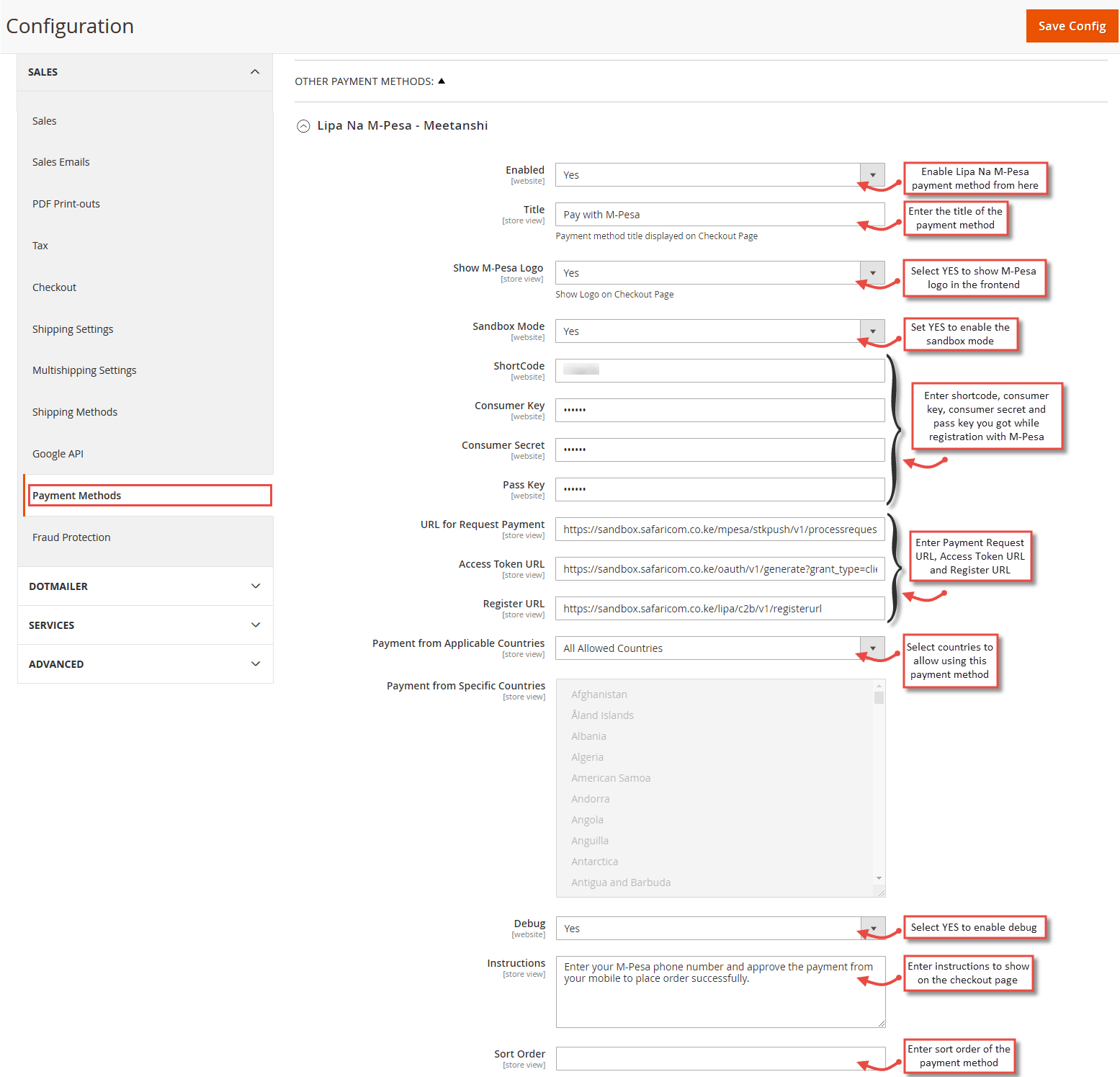

For configuring the extension, log in to Magento 2, move to Sales à Payments Methods à Lipa Na M-Pesa Payment - Meetanshi where you can find various settings to enable the extension.



  • Enabled: Set “YES” to enable the payment method.
  • Title: Set the title of the payment method to be displayed in the frontend.
  • Show M-Pesa Logo: Set YES to show M-Pesa logo along with the payment method in the frontend.
  • Sandbox Mode: Select YES to enable sandbox mode.
  • ShortCode: Enter Shortcode provided by M-Pesa while registration with Safaricom.
  • Pass Key: Enter Pass Key provided by M-Pesa while registration with Safaricom.
  • Consumer Key: Enter consumer key provided by M-Pesa while registration with Safaricom.
  • Consumer Secret: Enter consumer secret provided by M-Pesa while registration with Safaricom.

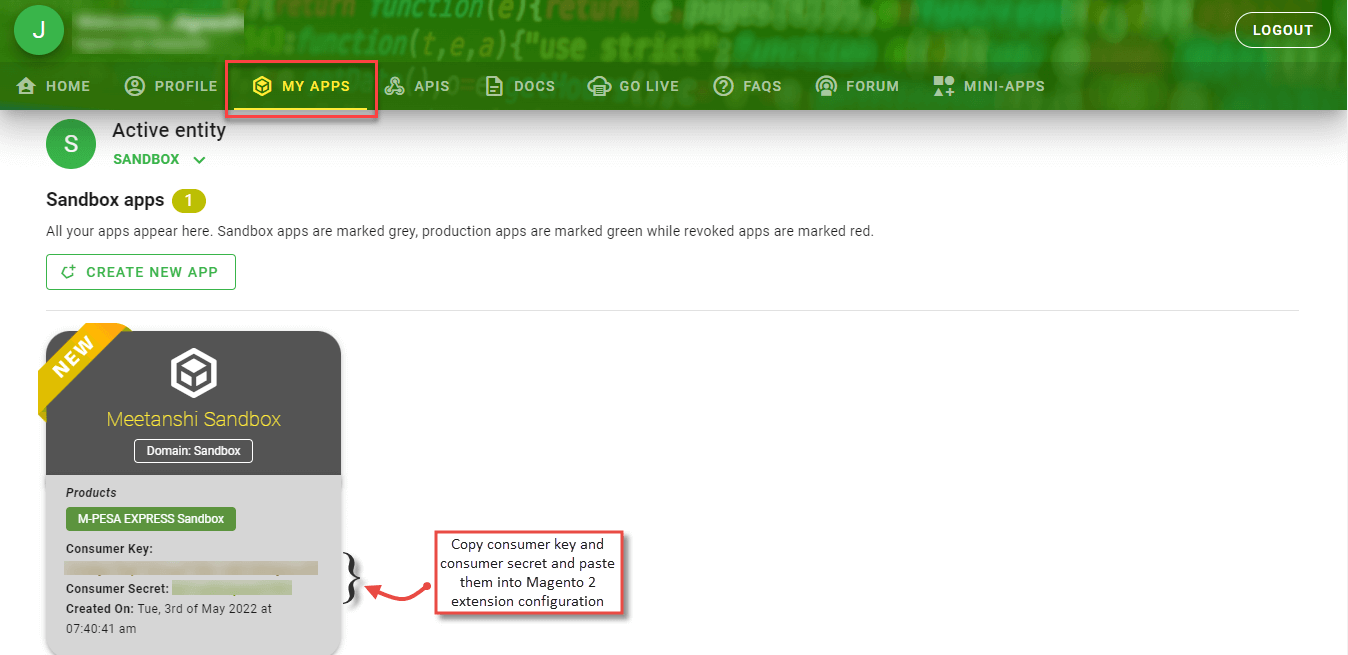

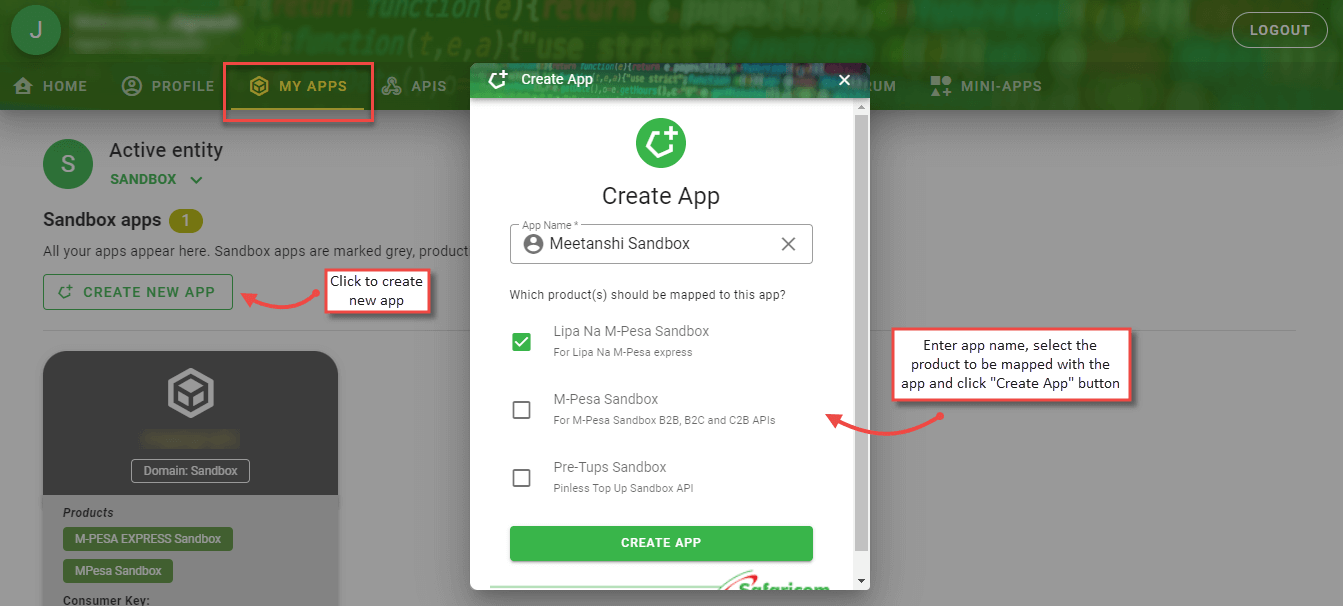

    • Login to Safaricom and move to My Apps. Click “Create New App” button and create new app for Lipa Na M-Pesa sandbox.

    • Immediately after the app is created, you can see consumer key and consumer secret. Copy both and paste them in relevant fields in Magento 2 extension configuration.

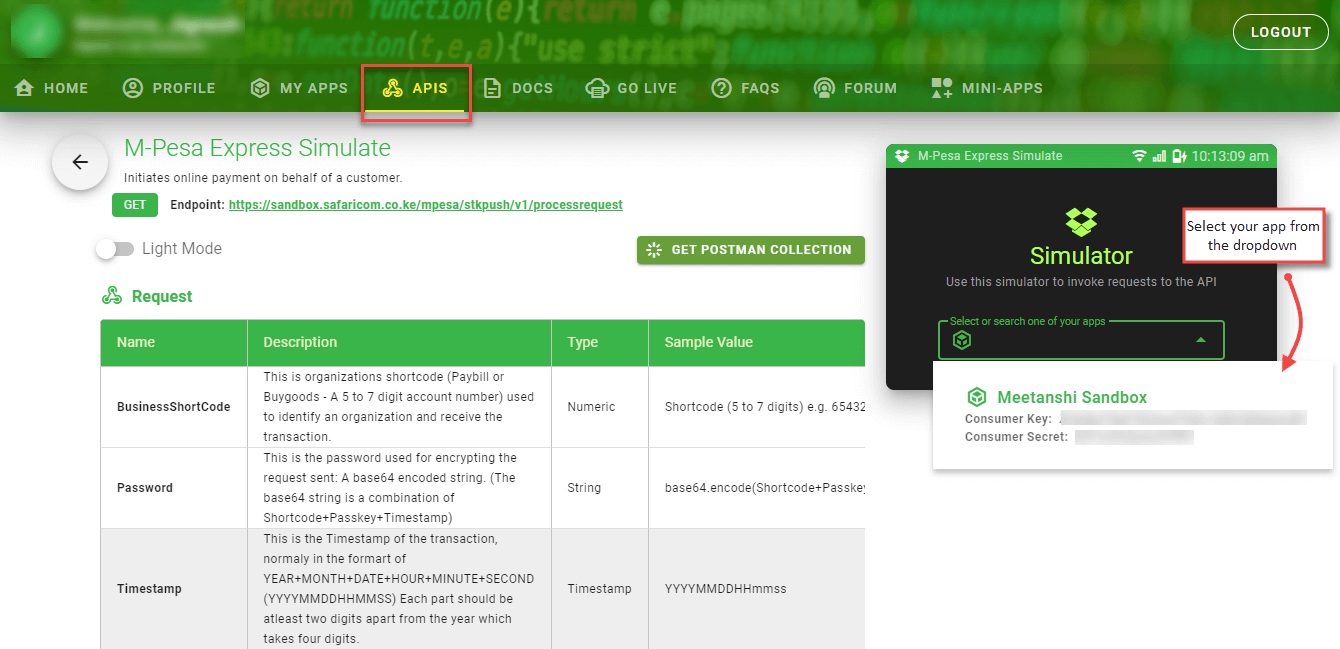

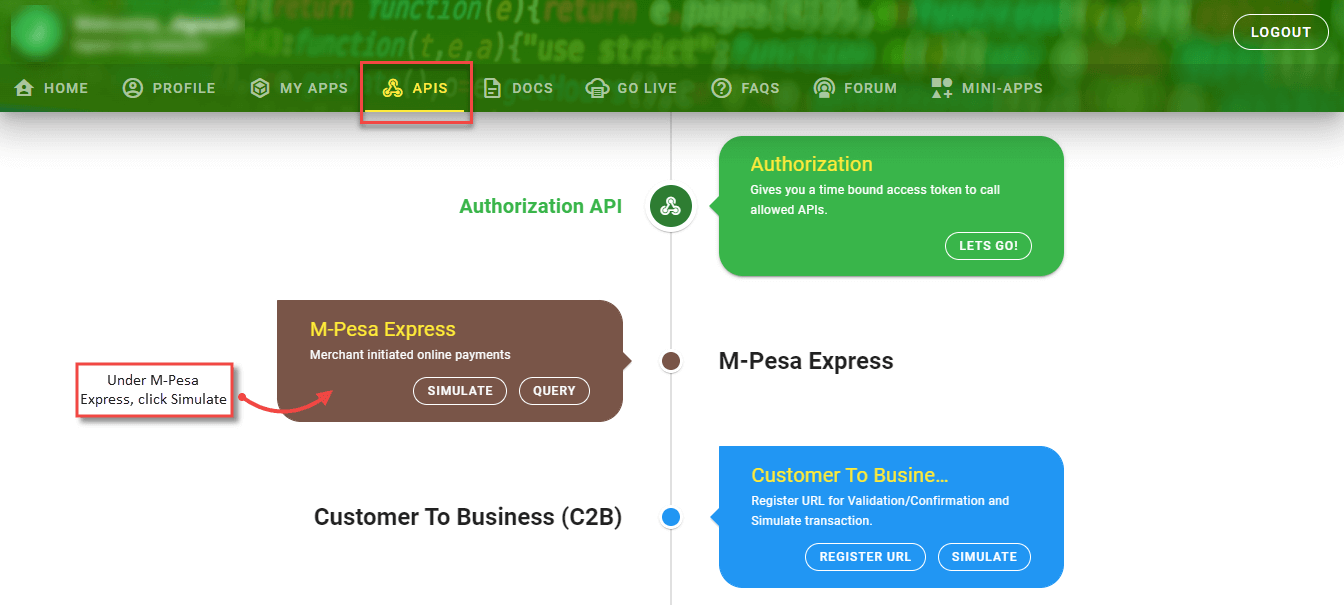

    • Select the app you created.

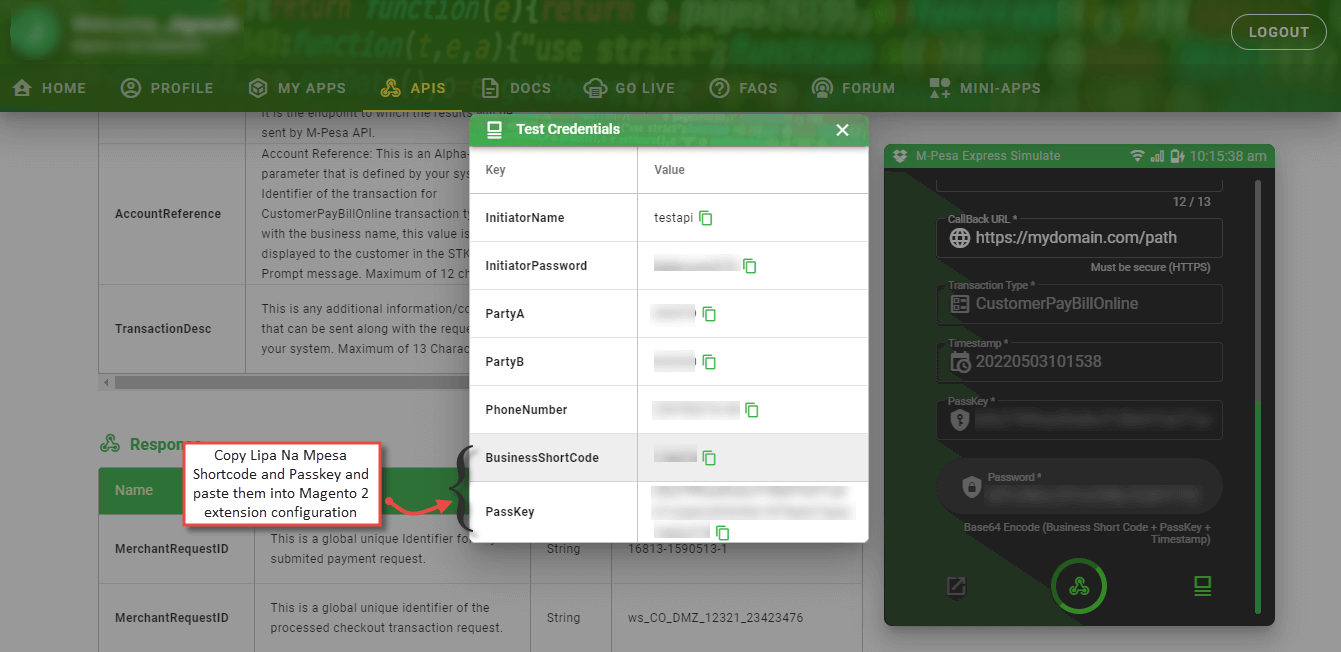

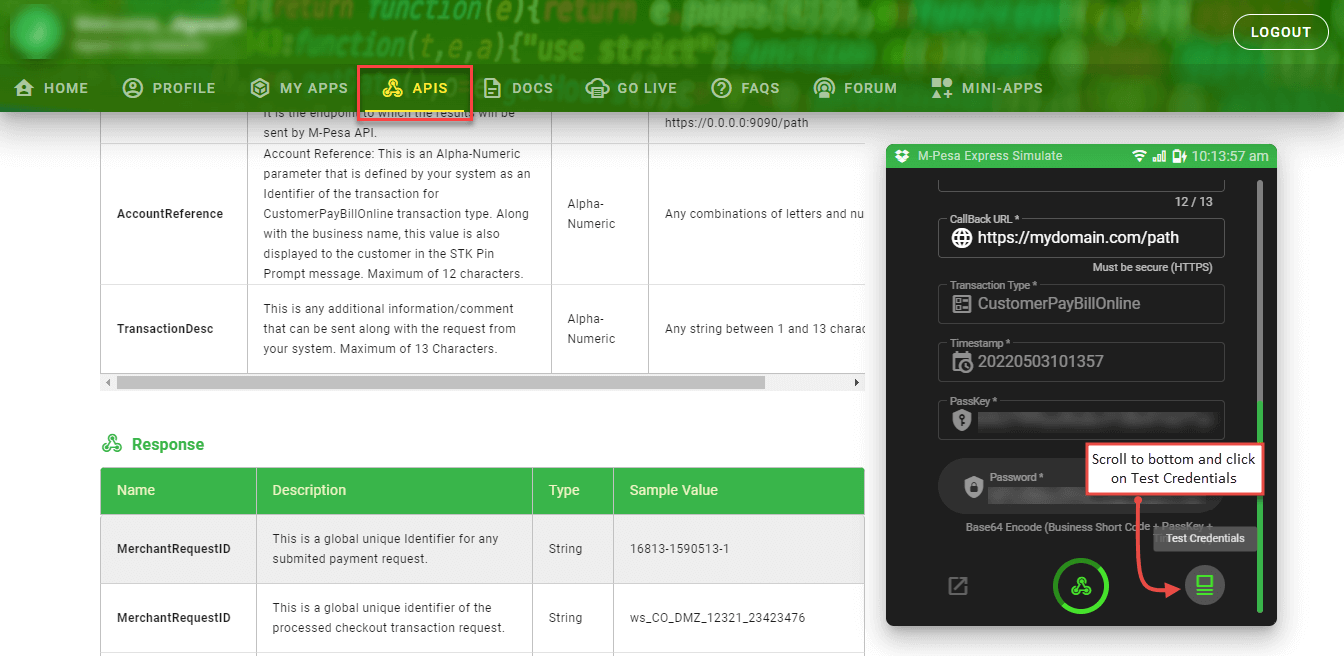

    • Scroll to bottom and click on “Test Credentials”.



    • From the Test Credentials popup, copy both the shortcode and passkey and paste them in the relevant fields in Magento 2 extension configuration.

  • URL for Request Payment: Payment request URL will be pre-filled on extension installation.
  • Access Token URL: Access token URL will be pre-filled on extension installation.
  • Register URL: Register URL will be pre-filled on extension installation.
  • Payment from Applicable Countries: Select countries to allow using this payment method.
  • Debug: Select YES to enable debug.
  • Instructions: Enter instructions to show along with the payment method in the frontend.
  • Sort Order: Enter Sort Order of the payment method display in the frontend.



  1. Lipa Na M-Pesa Payment Method in Frontend

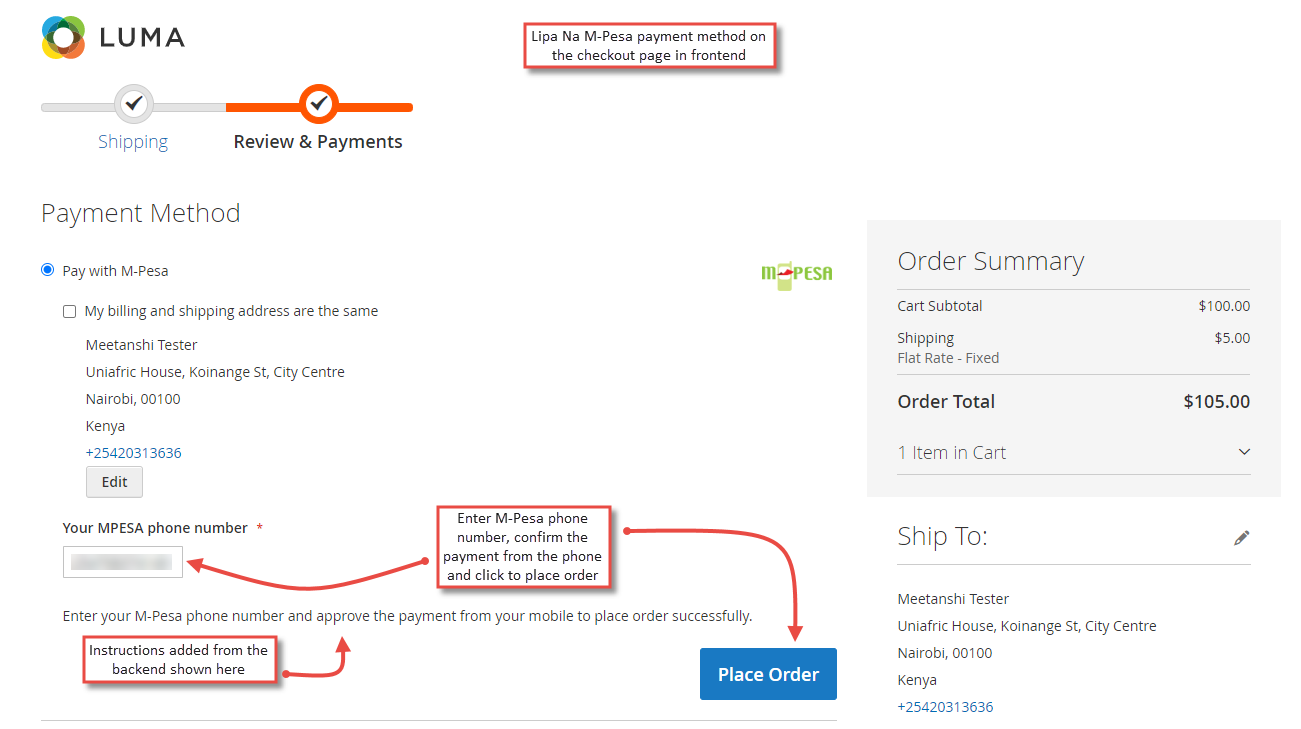

    Once the payment method is configured, Lipa Na M-Pesa Payment method is shown on the checkout page in the frontend while checking out the products. Just select the Lipa Na M-Pesa Payment method, add M-Pesa mobile number and click “Place Order” to confirm the payment and place order successfully.

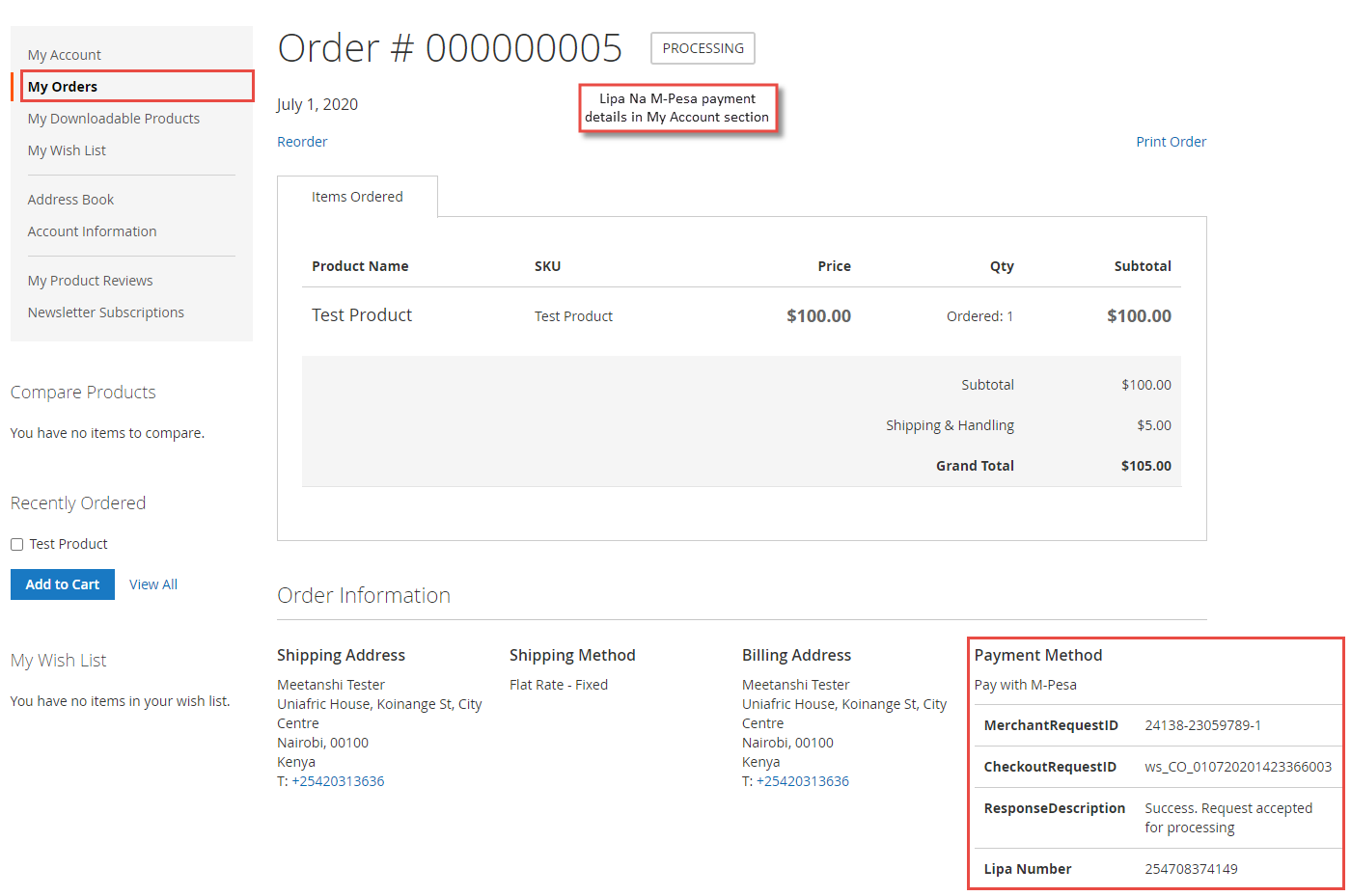

  • Lipa Na M-Pesa Payment Details in “My Account” section
    Once the order is placed, the Lipa Na M-Pesa Payment details are shown in the Account dashboard, in “My Orders” tab which includes payment method name, merchant request ID, checkout request ID, and response description.

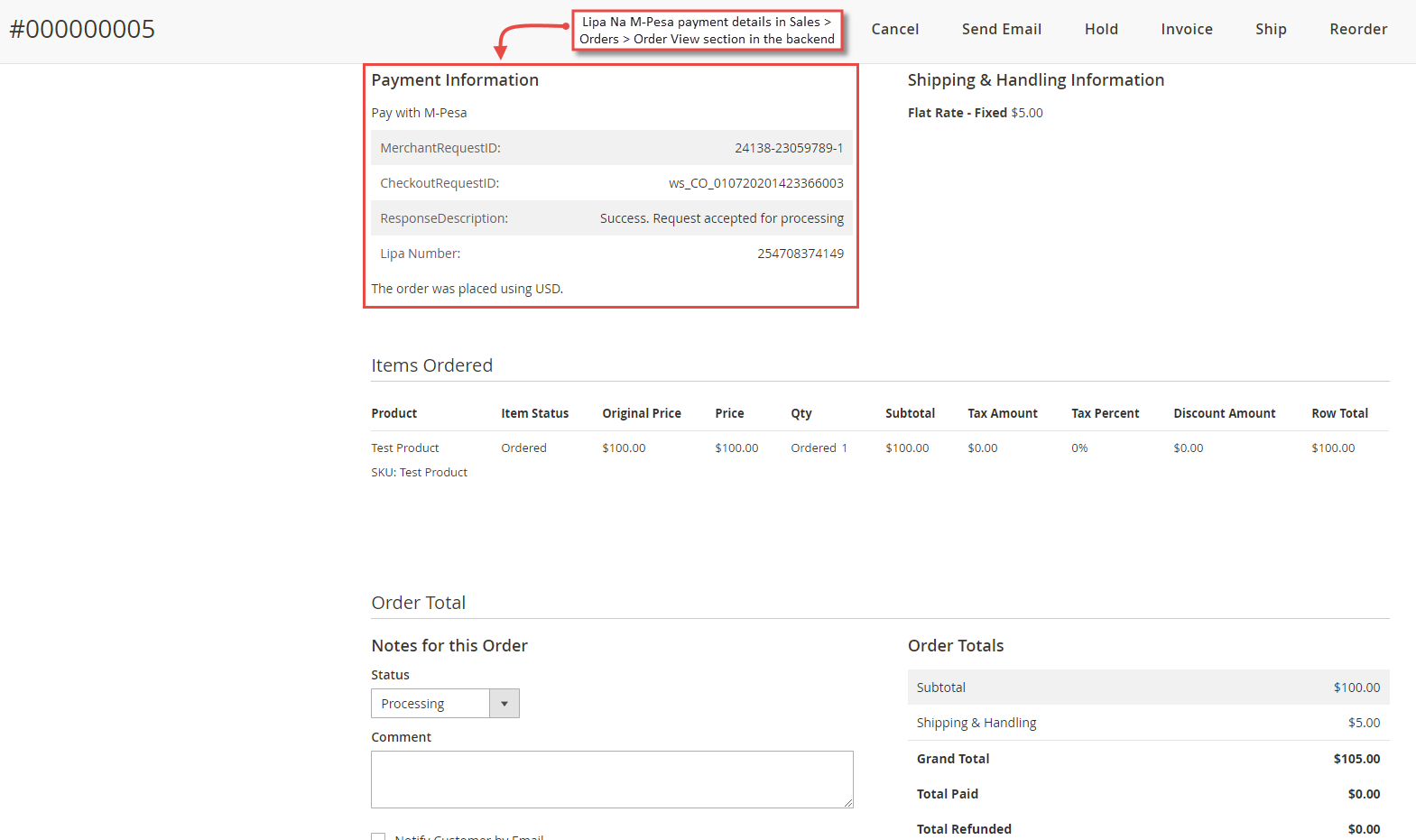

  1. Lipa Na M-Pesa Payment Details in Backend
    Apart from the frontend, the admin can also view Lipa Na M-Pesa Payment details in the Sales > Orders > Order View section in the backend. It displays the payment details like payment method name, merchant request ID, checkout request ID, response description, and lipa number.
