Magento 2 Alipay Hong Kong Payment

Magento 2 Alipay Hong Kong Payment by Meetanshi helps your Magento 2 stores to accept secure online payments from the users of Hong Kong using Alipay Payment Gateway.



Table of Content

  1. Extension Installation Guide
  2. Payment Gateway Configuration
  3. Configuration
  4. Alipay Hong Kong Payment Method in Frontend
  5. Alipay Hong Kong Payment Details in Backend
  6. Alipay Hong Kong Order Placement from Mobile



  1. Extension Installation
  • For Magento Marketplace Customers
    • Create a folder structure in Magento root as app/code/Meetanshi/Alipay
    • Download and extract the zip folder and upload our extension files to the app/code/Meetanshi/Alipay via FTP.
    • Login to your SSH and run below commands step by step:
      • php bin/magento setup:upgrade
      • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
      • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
      • php bin/magento cache:flush

  • For Meetanshi Customers
    • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
    • Login to your SSH and run below commands step by step:
      • php bin/magento setup:upgrade
      • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
      • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
      • php bin/magento cache:flush

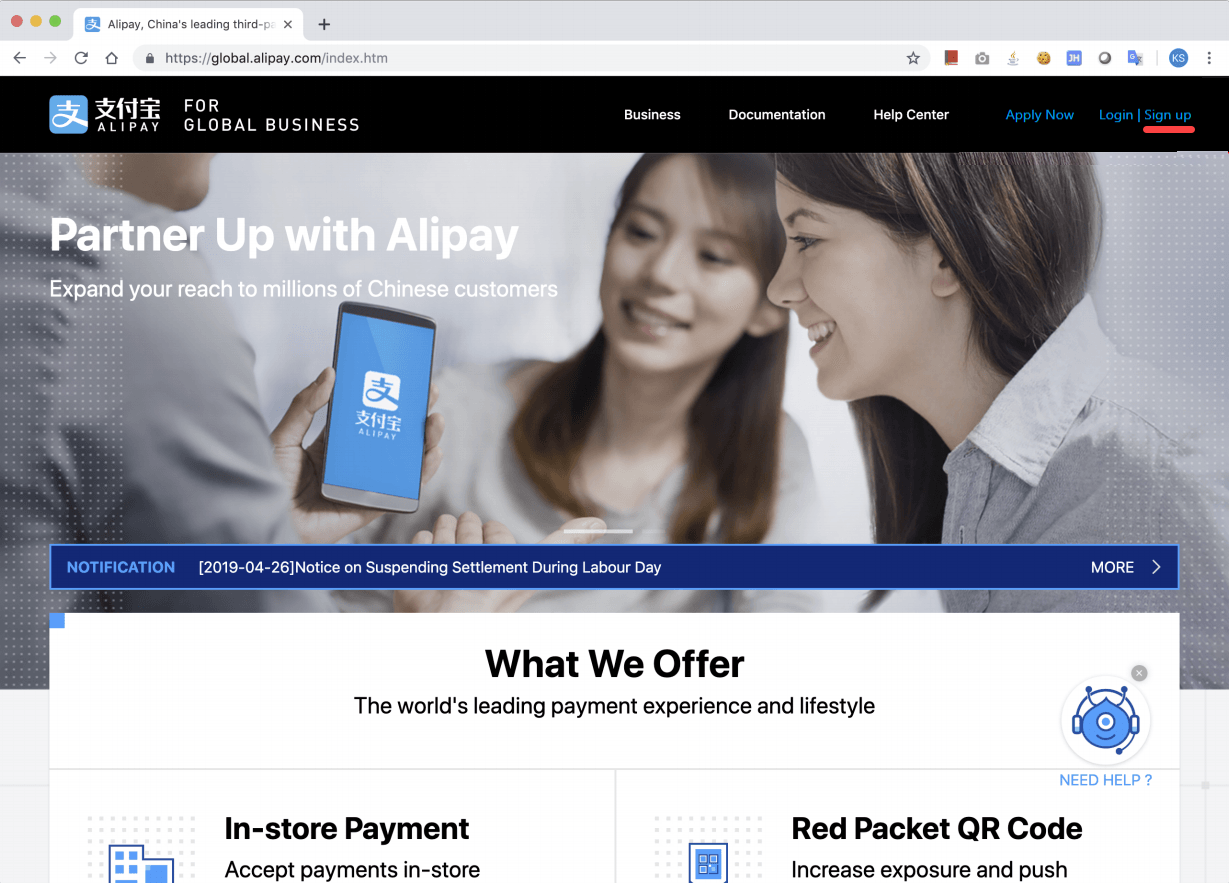

  1. Payment Gateway Configuration
    Before starting to configure the Alipay Hong Kong payment extension, you need to configure the payment gateway.

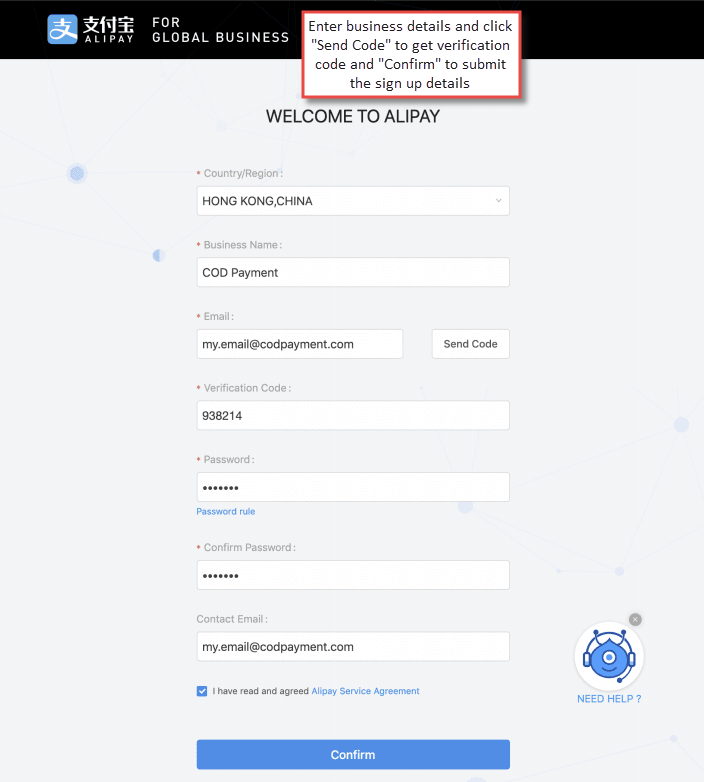

  • Fill up the registration form, get verification code on your Email ID and click confirm to submit the registration details.

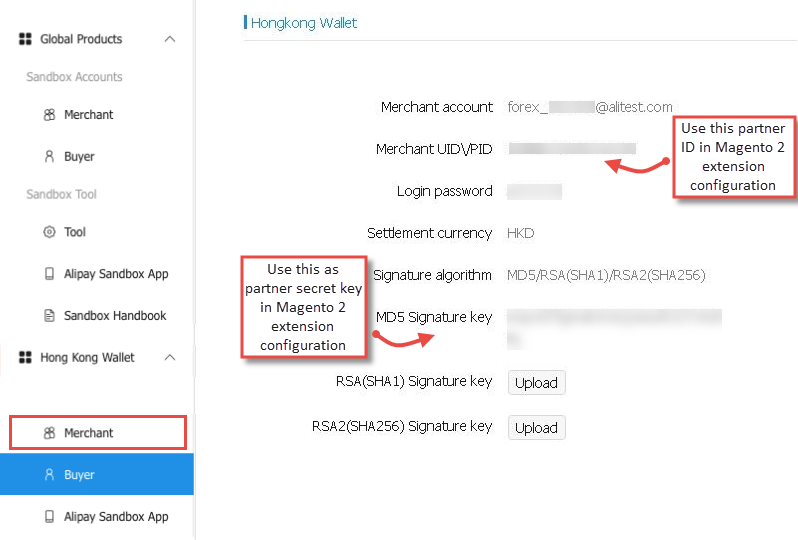

  • Expand the Hong Kong wallet tab under which you can find partner ID and partner secret key to be added to your Magento 2 extension configuration.

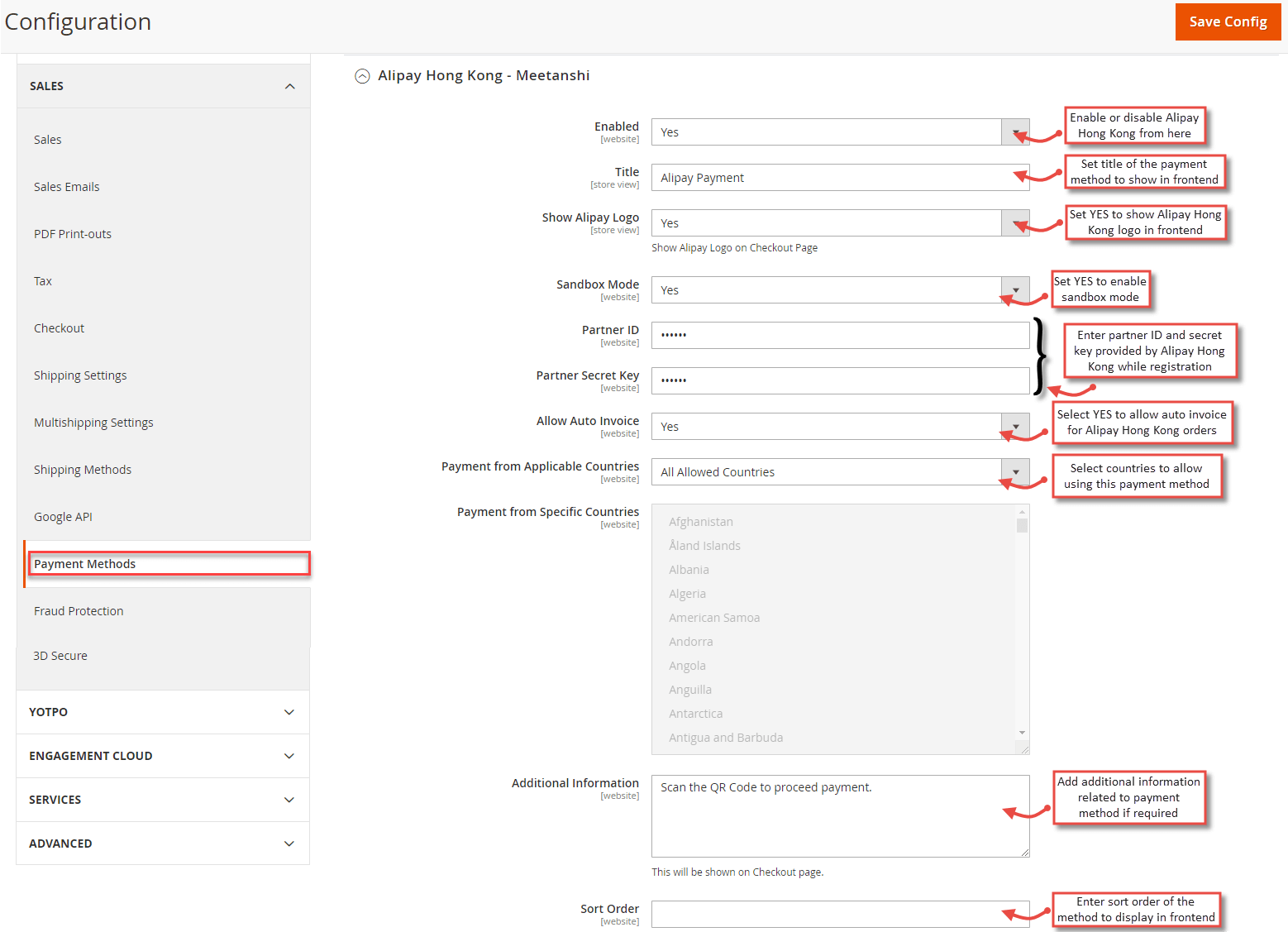

  1. Configuration
    For configuring the extension, login to Magento 2, move to Sales > Payments Method where you can find various settings to configure Alipay Hong Kong payment extension.
  • Enabled: Set “YES” to enable the payment method.
  • Title: Set the title for the payment method to be displayed in the frontend.
  • Show Alipay Logo: Select YES to show the Alipay logo along with the payment method in frontend.
  • Sandbox mode: Set “YES” to enable the sandbox mode for testing purpose.
  • Partner ID: Add partner ID received while registration with Alipay.
  • Partner Secret Key: Add partner secret key received while registration with Alipay.
  • Allow Auto Invoice: Select YES to allow auto invoice of the orders placed using this payment method.
  • Payment from Applicable Countries: Select countries to allow using this payment method.
  • Additional Information: You can add any information related to the payment method here to show in frontend.
  • Sort Order: Enter Sort Order for the payment method display.

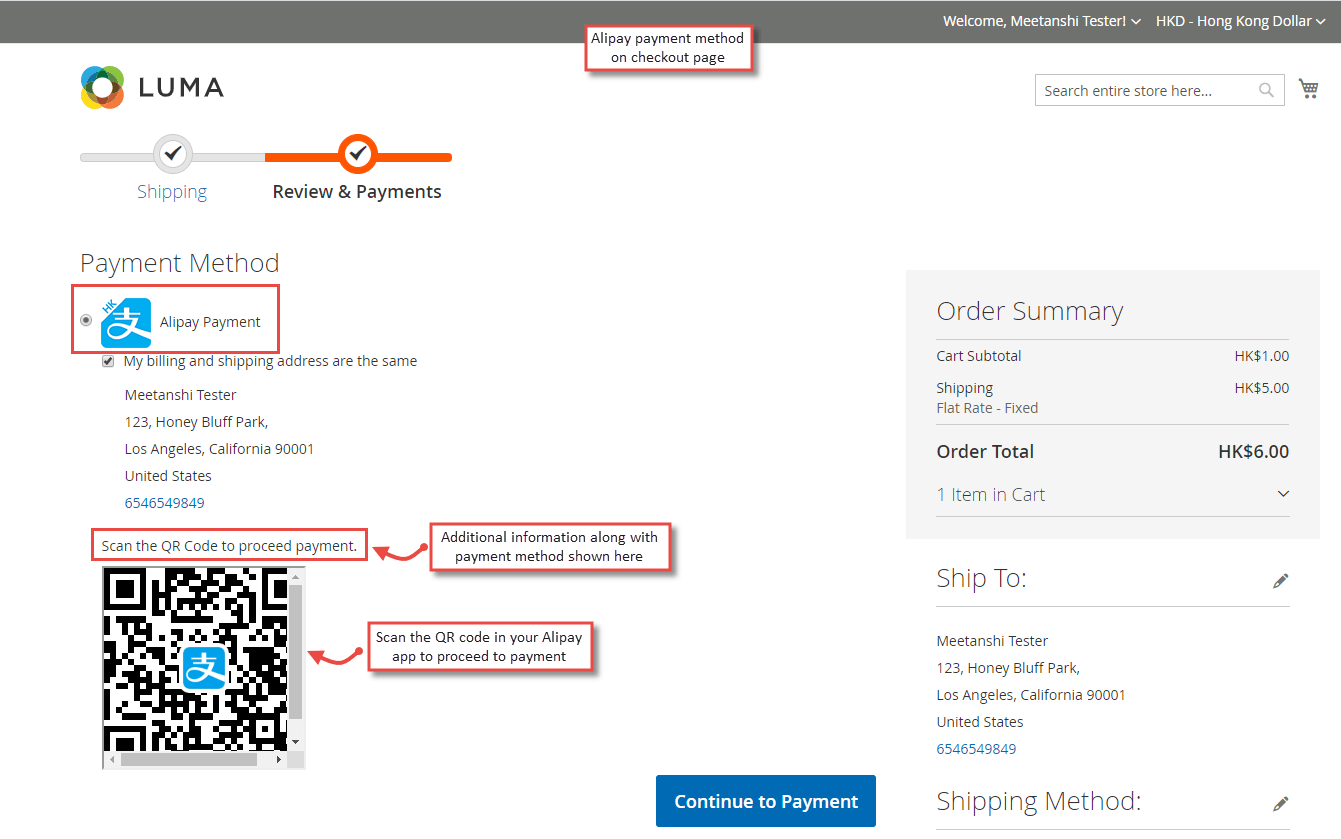

  1. Alipay Hong Kong Payment Method in Frontend
    Once the extension is configured properly, when customers add a product to the cart and proceed to checkout, the Alipay payment method can be seen enabled in frontend. Select the payment method and click “Continue to Payment” to get the QR code to scan using the Alipay app from the mobile and pay.

Note: Buyers can download the Alipay app from the below links:

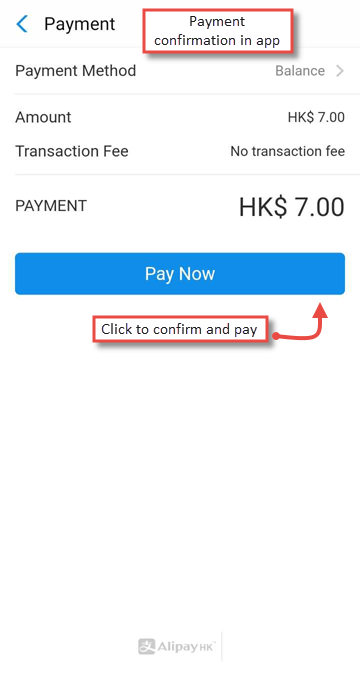

  • Payment Confirmation in App
    Once you can see the order amount in Alipay mobile app, confirm and click “Pay Now” to finish the payment.

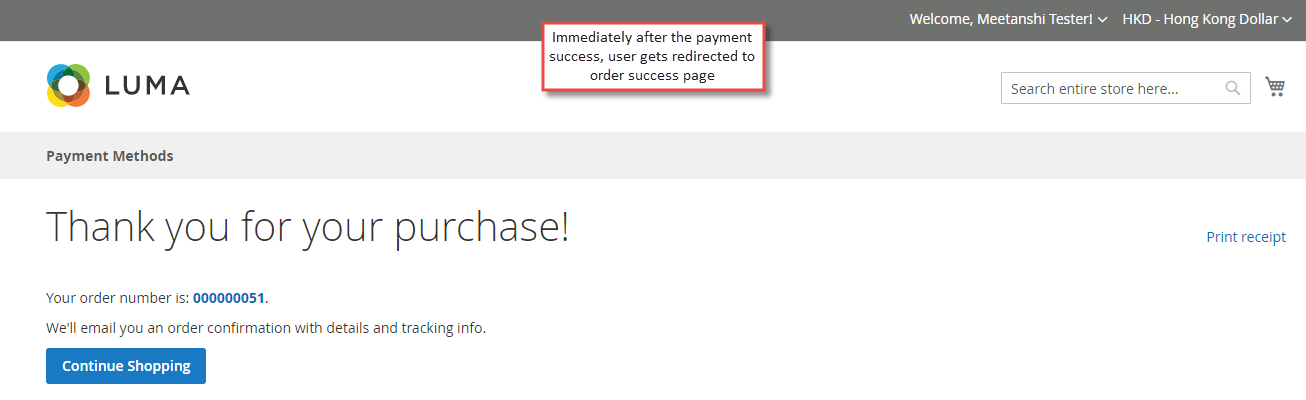

  • Order Success Page
    Once the payment is successful in app, the customer is automatically redirected to the order success page in the web.

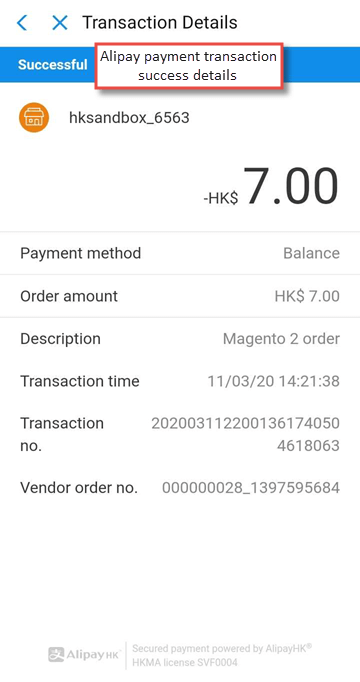

  • Alipay Payment Details in App
    Immediately after successful payment, customers can see transaction details in app.

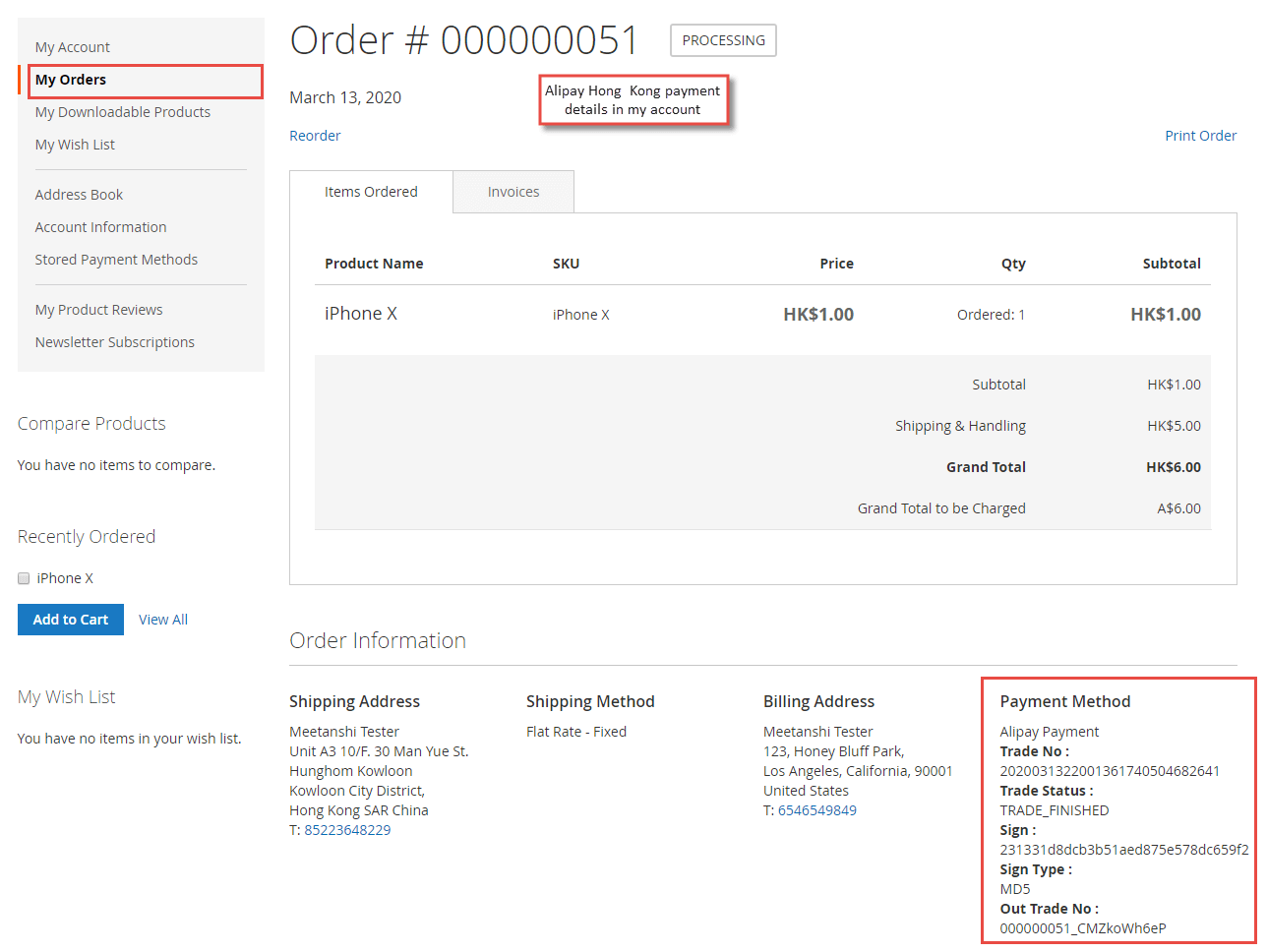

  • Alipay Payment Details in My Account
    After successful order placement, customers can see Alipay Hong Kong payment details in their My Account section under My Orders tab.

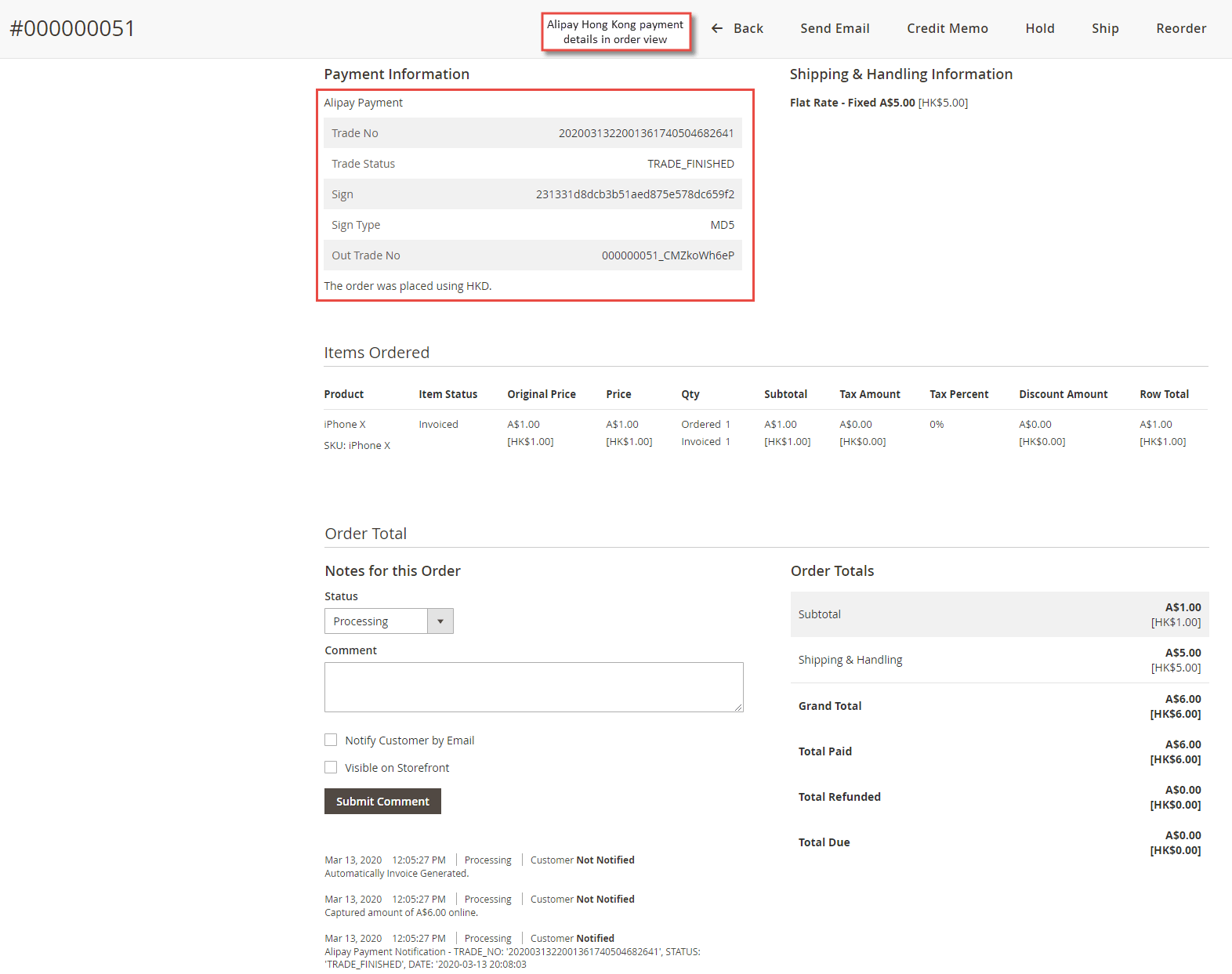

  1. Alipay Hong Kong Payment Details in the Backend
    Once the order is placed from the frontend using the Alipay payment method, the details of the transaction can be seen in order view backend.





  1. Alipay Hong Kong Order Placement from Mobile
    If customers are using mobile to place an order, they are not asked to scan QR code but they get redirected to the Alipay Hongkong page (after clicking “Continue to Pay” from checkout step) to login to Alipay account and pay.

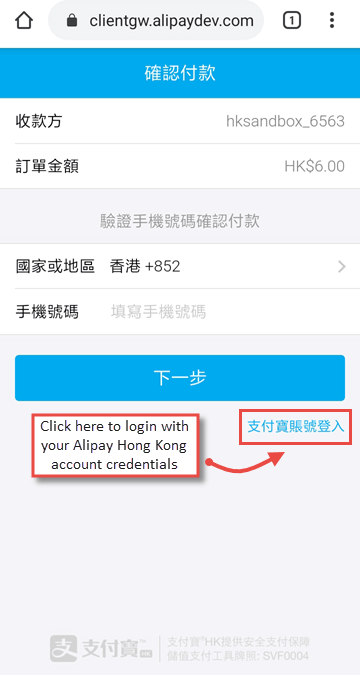

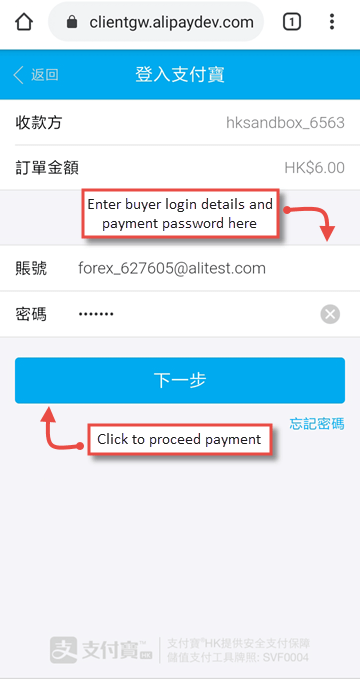

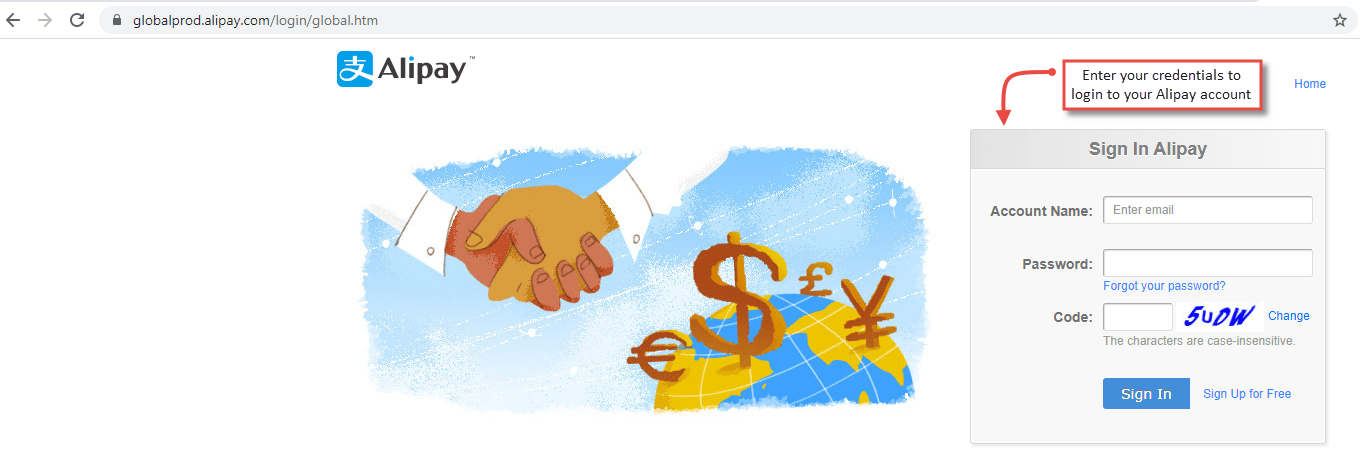

  • Login to Alipay Account
    The buyer has to enter credentials to log in to the Alipay account.

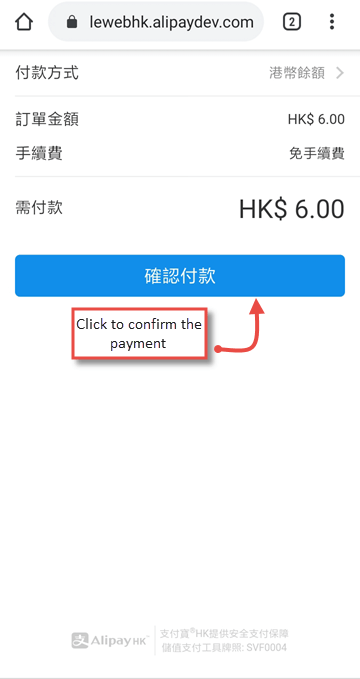

  • Payment Confirmation
    Immediately after login, the buyer can see the order amount to be paid. He clicks to confirm the payment.

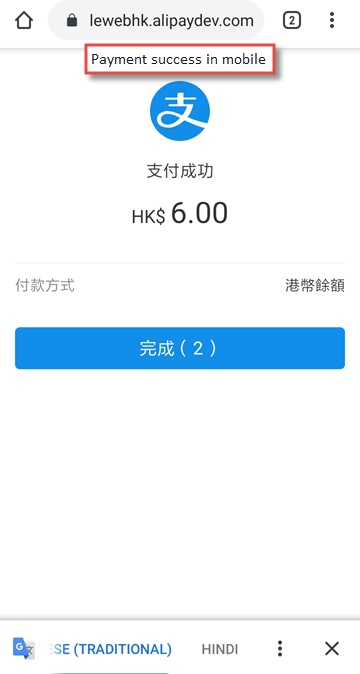

  • Payment Success
    Once the payment is confirmed and the amount is captured, the user can see payment success in mobile.

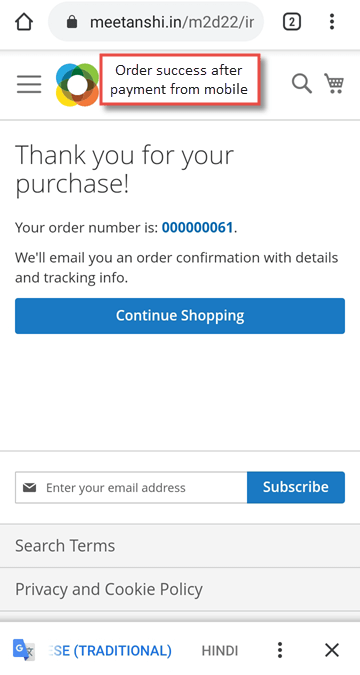

  • Redirection back to site on order success page
    Immediately after the payment is successful, the customer is auto-redirected to the order success page.
