Magento 2 Cybersource Secure Acceptance Hosted Checkout

Table of Content

  1. Extension Installation Guide
  2. Configuration
  3. Cybersource Secure Acceptance Hosted Checkout Payment Method in Frontend
  4. Cybersource Secure Acceptance Hosted Checkout Payment Details in Sales Order View Backend



  1. Extension Installation
  • Find the Composer name and version of the extension in the extension’s composer.json file.
  • Login to your SSH and run:
    • composer require meetanshi/magento2-Cybersource-secure-acceptance-hosted-checkout --ignore-platform-reqs
  • Enter your authentication keys. Your public key is your username; your private key is your password.
  • Wait for Composer to finish updating your project dependencies and make sure there aren’t any errors.
  • To verify that the extension installed properly, run the command:
    • php bin/magento module:status Meetanshi_WorldpayHp --ignore-platform-reqs
        • By default, the extension is probably disabled.
        • Enable the extension and clear static view files:
    • php bin/magento module:enable Meetanshi_WorldpayHp --clear-static-content
    • php bin/magento setup:upgrade
    • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
    • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
    • php bin/magento cache:flush



  1. Configuration

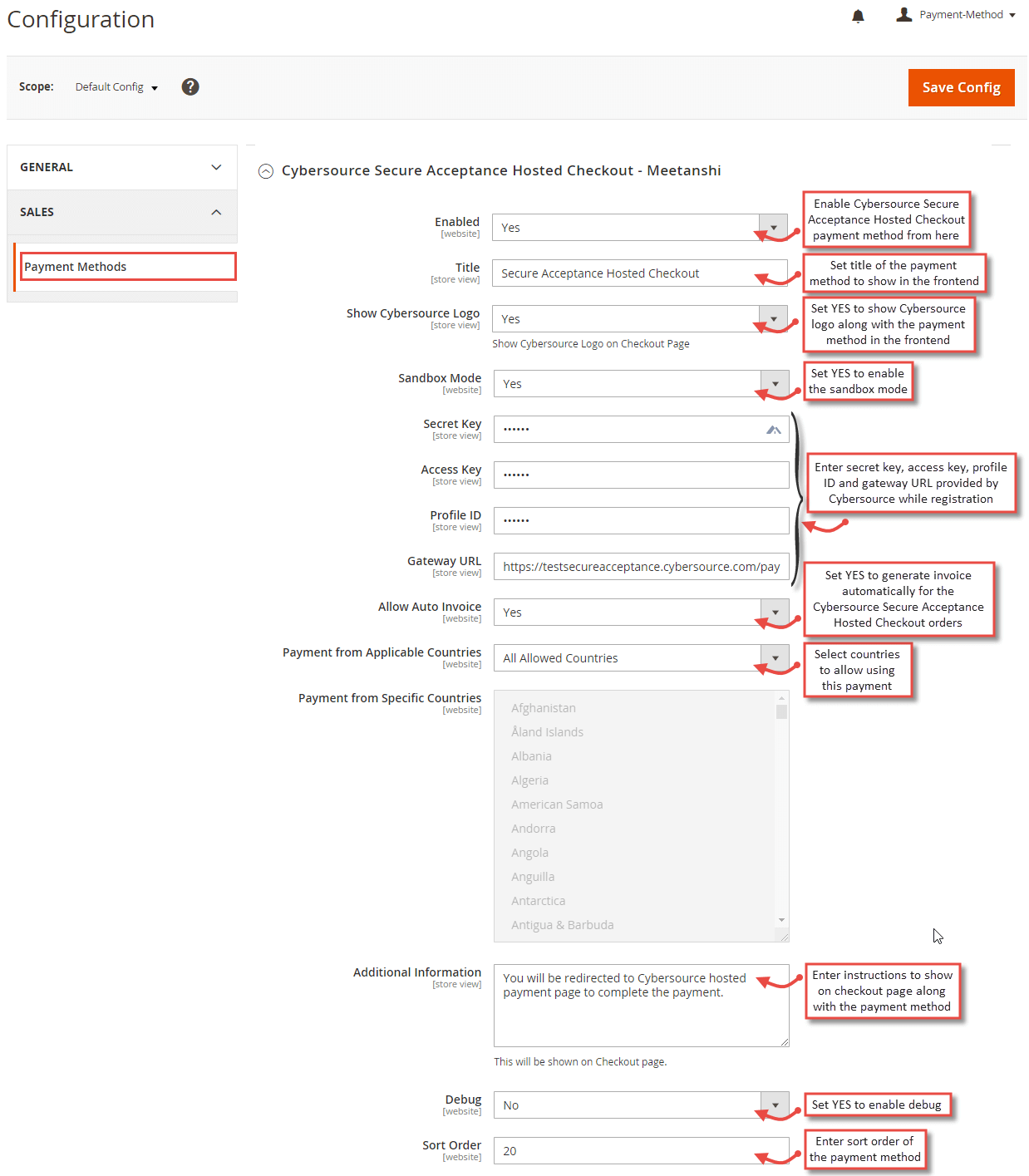

    To configure the extension, login to Magento 2, move to Stores à Configuration à Sales à Payment Methods à Cybersource Secure Acceptance Hosted Checkout – Meetanshi, where you can find various settings to enable the extension.
  • Enabled: Enable Cybersource Secure Acceptance Hosted Checkout payment method from here.
  • Title: Enter title for the Cybersource Secure Acceptance Hosted Checkout payment method to show in the frontend.
  • Show Cybersource Logo: Select YES to show Cybersource logo on the checkout page in frontend.
  • Sandbox Mode: Set YES to enable sandbox mode for the payment gateway.
  • Secret Key: Enter the secret key while registration with Cybersource Secure Acceptance Hosted Checkout.
  • Access Key: Enter the access key received while registration with Cybersource Secure Acceptance Hosted Checkout.
  • Profile ID: Enter the profile ID received while registration with Cybersource Secure Acceptance Hosted Checkout.

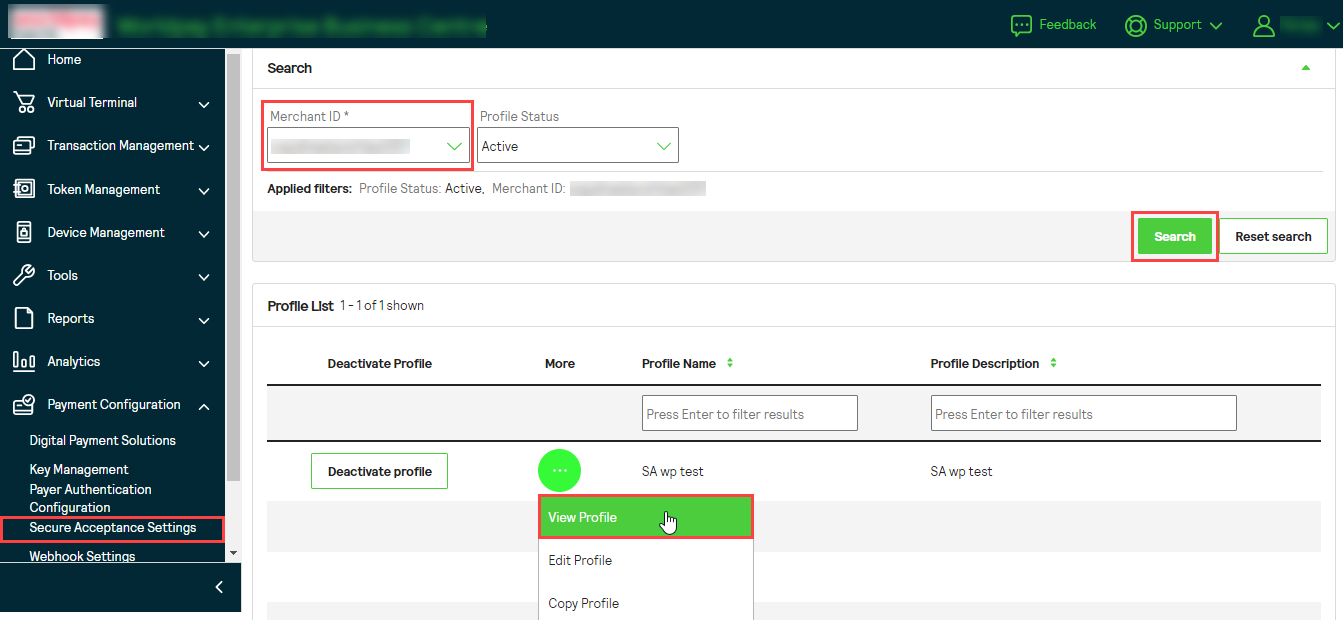

    • Go to https://Cybersource.ubc.cybersource.com/ebc2/, login with your credentials. Move to Payment Configuration > Secure Acceptance Settings. Select the merchant ID from the dropdown and search for the same. Under the profile list, click “View Profile” for the appropriate profile.

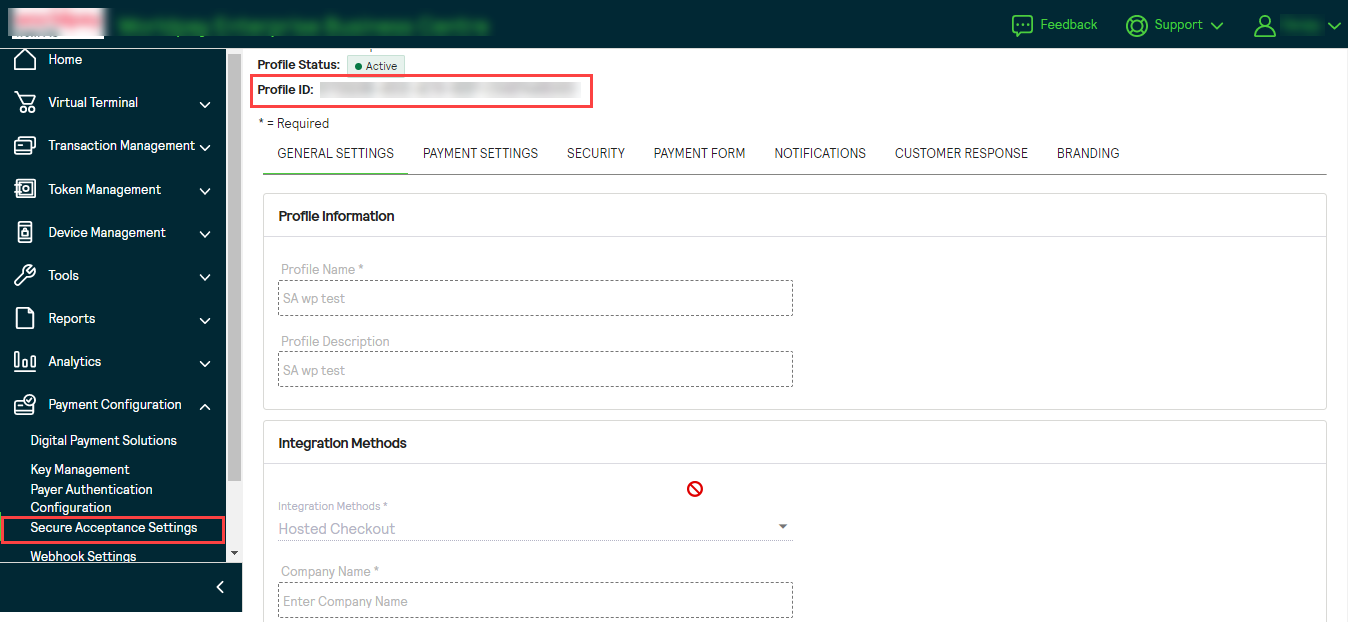

    • On click of “View Profile”, you can see profile ID. Copy it and paste in the relevant field.

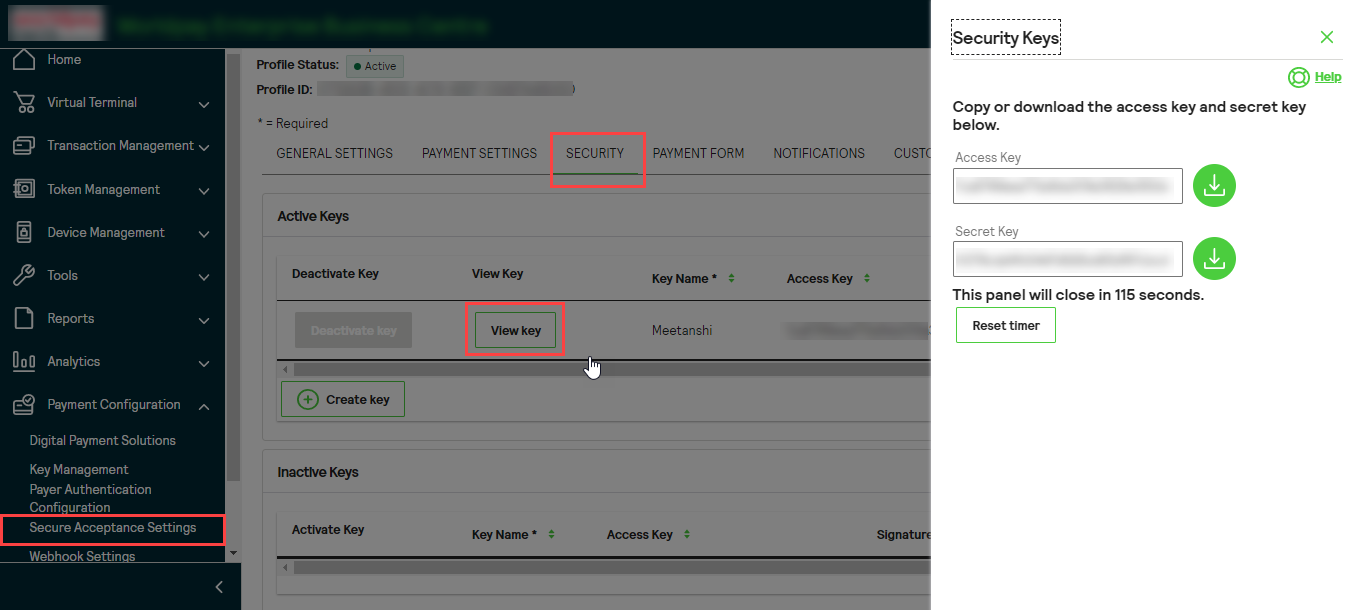

    • Now move to “Security” tab and under the Active Keys, click on View Key. A sidebar with both the access key and secret key will get opened. Copy both the access key and secret key, and paste them into relevant fields.



  • Gateway URL: Enter the gateway URL for Cybersource Secure Acceptance Hosted Checkout.
  • Allow Auto Invoice: Set YES to auto generate invoice for the orders placed through Cybersource Secure Acceptance Hosted Checkout payment method.
  • Payment from Applicable Countries: Select all or selected countries to allow payments using Cybersource Secure Acceptance Hosted Checkout.
  • Payment from Specific Countries: If you have set specific countries from the above option, select the countries to allow payments using Cybersource Secure Acceptance Hosted Checkout.
  • Additional Information: Enter additional information to show on the checkout page in the frontend.
  • Debug: Set YES to enable debug.
  • Sort Order: Enter sort order of the Cybersource Secure Acceptance Hosted Checkout payment method.



  1. Cybersource Secure Acceptance Hosted Checkout Payment Method in Frontend

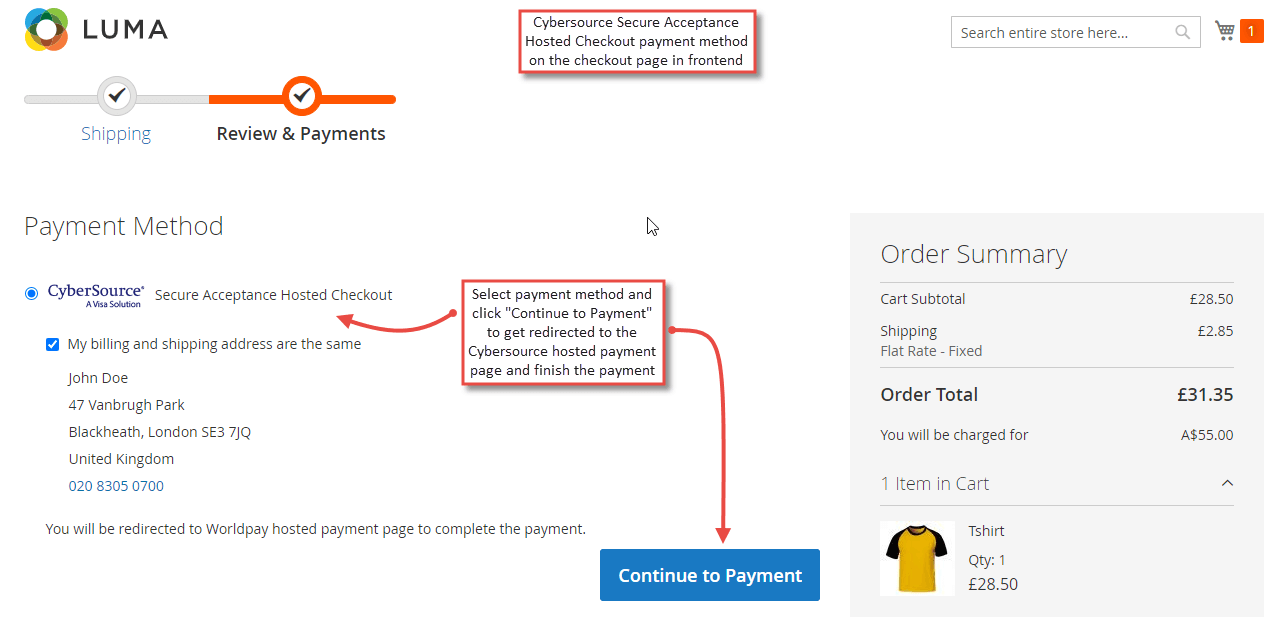

    Once the extension is configured, the Cybersource Secure Acceptance Hosted Checkout payment method can be seen enabled in the frontend. Simply add products to cart and go to the checkout, select the payment method, click “Continue to Payment” button to get redirected to the Cybersource hosted payment page to complete the payment and place order successfully.

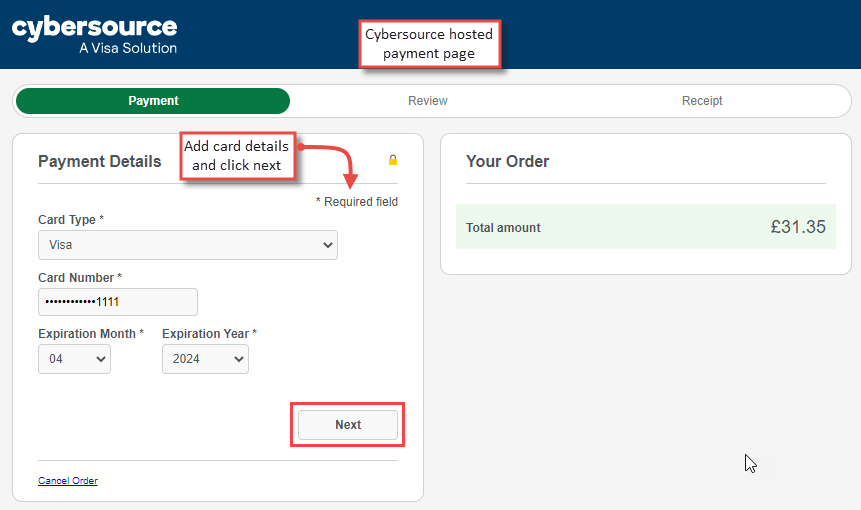

  • Redirection to Hosted Payment Page
    On the Cybersource hosted payment page, select the payment method, add card details and click Next to proceed to review the payment.

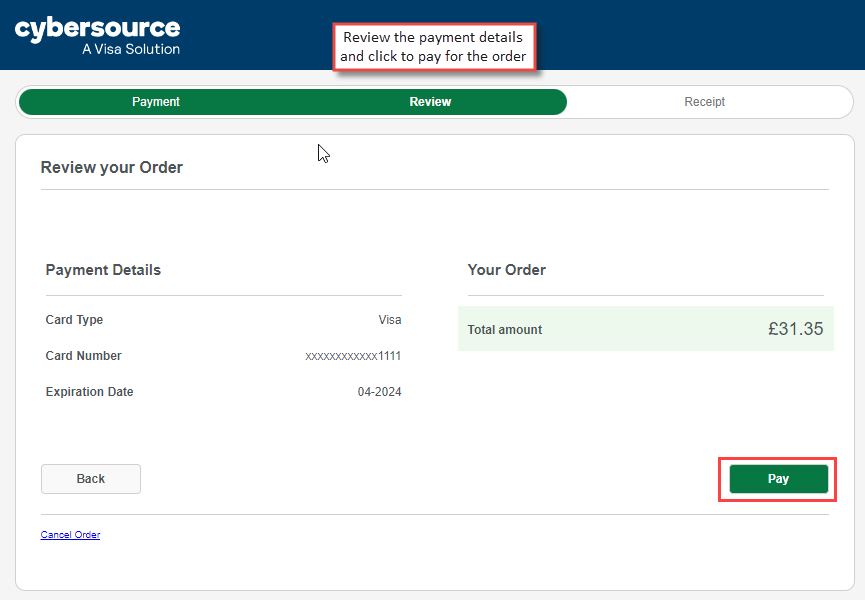

  • Review Payment Details
    Review payment details and click “Pay” to pay for the order.





  • Cybersource Secure Acceptance Hosted Checkout Payment Details in Customer’s My Account Section
    Immediately after the order is placed, the Cybersource Secure Acceptance Hosted Checkout payment details can be seen in My Orders > Order View under the customer’s “My Account” section.

  1. Cybersource Secure Acceptance Hosted Checkout Payment Details in Sales Order View Backend

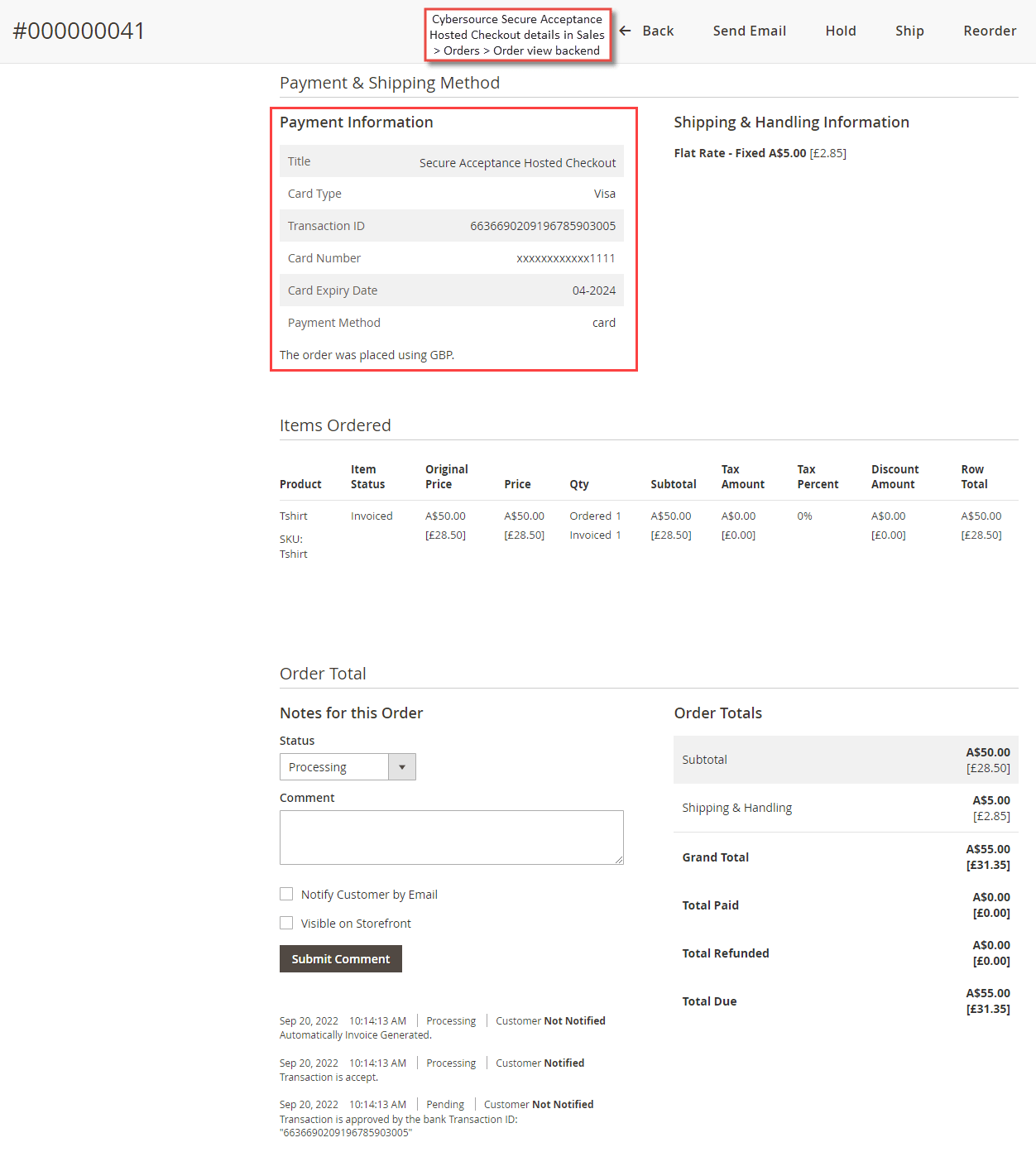

    Apart from the customer’s My Account section, the admin can also see Cybersource Secure Acceptance Hosted Checkout payment details from the Sales à Orders à Order View section in the backend.
