Magento 2 Mobile Login

Home > Magento Extension User Guides > Magento 2 Mobile Login



Magento 2 Mobile Login facilitates customers to register and login using mobile number along with OTP verification in Magento 2.



Table of Content

  1. Extension Installation
  2. Twilio Registration
  3. Msg91 Registration
  4. Configuration
  5. API Settings
  6. API Testing
  7. OTP Custom SMS Settings
  8. Synchronize Telephone Number with Mobile Number
  9. Form Title Texts
  10. Form Layout Settings
  11. Country Flag Settings
  12. Mobile Login With OTP in Frontend
  13. SMS Logs



  1. Extension Installation
  • For Magento Marketplace Customers
  • Find the Composer name and version of the extension in the extension’s composer.json file.
  • Login to your SSH and run:
    • composer require meetanshi/magento-2-mobile-login --ignore-platform-reqs
    • composer require twilio/sdk --ignore-platform-reqs
  • Enter your authentication keys. Your public key is your username; your private key is your password.
  • Wait for Composer to finish updating your project dependencies and make sure there aren’t any errors.
  • To verify that the extension installed properly, run the command:
    • php bin/magento module:status Meetanshi_Mobilelogin --ignore-platform-reqs
  • By default, the extension is probably disabled.
  • Enable the extension and clear static view files:
    • php bin/magento module:enable Meetanshi_Mobilelogin --clear-static-content
    • php bin/magento setup:upgrade
    • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
    • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
    • php bin/magento cache:flush
  • For Meetanshi Customers
  • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
  • Login to your SSH and run below commands step by step:
      • composer require twilio/sdk
  • php bin/magento setup:upgrade
  • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
  • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
  • php bin/magento cache:flush



Note: Don’t forget to install Twilio library even if you are not using Twilio SMS gateway for our extension.



  1. Twilio Registration
    If you are going to use Twilio as an SMS gateway to send OTP, you need to register with the Twilio to get Account SID, Auth Token and Twilio Phone Number.

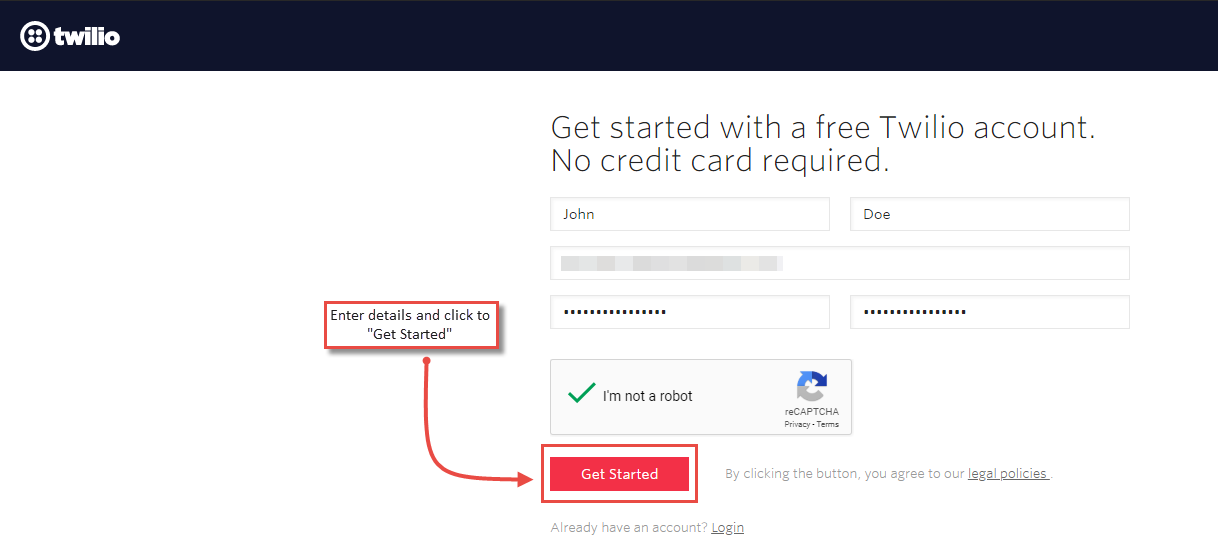

  • First of all, Sign Up for the Twilio account. Add the details and click to get started.

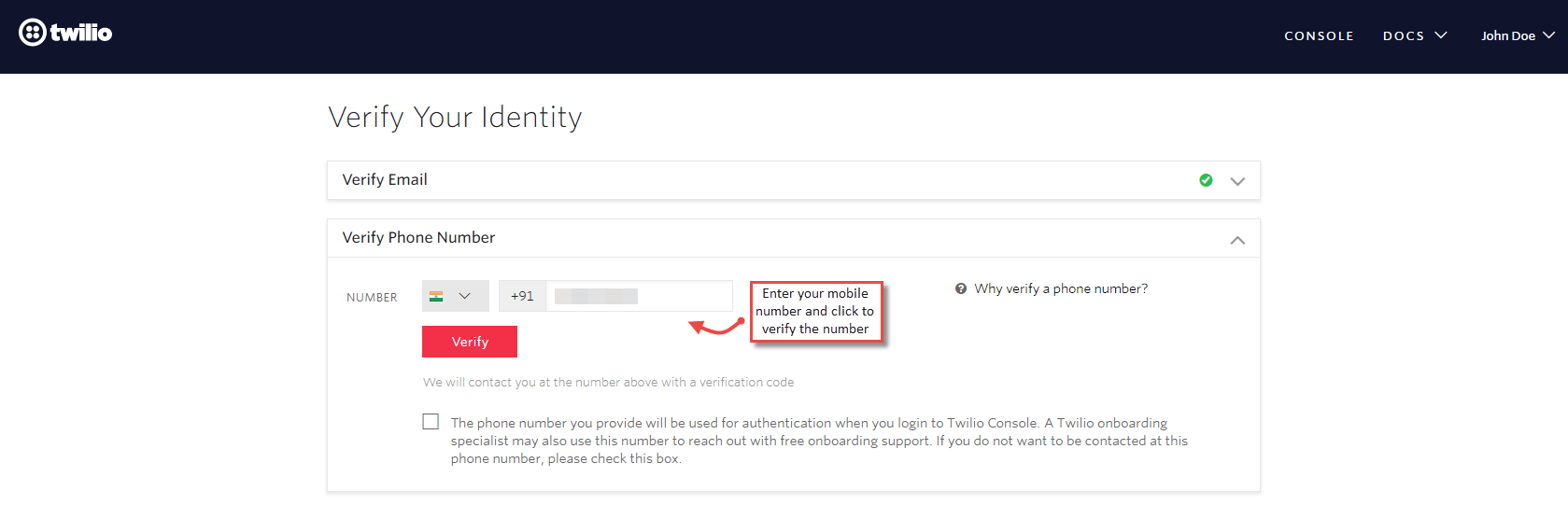

  • After the Email verification, enter your mobile number and click to “Verify”.

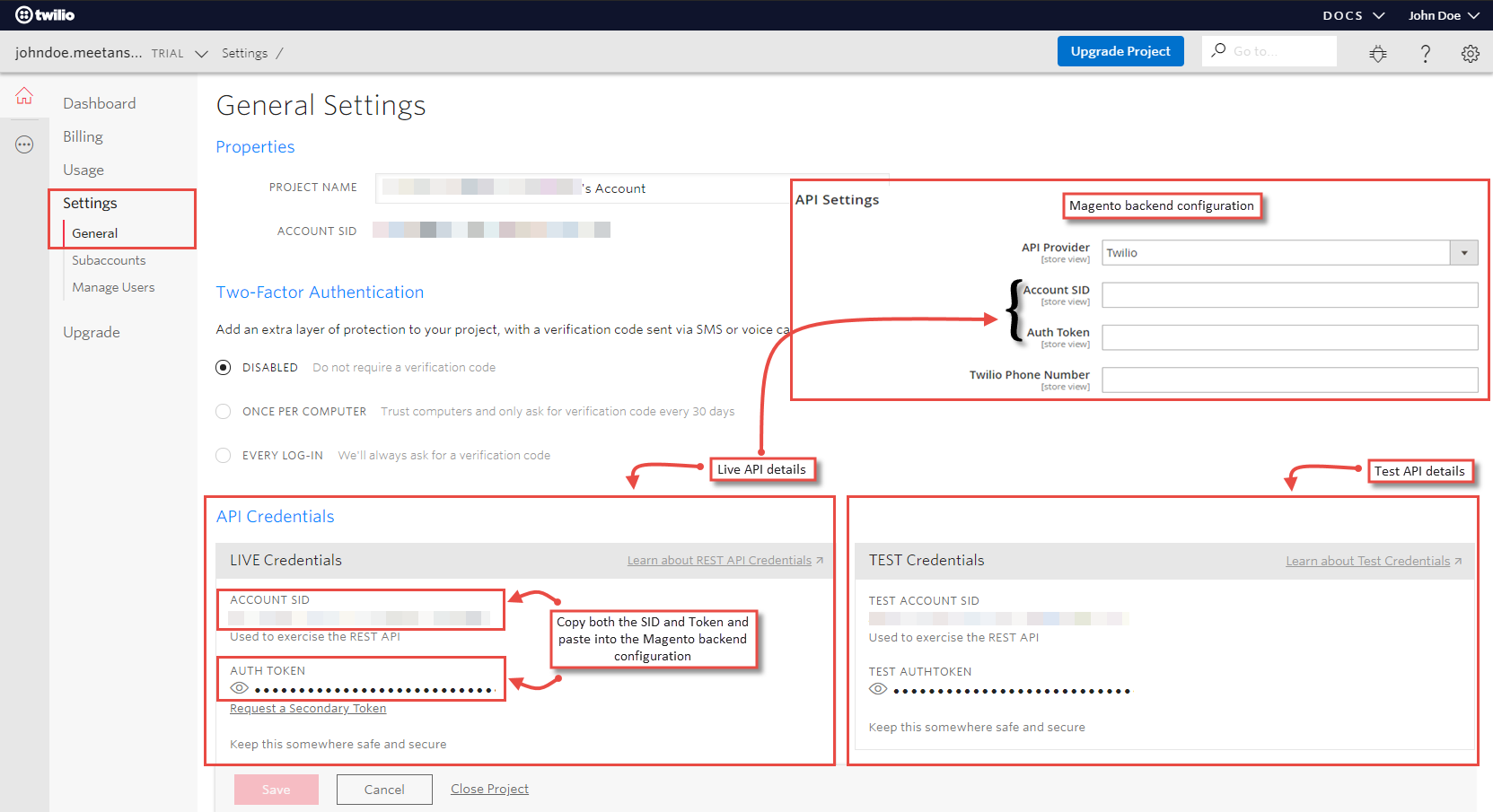

  • Once you click “Verify”, you will get an OTP on the added mobile number. Enter the OTP and verify the mobile number. Now move to Settings > General where you can see API details both for live and testing. Copy the Account SID and Auth Token to use them in Magento backend configuration for Twilio account.

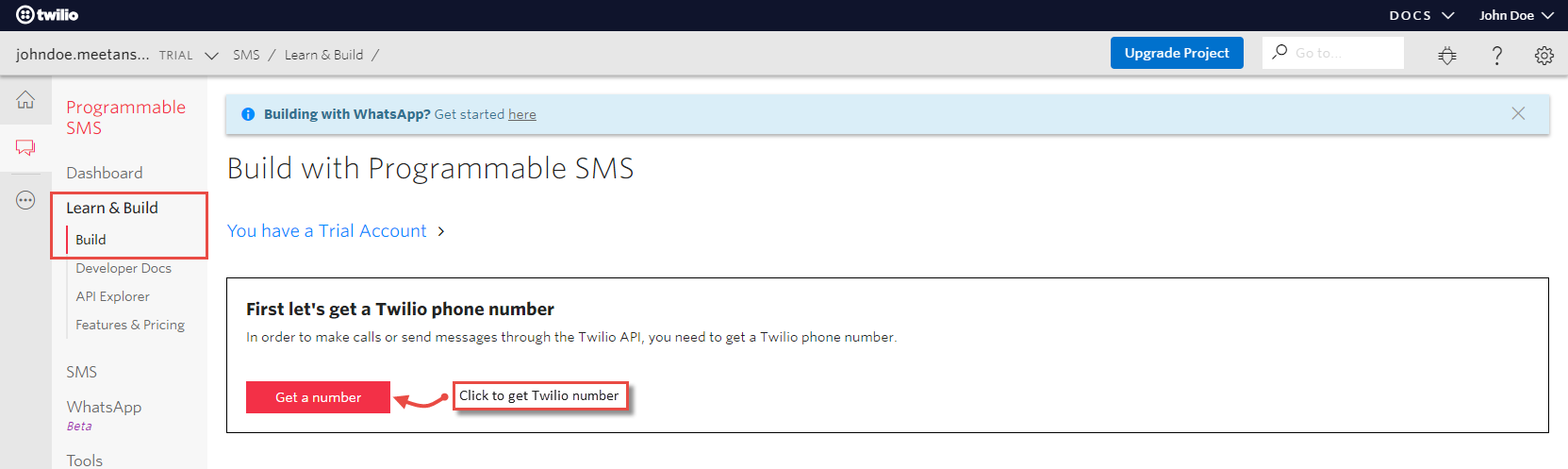

  • Now, click three dots from the left sidebar, go to Programmable SMS and click Build under the Learn and Build option. From here, you can get Twilio phone number to use for sending the SMSs. Click on the “Get a number” button.






  • You will get a number to choose. Click “Choose This Number”.

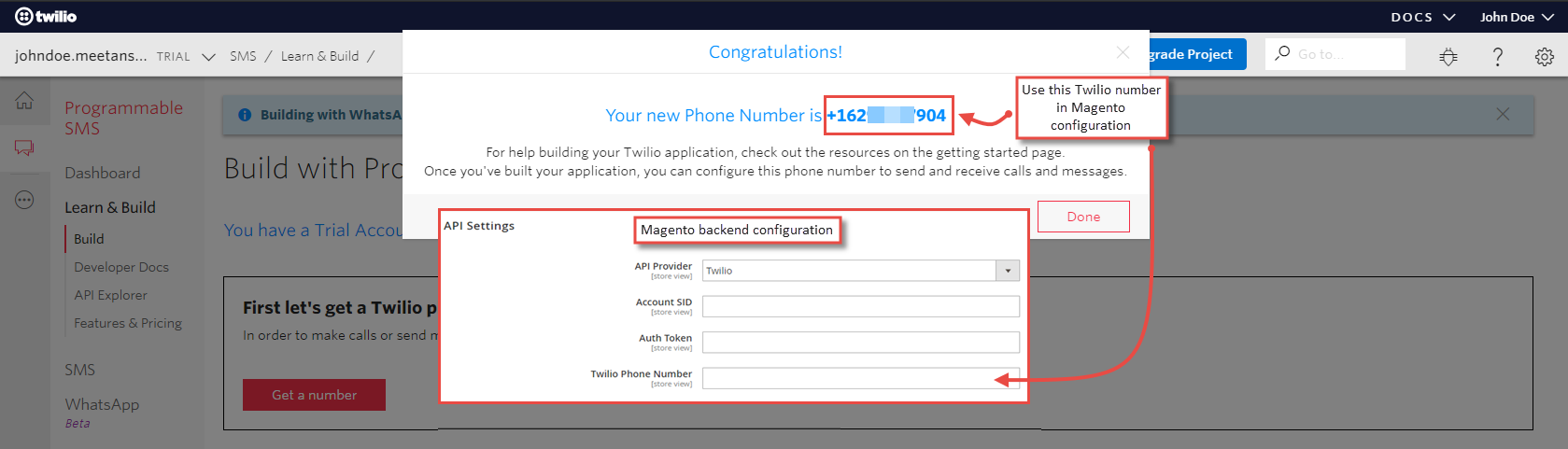

  • Once you click the button, you will get a Twilio phone number. Copy this number and set it in the Magento backend configuration for Twilio account.





  1. Msg91 Registration

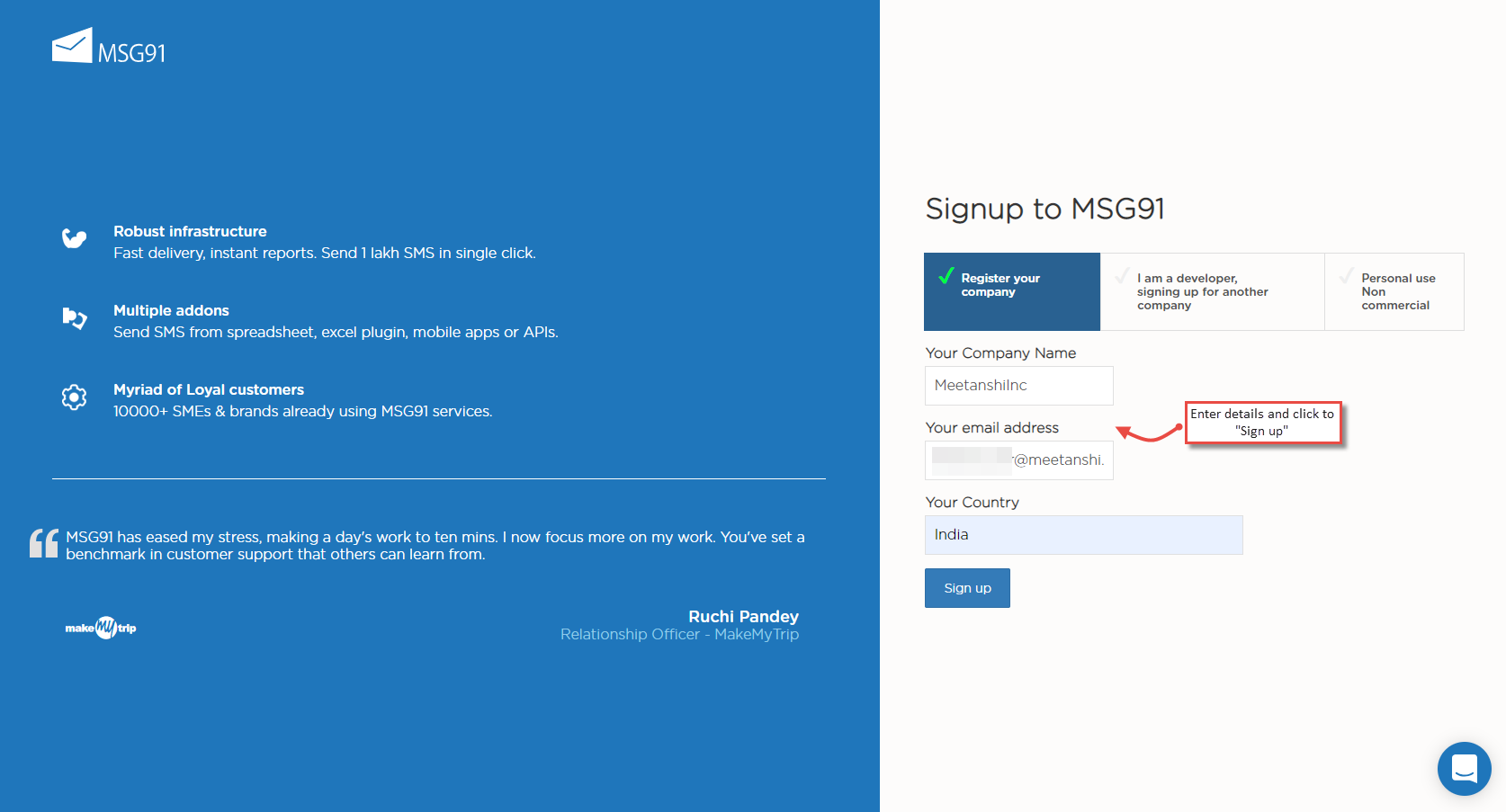

    The extension allows configuration of the Msg91 SMS gateway to send OTP for the mobile verification. If you choose to use Msg91 SMS gateway integration, follow the steps below to get sender ID and API key.

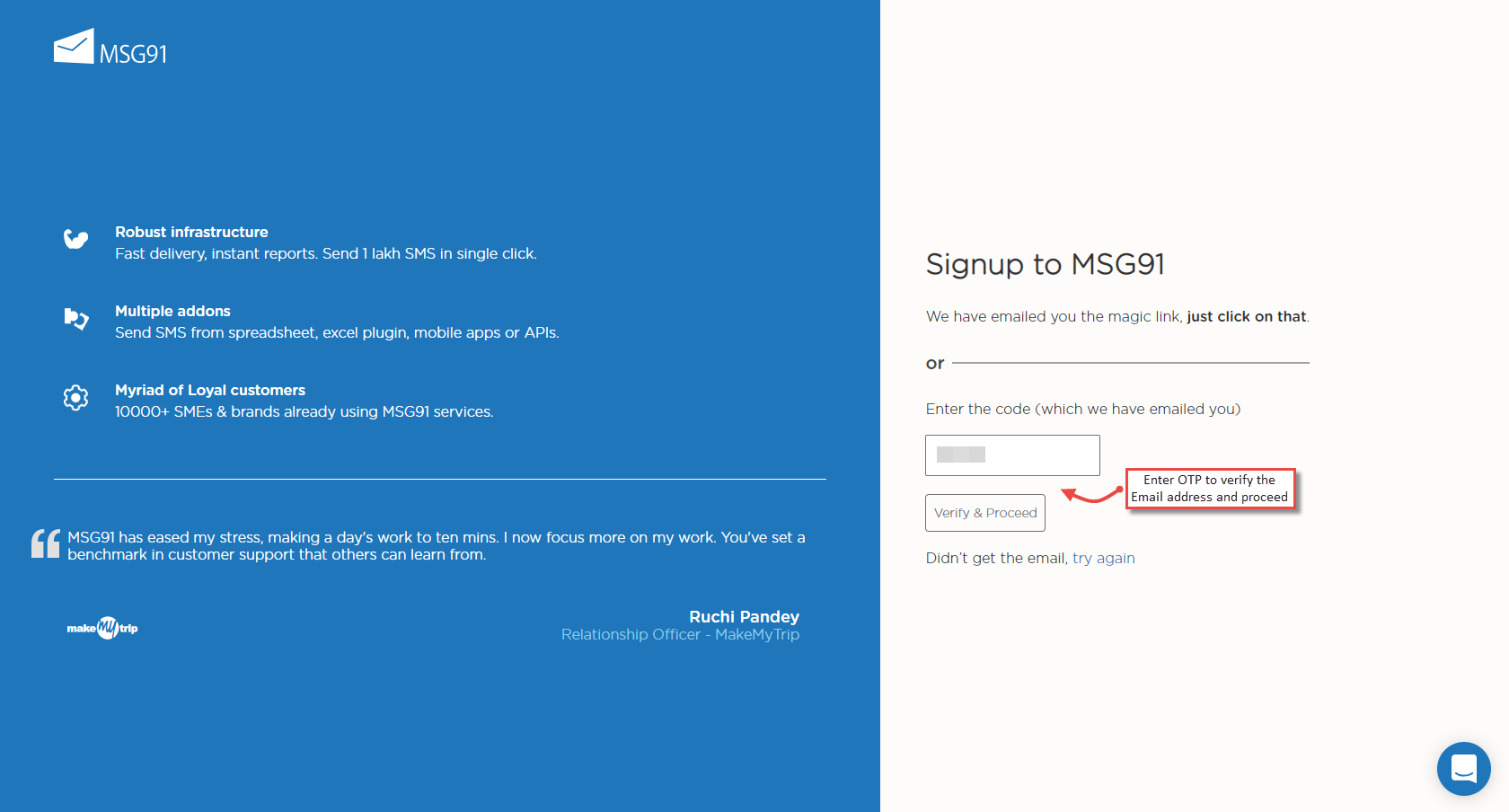

  • You will get and code or a magic link in the Email to verify the Email address.

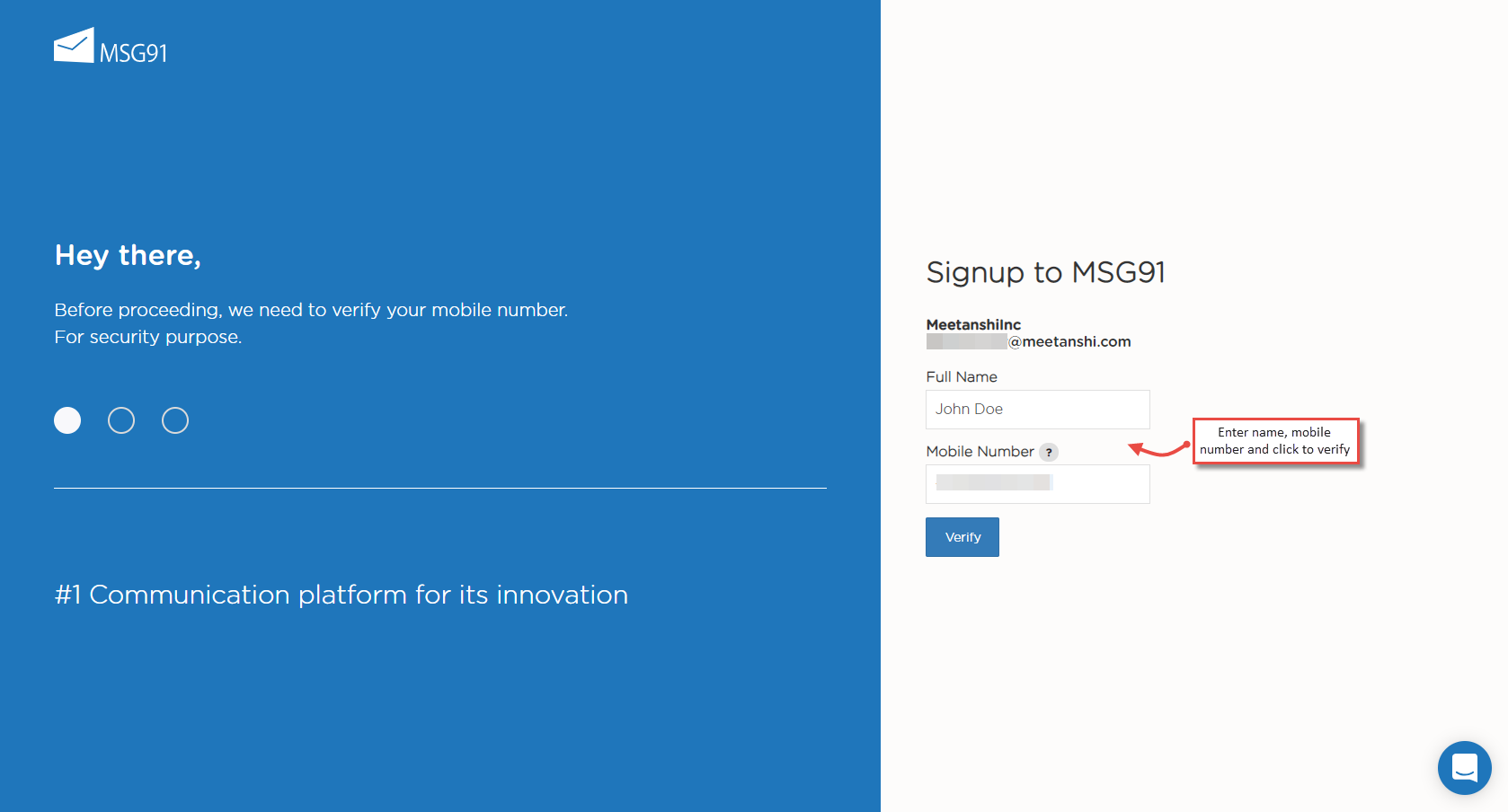

  • You will be asked to enter the mobile number for verification.

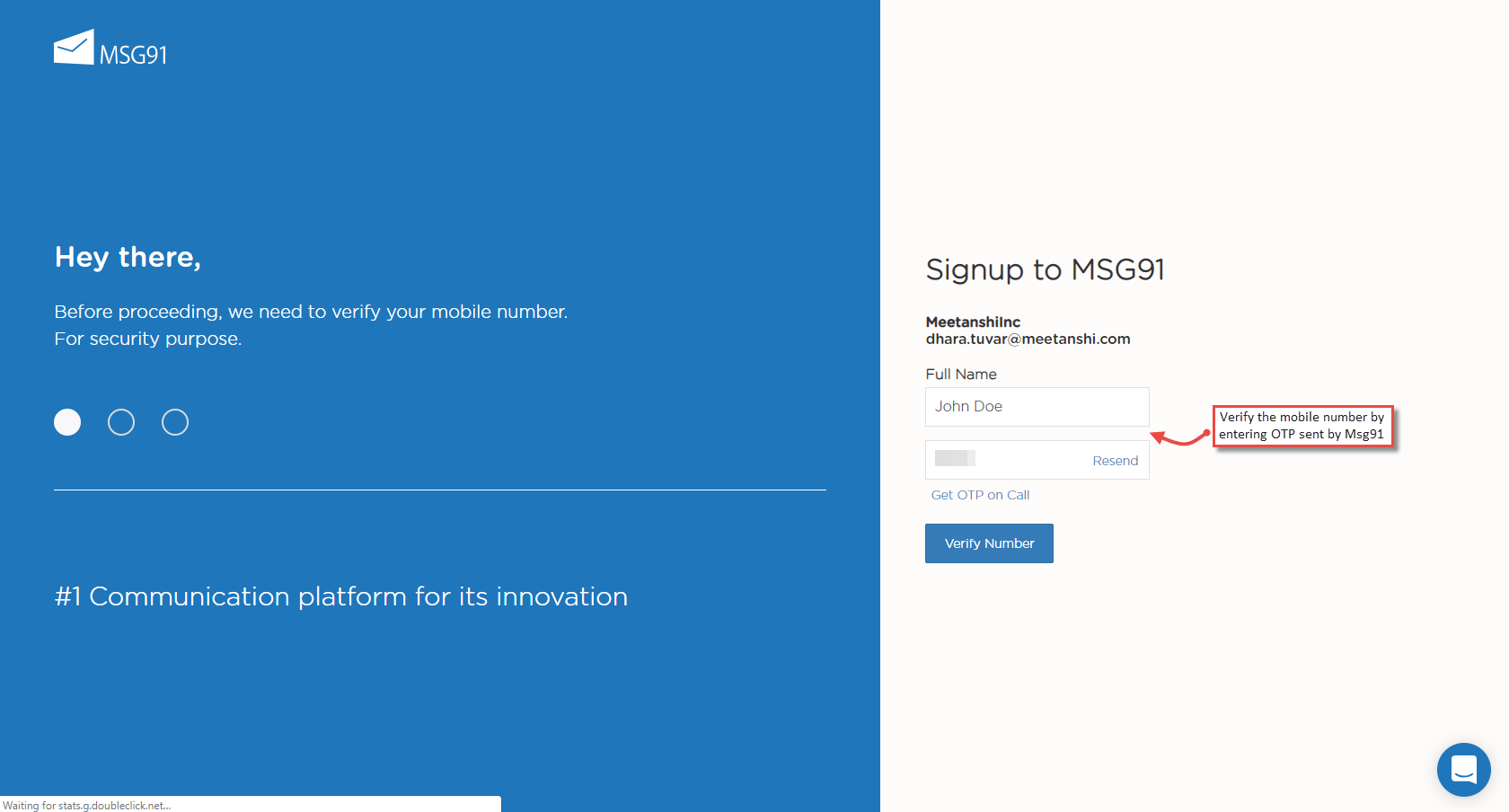

  • Enter the OTP to verify the mobile number and you will be registered successfully. Login with the credentials.

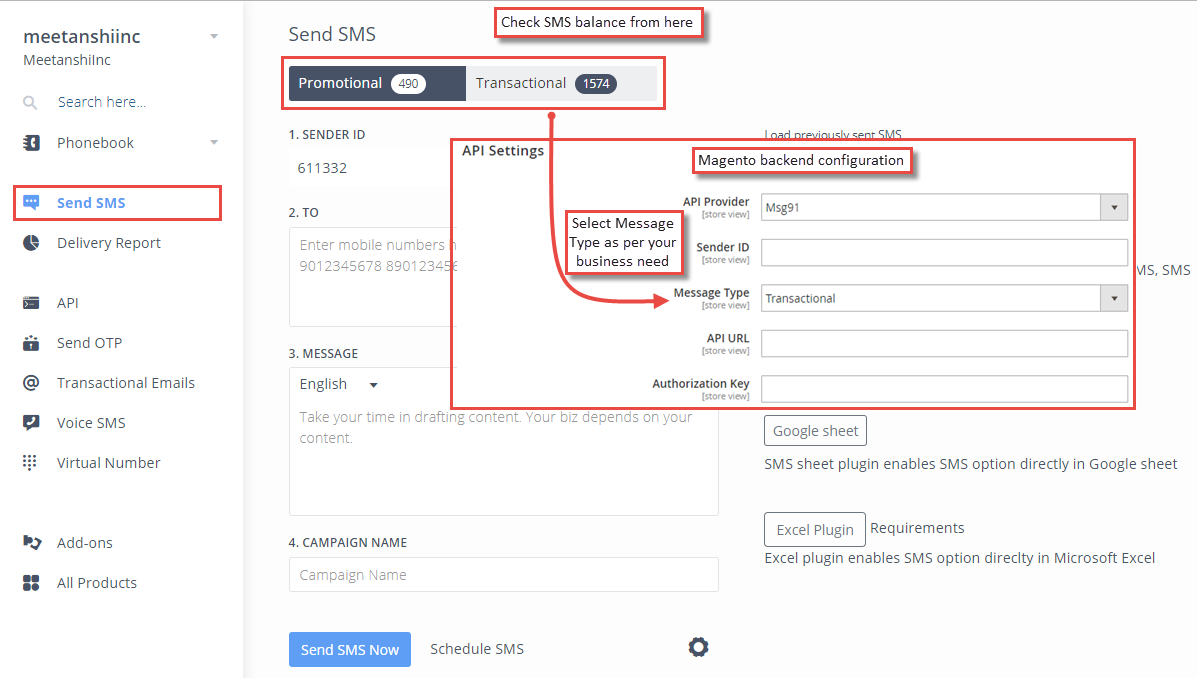

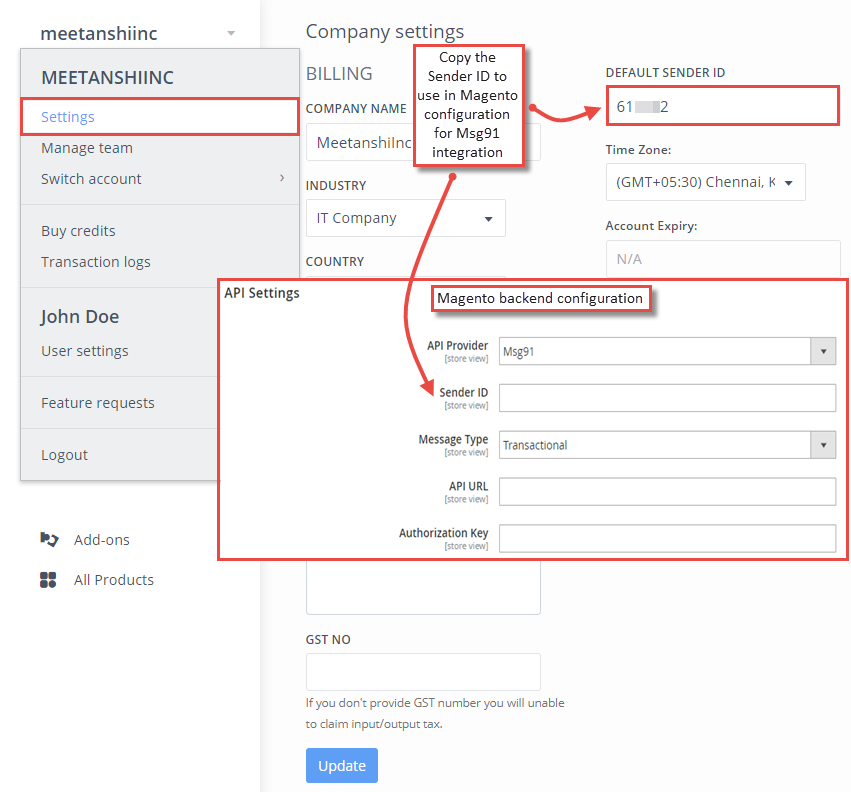

  • Under the settings, you can find the Sender ID which you need to copy and paste in the Magento configuration.

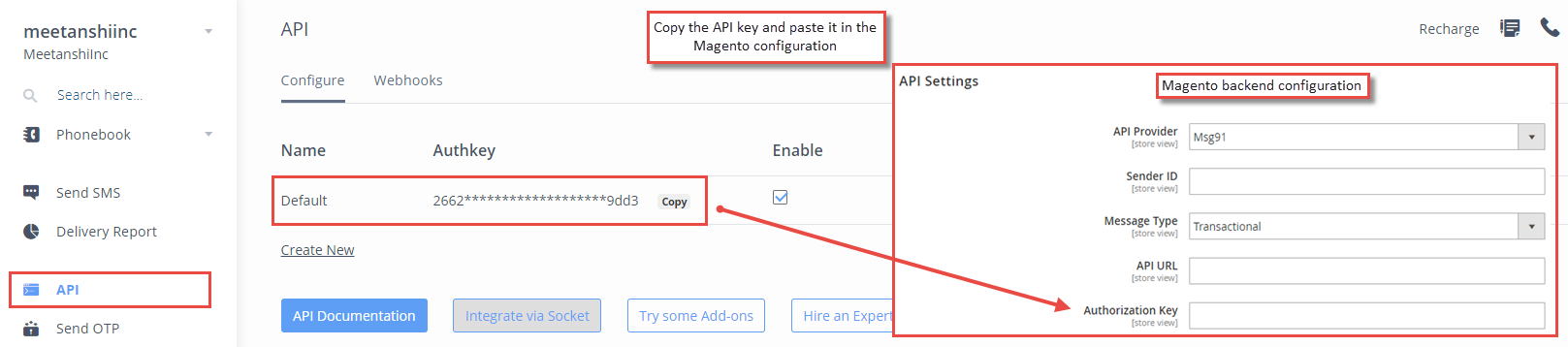

  • Now move to API, where you can find the API key for the Magento configuration.





  • You can find the Message type under the Send SMS tab. Select the SMS type in Msg91 configuration in Magento as per your requirement.




Note: If you are an Indian user of our Magento 2 Mobile Login extension with Msg91 API, don’t forget to follow DLT registration process and get your DLT templates approved for each SMS. Once you get the DLT template ID, enter the same in the respective field in Magento 2 extension configuration.

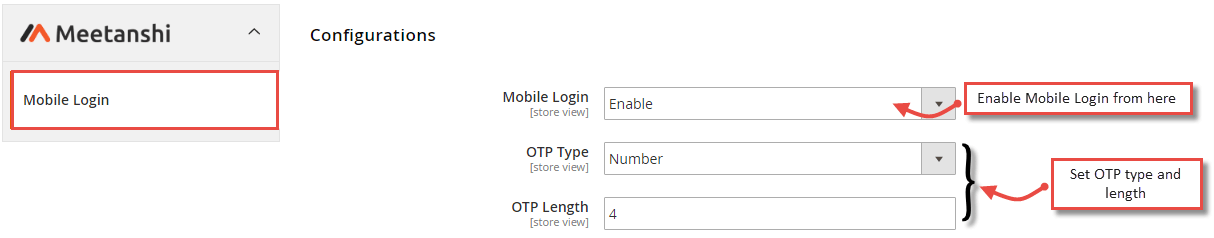

  1. Configuration
    For configuring the extension, login to Magento 2, move to Stores > Configuration > Mobile Login where you can find various settings to enable the extension.
  • Mobile Login: Enable the Mobile Login extension.
  • OTP Type: Set the OTP type from the drop-down menu.
  • OTP Length: Set the OTP length.

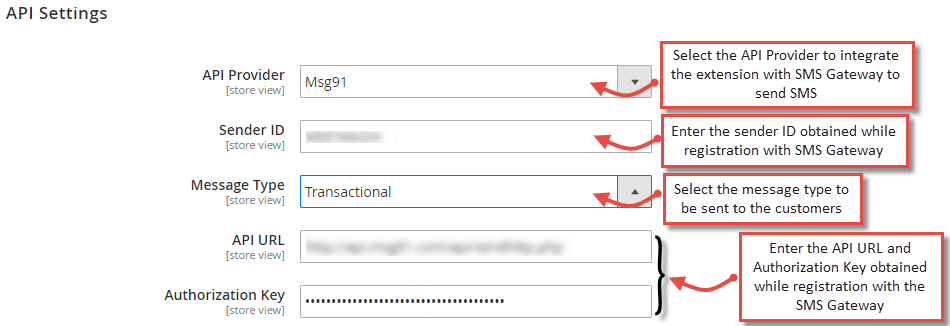

  1. API Settings
    Configure the API settings using the details received while registering with the SMS gateway:




For Other SMS API:

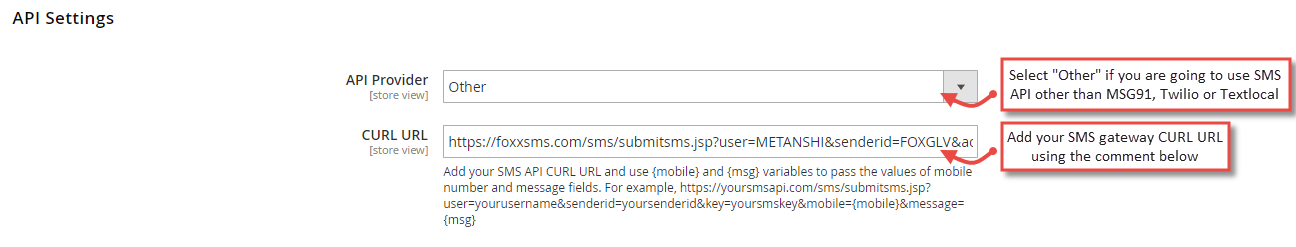

If you are going to use custom SMS API other than Msg91, Twilio or Textlocal, you have to add your CURL URL as below:












Format: https://yoursmsapi.com/sms/submitsms.jsp?user=yourusername&senderid=yoursenderid&key=yoursmskey&mobile={mobile}&message={msg}

Sample CURL URL:https://foxxsms.com/sms/submitsms.jsp?user=METANSHI&senderid=FOXGLV&accusage=6&key=587e05afbcXX&mobile={mobile}&message={msg}

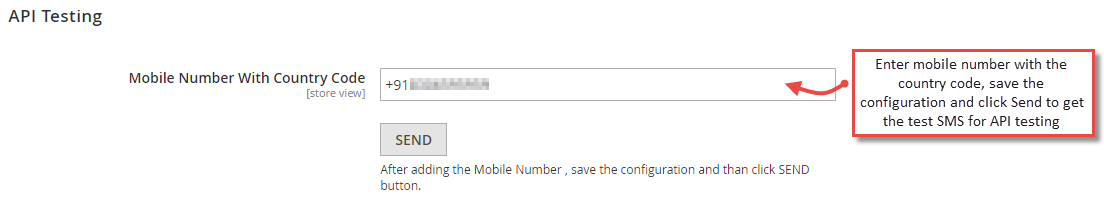

  1. API Testing
    The extension facilitates to test the API connection after the API Settings are configured. Simply add the mobile number with the country code, save the configuration and then click on the “Send” button to get the test SMS.

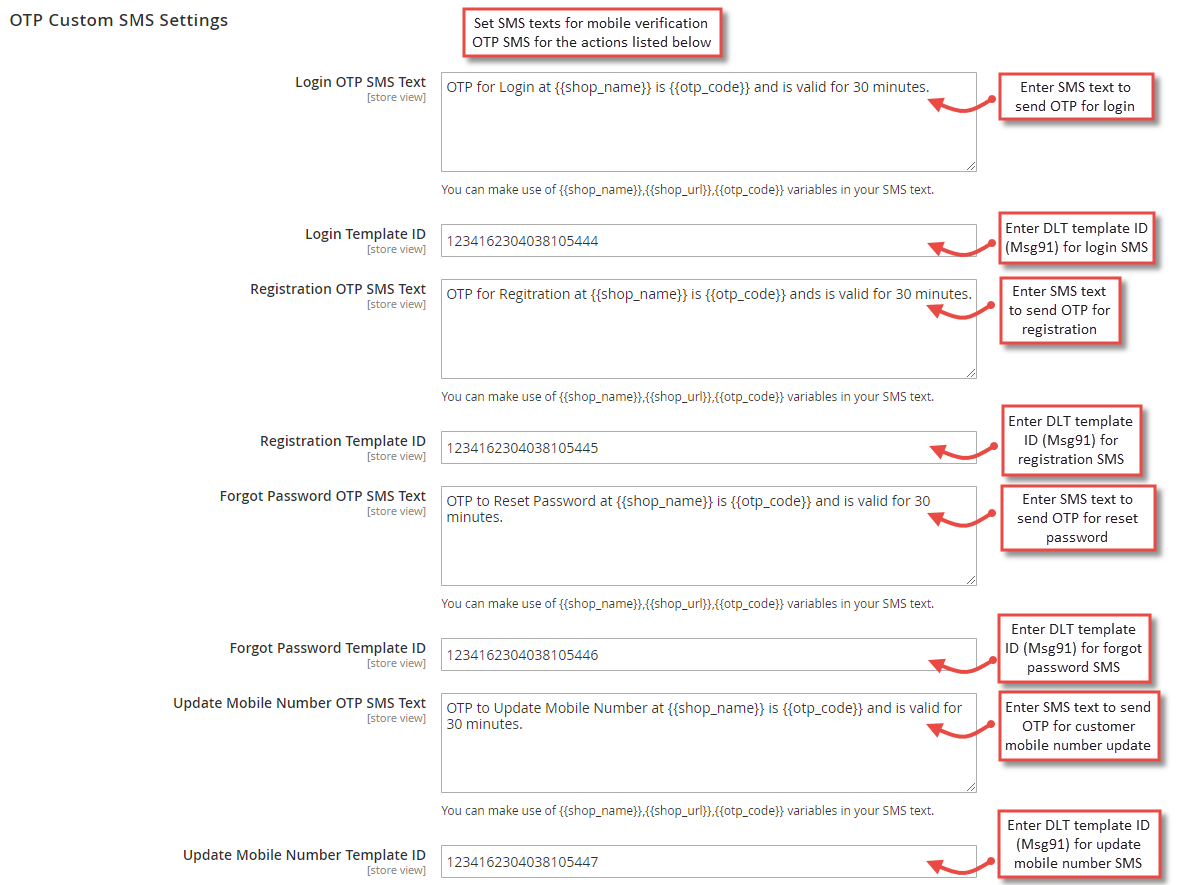

  • OTP Custom SMS Settings
    Set the following OTP SMS texts to send OTP SMS for the verification of mobile number on various events.
  • Login OTP SMS Text: Enter SMS text to send OTP for login.
  • Registration OTP SMS Text: Enter SMS text to send OTP for registration.
  • Forgot Password OTP SMS Text: Enter SMS text to send OTP for reset password.
  • Update Mobile Number OTP SMS Text: Enter SMS text to send OTP for customer mobile number update.




Note: If you are an Indian user of our Magento 2 Mobile Login extension with Msg91 API, don’t forget to follow DLT registration process and get your DLT templates approved for each SMS above. Once you get the DLT template ID for each, enter the same here in the respective fields as shown in the screenshot above.

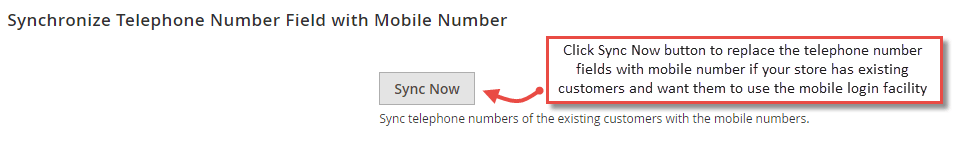

  1. Synchronize Telephone Number with Mobile Number
    If your store already has existing customers and you don’t want them to sign up again to use mobile login facility, the extension avails synchronization facility using which the telephone numbers added while registration will be synched as mobile number and your existing customers can use mobile login facility without signing up again. Click on Sync Now button to sync telephone number fields with mobile numbers.

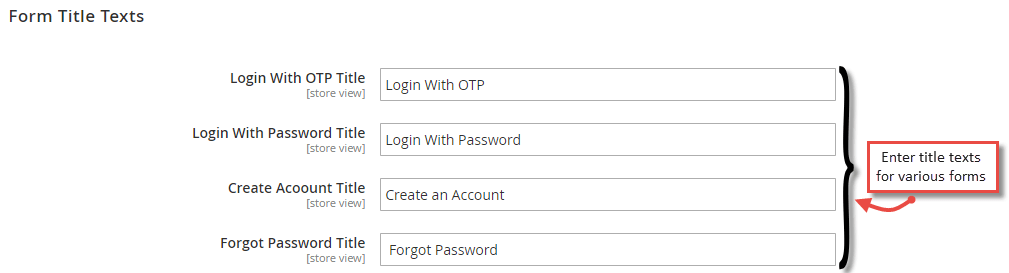

  1. Form Title Texts
    You can set custom titles for the various forms.
  • Login With OTP Title: Enter title for the login with OTP form.
  • Login With Password Title: Enter title for the login with password form.
  • Create Account Title: Enter title for the create account form.
  • Forgot Password Title: Enter title for the forgot password form.

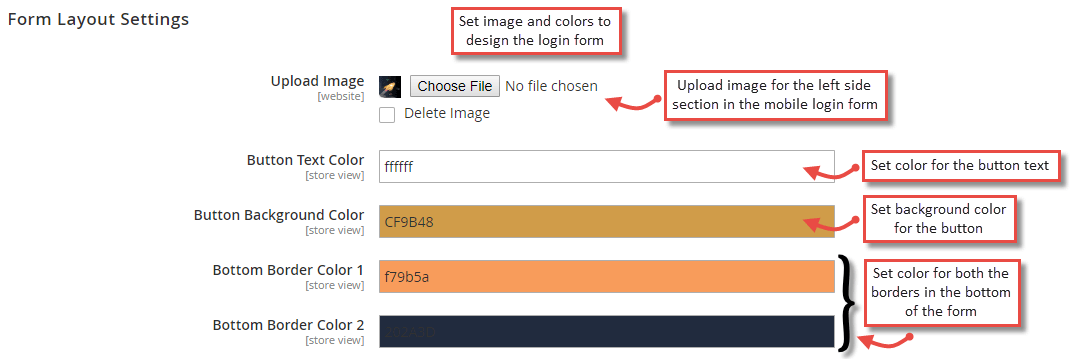

  1. Form Layout Settings
    The extension facilitates to design the form layout as per your need. Configure various settings to design form layout.
  • Upload Image: Upload image to show in the left side of the form.
  • Button Text Color: Set text color for the button in the form.
  • Button Background Color: Set background color for the button.
  • Bottom Border Color 1: Set color for the 1st border in bottom of the form.
  • Bottom Border Color 2: Set color for the 2nd border in bottom of the form.

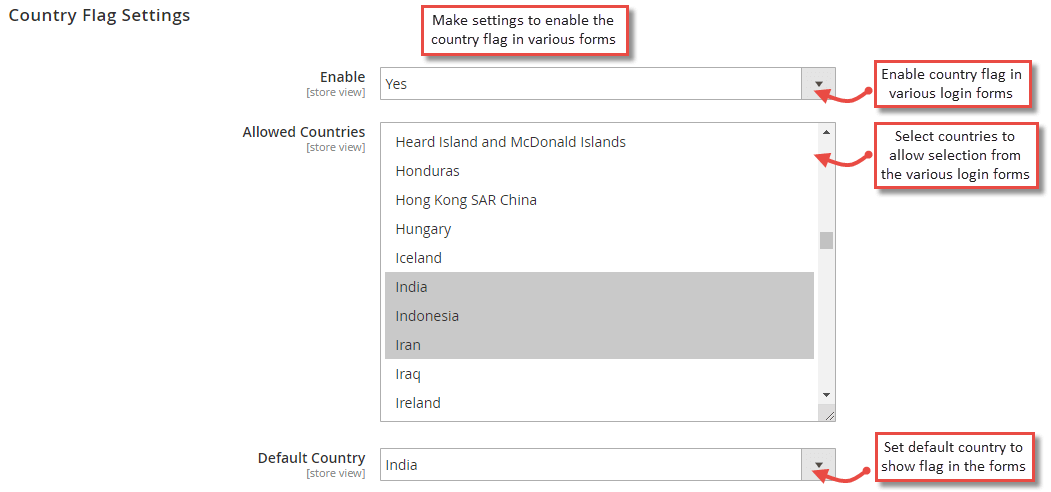

  1. Country Flag Settings
    You can enable the country flag for the mobile number fields in various forms. This helps users not to enter the country code while adding their mobile numbers.
  • Enable: Enable country flag in various mobile login forms.
  • Allowed Countries: Select countries for which you want to show the flag and allow users to add mobile numbers.
  • Default Country: Set default country to show the default selected flag.




  1. Mobile Login in Frontend
  • Registration with OTP

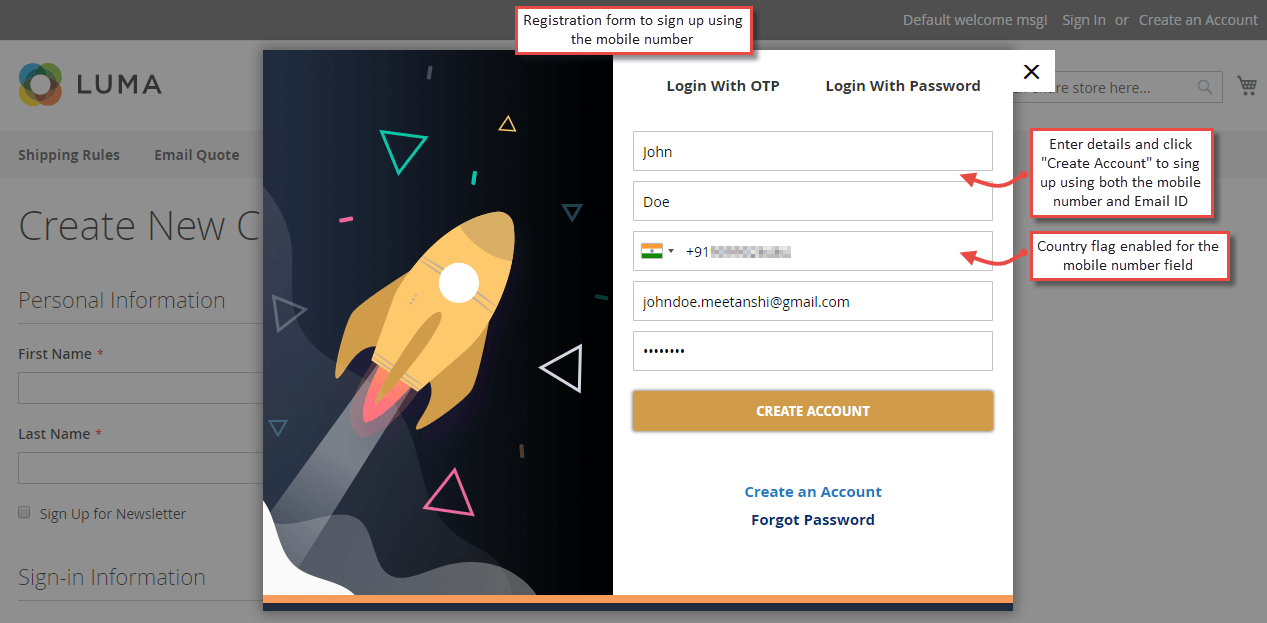

    On click of “Create an Account” from the frontend, a sign-up form gets opened for the users to add details and register by verifying mobile number using OTP.

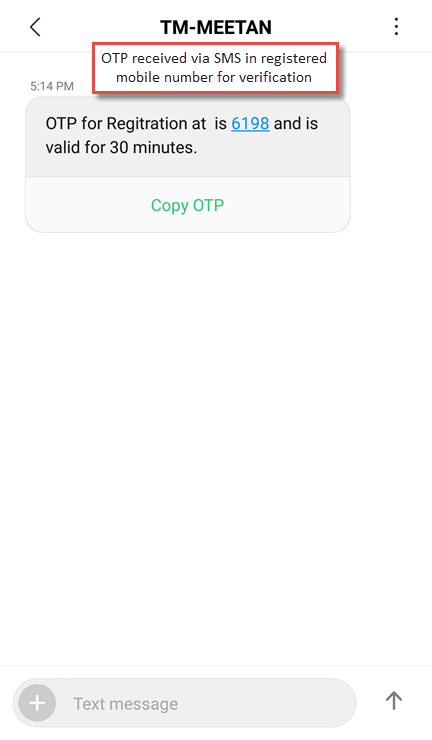

  • OTP SMS for Registration
    When a user enters mobile number along with the other sign up details, a verification SMS having OTP is sent to the registered mobile number.

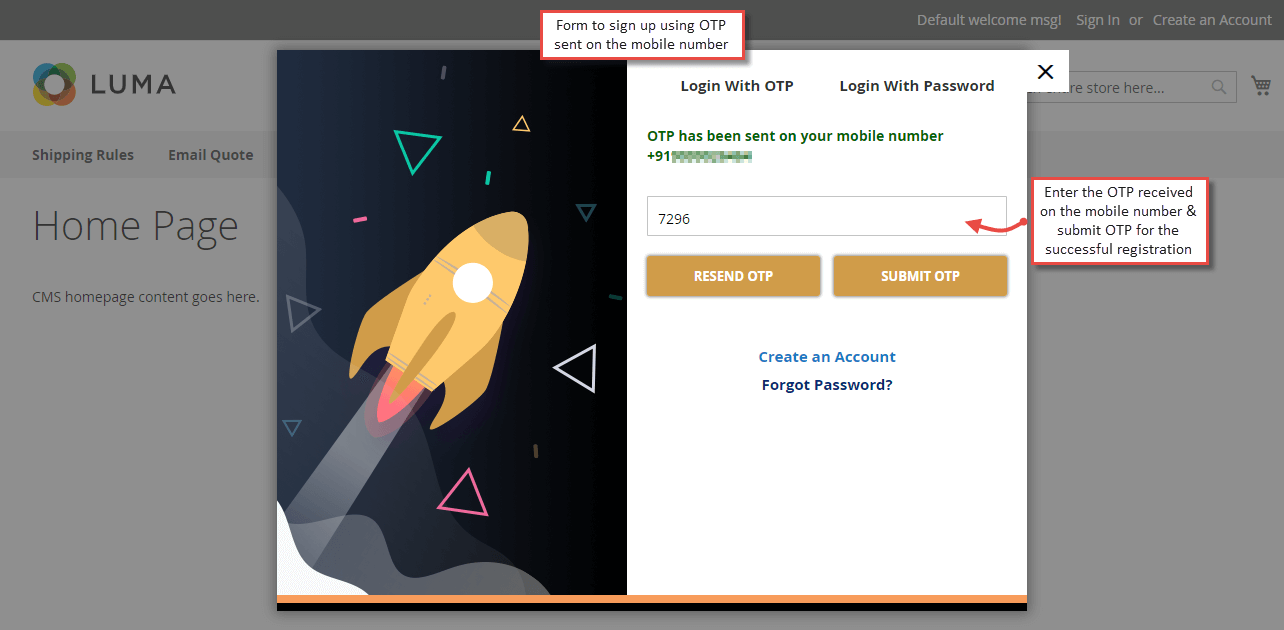

  • Mobile Number Verification Using OTP for Registration
    Users need to enter and submit OTP for registration and verify the mobile number for the successful signup.

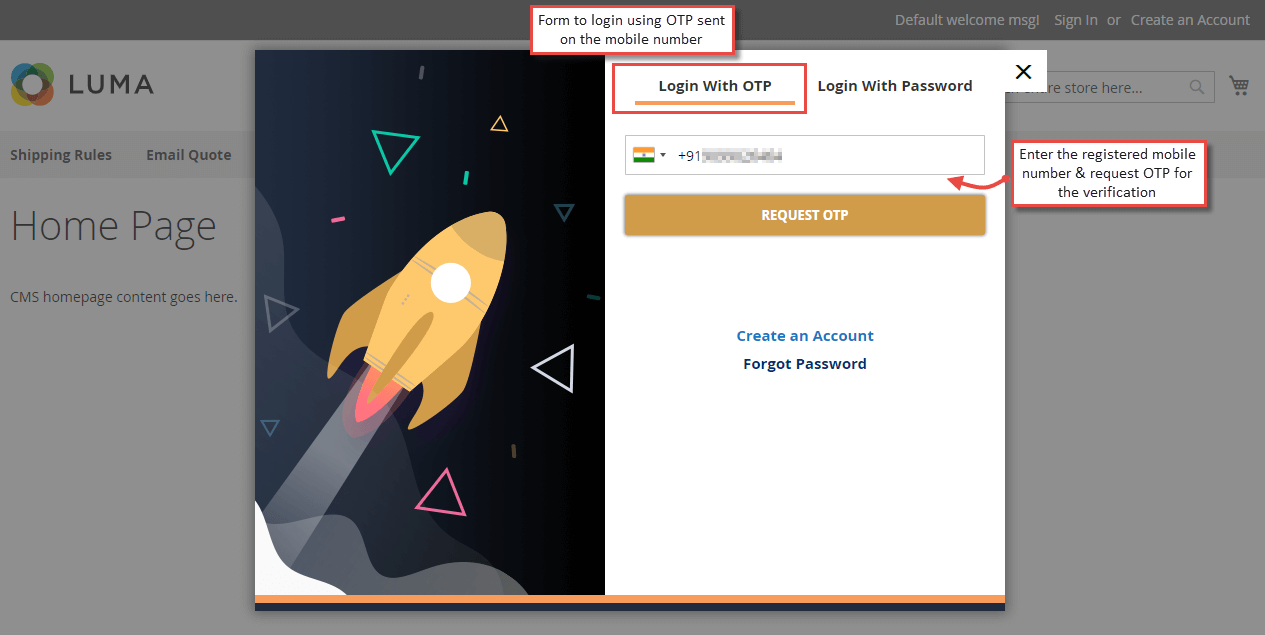

  • Login with OTP
    The user can log in with OTP using mobile number verification. Users simply add the registered mobile number and request OTP for the mobile verification.

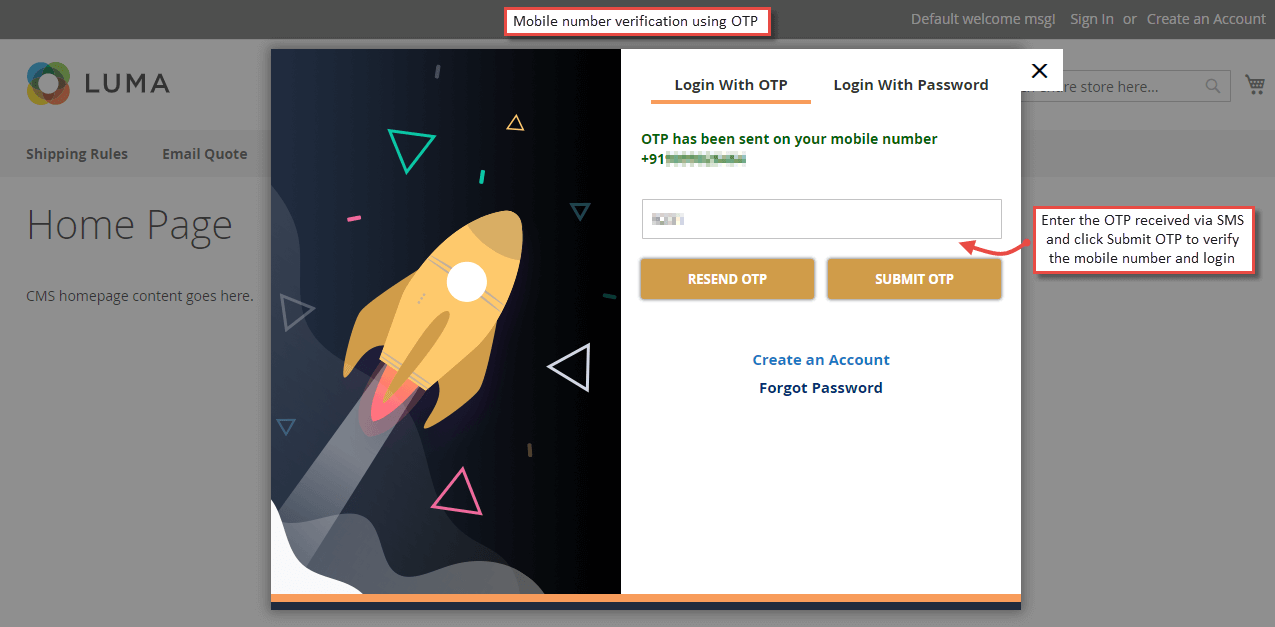

  • Mobile Number Verification Using OTP for Login
    Same as the registration process, the OTP SMS is sent to users registered mobile number. Users need to enter and submit OTP for login and verify the mobile number for the successful login.

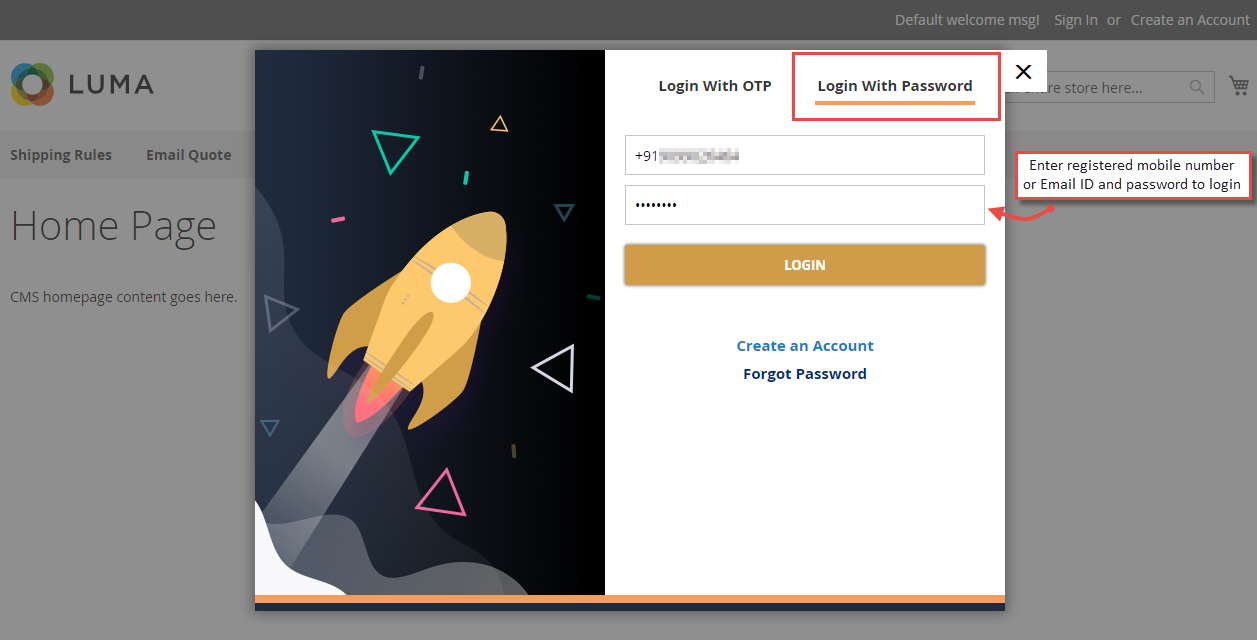

  • Login with Password
    Apart from the login with OTP, users can opt to login using a password. They can Enter either Email ID or mobile number along with the password here to login.






  • Reset Password with OTP

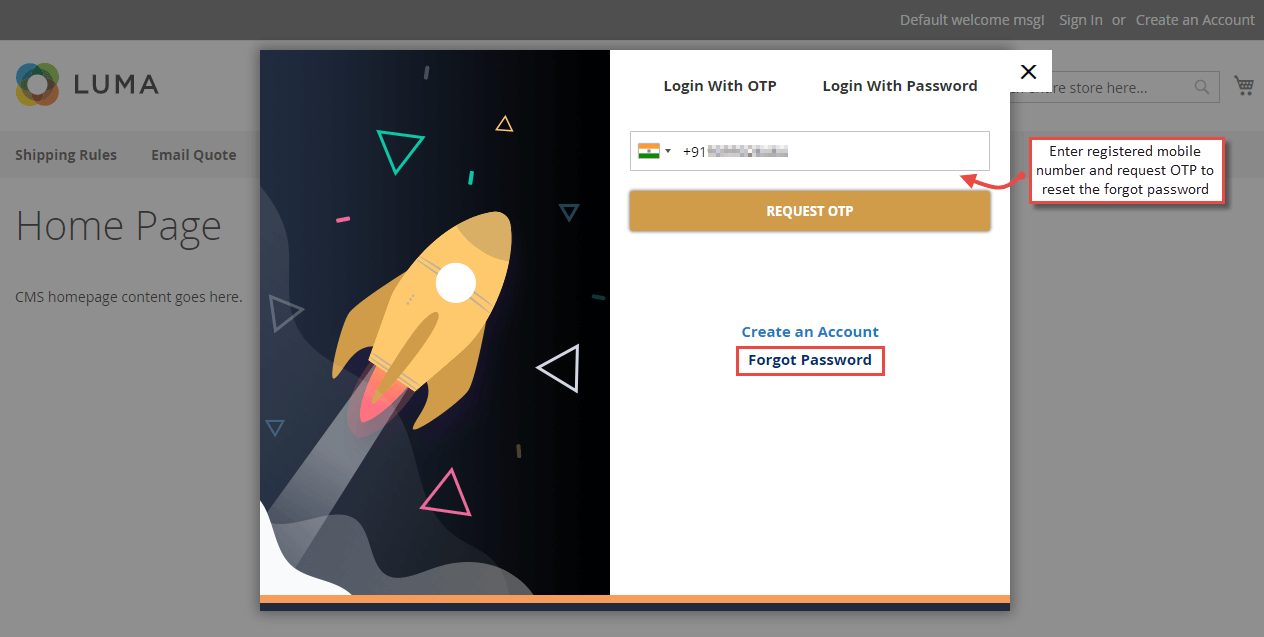

    The users can click “Forgot Password” from the login form to reset the password after mobile number verification. Enter the registered number, click request OTP to reset the password.

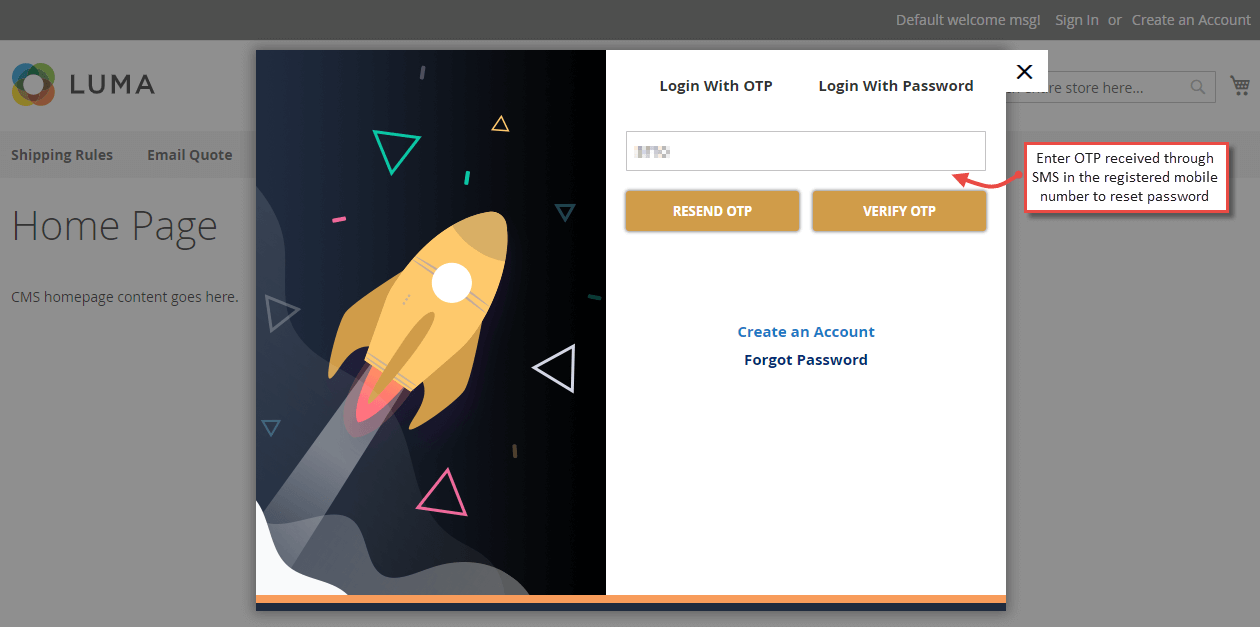

  • OTP Verification for Forgot Password
    Same as the registration and login process, the OTP SMS is sent to users registered mobile number. Users need to enter and submit OTP to verify the mobile number and reset the password.

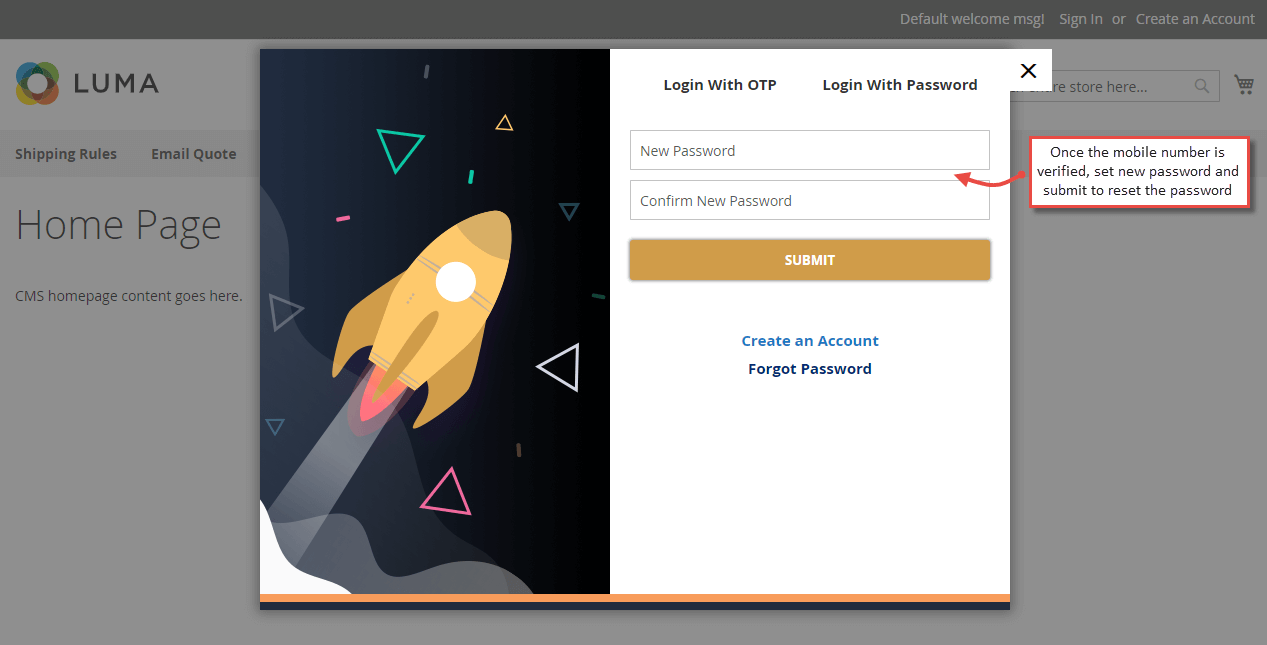

  • Reset Password
    Once the mobile number is verified, the user can reset the password.

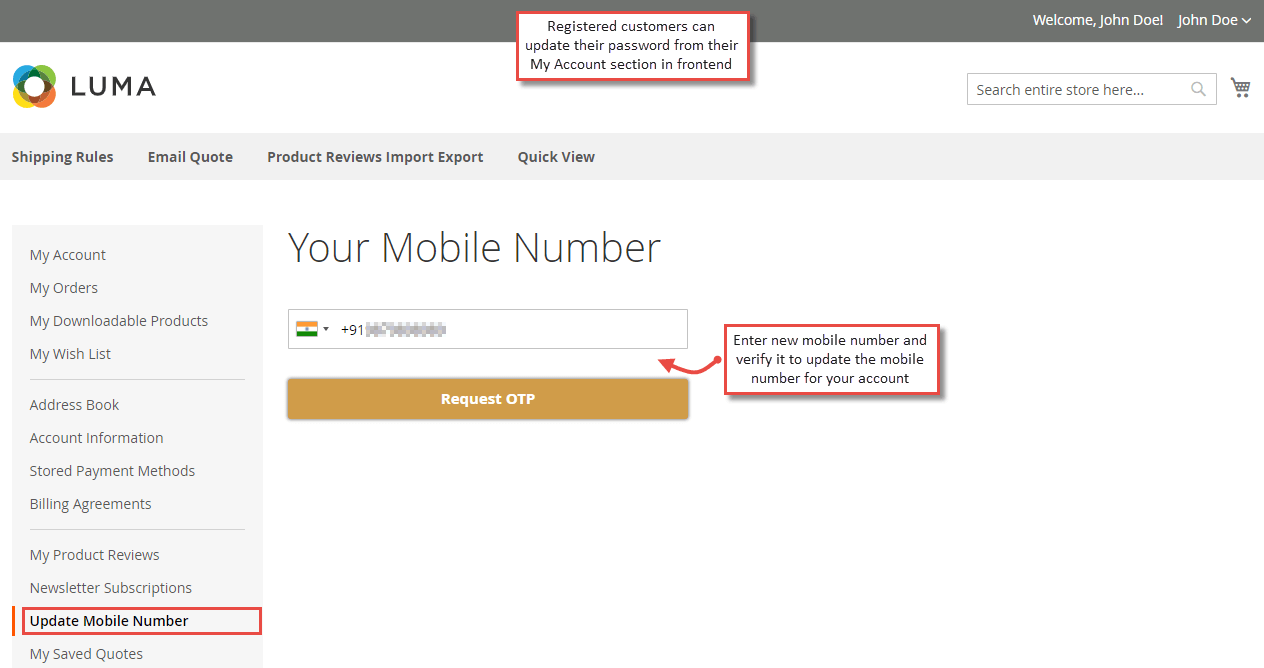

  • Mobile Number Update from My Account
    The users can add or update mobile number from their My Account section under “Update Mobile Number” tab. Add a new mobile number, click Request OTP to get verification OTP message, verify the new mobile number by adding the OTP and your mobile number is updated.




  1. SMS Logs

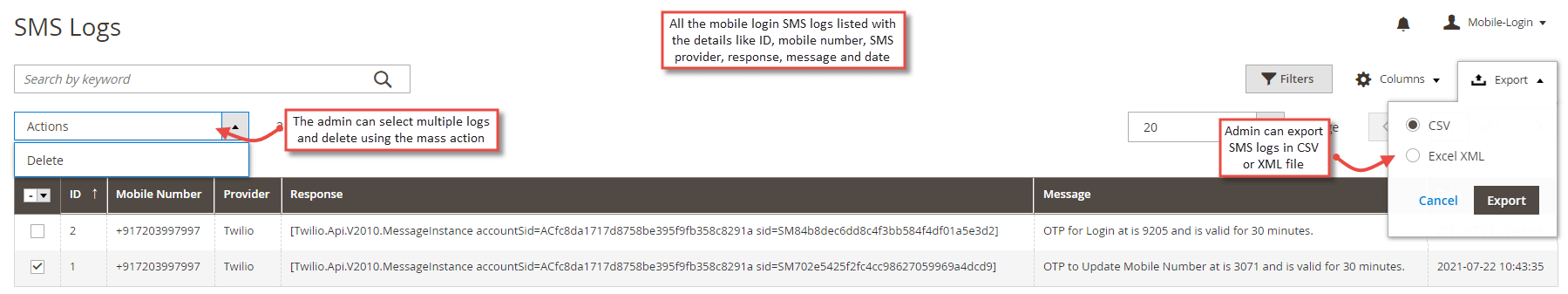

    The extension saves the log of all the sent and received messages. Go to Meetanshi Mobile Login > SMS Logs where you can find all the SMS logs listed with the details like ID, mobile number, provider, response, message and date. The admin can delete the SMS logs using the mass action. Also, the admin can export the logs in an XML or CSV file.
