Magento 2 Custom Option Image

Magento 2 Custom Option Image extension enables displaying images of each product option for better visualization in the store.

Table of Content

1. Extension Installation Guide
2. Configuration
3. Upload Custom Option Image from Product Edit
4. Custom Option Image in Frontend

1. Extension Installation

•  For Magento Marketplace Customers
  • Find the Composer name and version of the extension in the extension’s composer.json file.
  • Login to your SSH and run:
    • composer require meetanshi/magento2-custom-option-image
  • Enter your authentication keys. Your public key is your username; your private key is your password.
  • Wait for Composer to finish updating your project dependencies and make sure there aren’t any errors.
  • To verify that the extension installed properly, run the command:
    • php bin/magento module:status Meetanshi_CustomOptionImage
  • By default, the extension is probably disabled.
  • Enable the extension and clear static view files:
    • php bin/magento module:enable Meetanshi_CustomOptionImage --clear-static-content
    • php bin/magento setup:upgrade
    • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
    • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
    • php bin/magento cache:flush

• For Meetanshi Customers

• Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
• Login to your SSH and run below commands step by step:

• php bin/magento setup:upgrade
• For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
• For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
• php bin/magento cache:flush

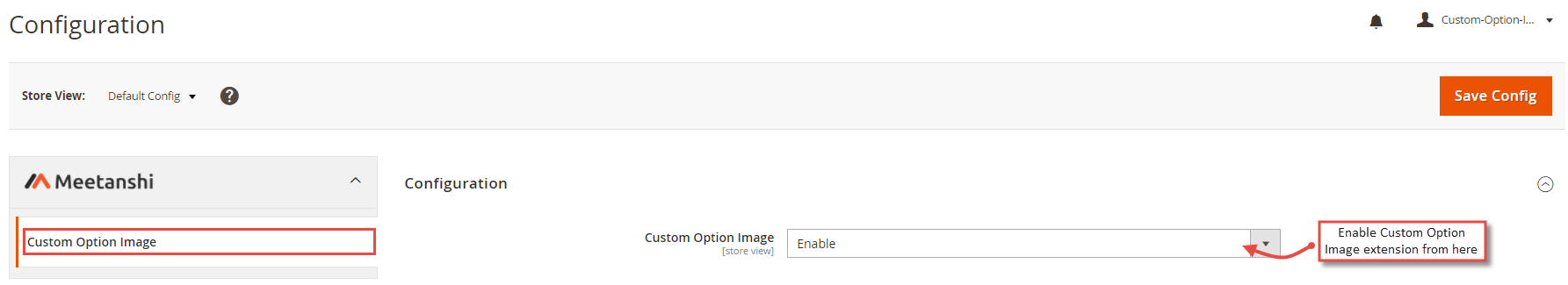

2. Configuration
   To configure the extension, login to Magento 2, move to Stores à Configuration à Meetanshi à Custom Option Image where you can find setting to enable the extension.

• Custom Option Image: Enable or disable the extension from here.

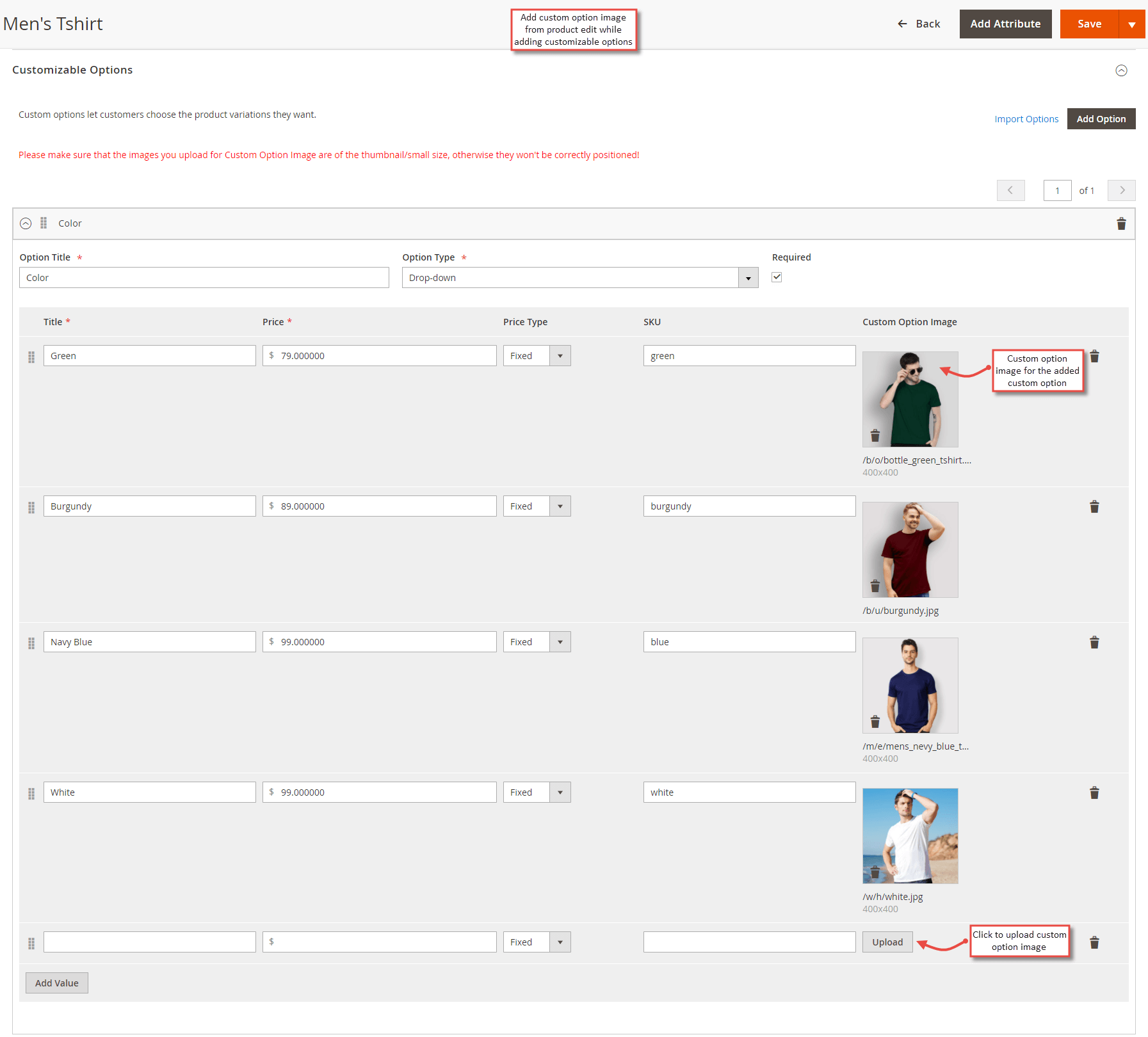

3. Upload Custom Option Image from Product Edit
   After enabling the extension, move to Catalog > Products, edit a product to which you want set custom option images. Go to Customizable Options tab, add custom options and you can see “Upload” button to add respective custom option image.

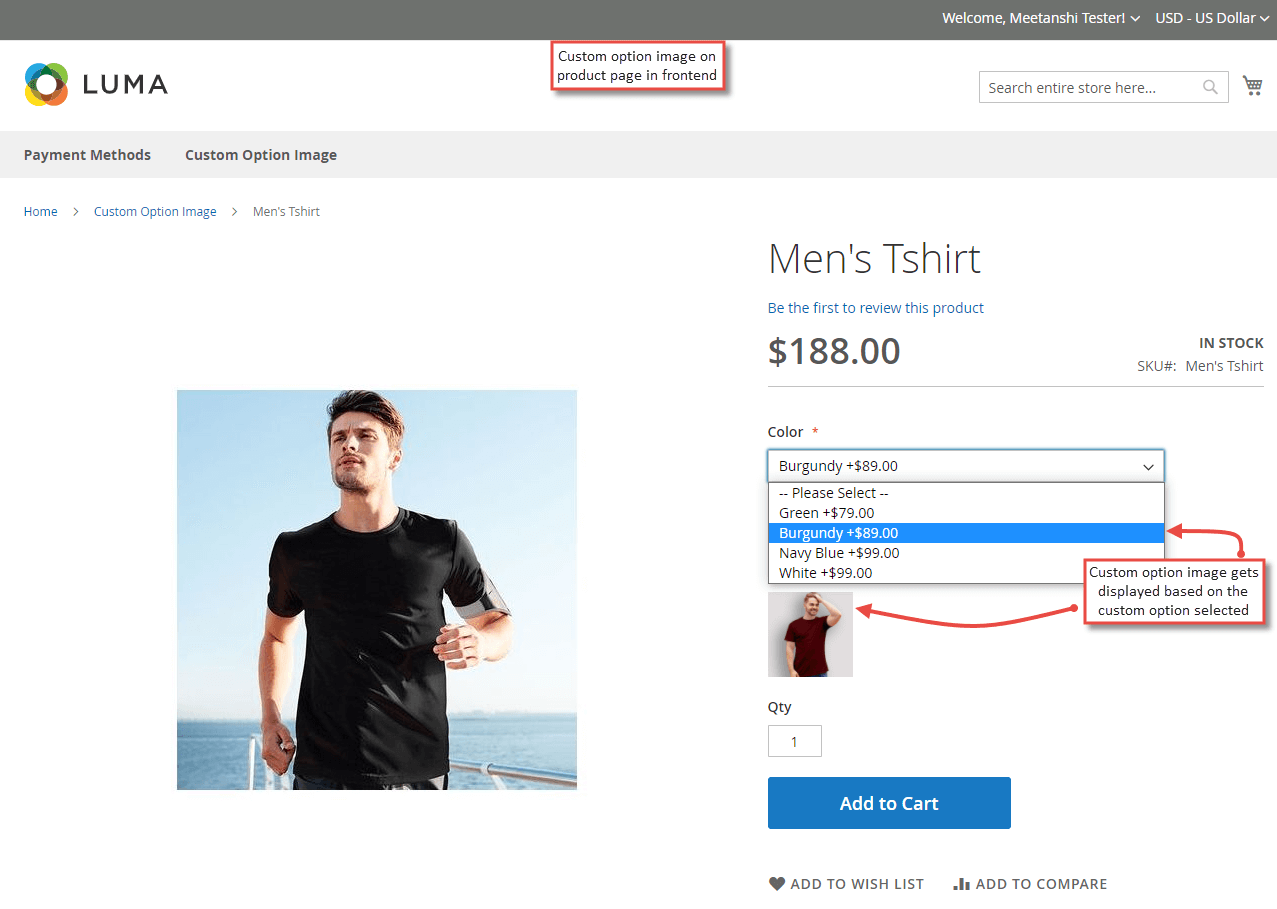

4. Custom Option Image in Frontend
   After uploading the custom option image to product’s custom options, whenever a user selects a custom option, its respective custom option image is shown below the dropdown.
