Magento 2 Order Attachment

Magento 2 Order Attachment allows customers to add attachments such as Images, PDFs or any type of Files/Docs while placing the orders.


Table of Content

  1. Extension Installation Guide
  2. Configuration
  3. General Settings
  4. Email Settings
  5. Order Attachment in Frontend
  6. Order Attachment in Backend
  7. Order Attachment Emails


  1. Extension Installation
  • Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
  • Login to your SSH and run below commands step by step:
    • php bin/magento setup:upgrade
    • For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
    • For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy –f
    • php bin/magento cache:flush
  • That’s it.


  1. Configuration
     For configuring the extension, log in to Magento 2, move to Stores > Configuration where you can find various settings to enable the extension.
  • Order Attachment: Enable or disable the extension from here.
  • Attachment Directory: Specify the directory where the uploaded attachments would get saved.
  • Allowed File Extensions: Add file extensions for allowed attachment types.
  • Max.  Attachment File Size: Set the maximum size of the file to allow for attachment upload.

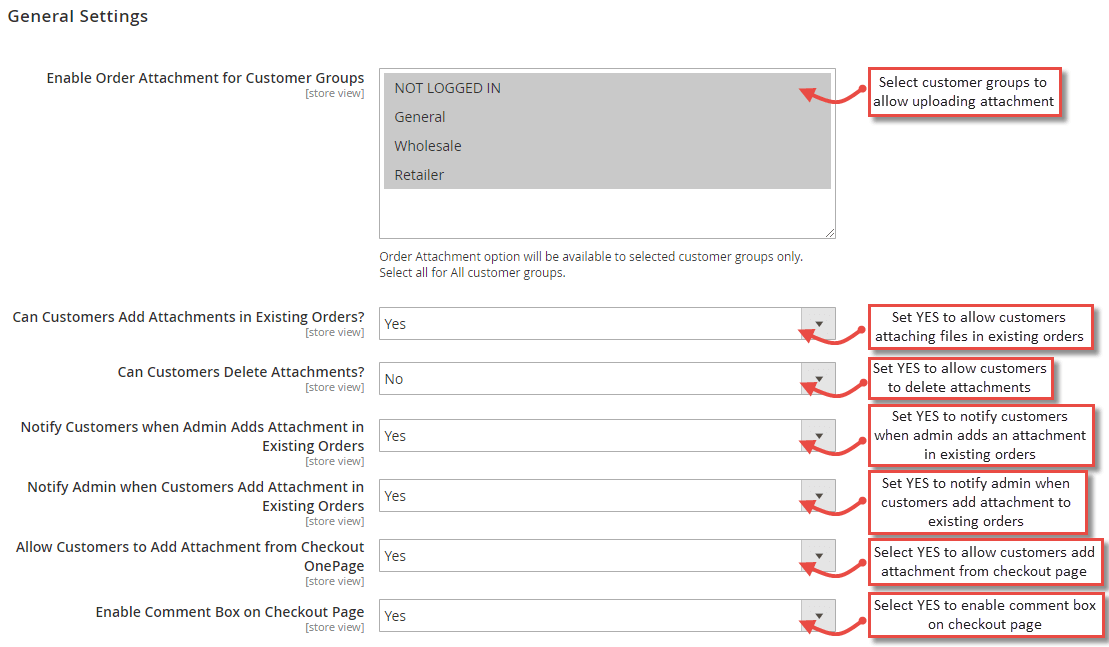

  1. General Settings
    Here you can find various settings related to customer groups and notification emails to both admin and customers.
  • Enable Order Attachment for Customer Groups: Select customer groups to allow adding order attachment.
  • Can Customer Add Attachments in Existing Orders: If set YES, customers can add attachments in existing orders.
  • Can Customers Delete Attachments: If set YES, customers can delete uploaded attachments.
  • Notify Customer when Admin Add Attachment in Existing Orders: Set YES to notify customers when admin add an attachment in orders from the backend.
  • Notify Admin when Customer Add Attachment in Existing Orders: Set YES to notify admin when customers add an attachment in existing orders.
  • Allow Customers to Add Attachment from Checkout One page: Set YES to allow customers to upload attachment files from the checkout one page.
  • Enable Comment Box on Checkout Page: Set YES to enable comment box on the checkout page to allow customers to add a comment for the orders.

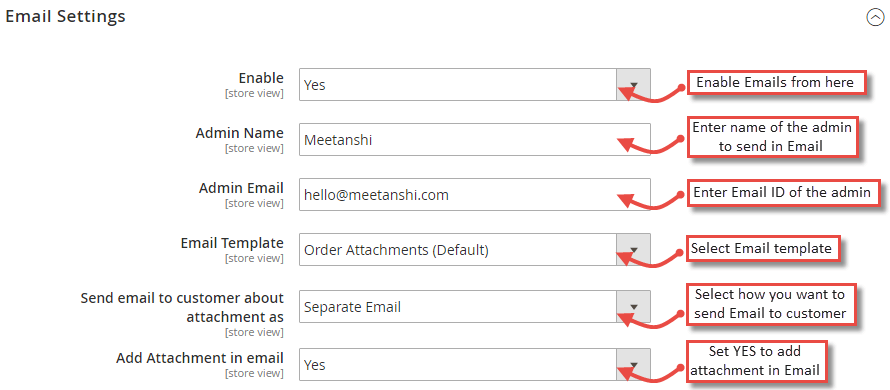

  1. Email Settings
    Here you can find various Email settings such as admin name, Email, template, etc.
  • Enable: Set YES to enable Email notifications to both admin and customers.
  • Admin Name: Enter name of the admin to send in notification Emails.
  • Admin Email: Enter Email ID of the admin.
  • Email Template: Select template for the notification Emails.
  • Send Email to Customer About Attachment As: Select the option for how you want to send order attachment Emails to customers.
  • Add Attachment in Email: Set YES to add order attachments in Emails.



  1. Order Attachment in Frontend

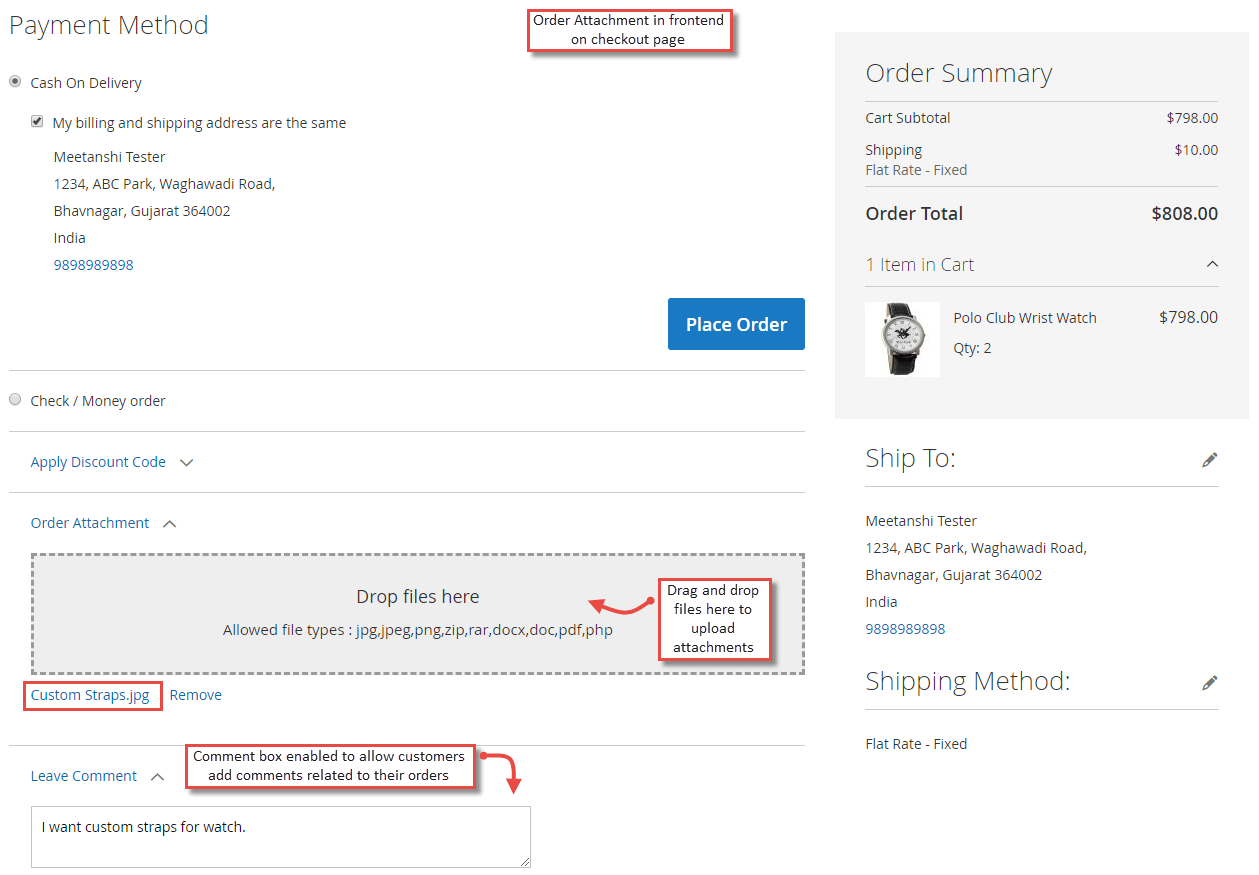

    Once you have configured the extension successfully, the Order Attachment can be seen enabled in frontend. Whenever a customer adds products to cart and go to check out, they get drag and drop files selector to upload the attachment files and add a comment to the box.

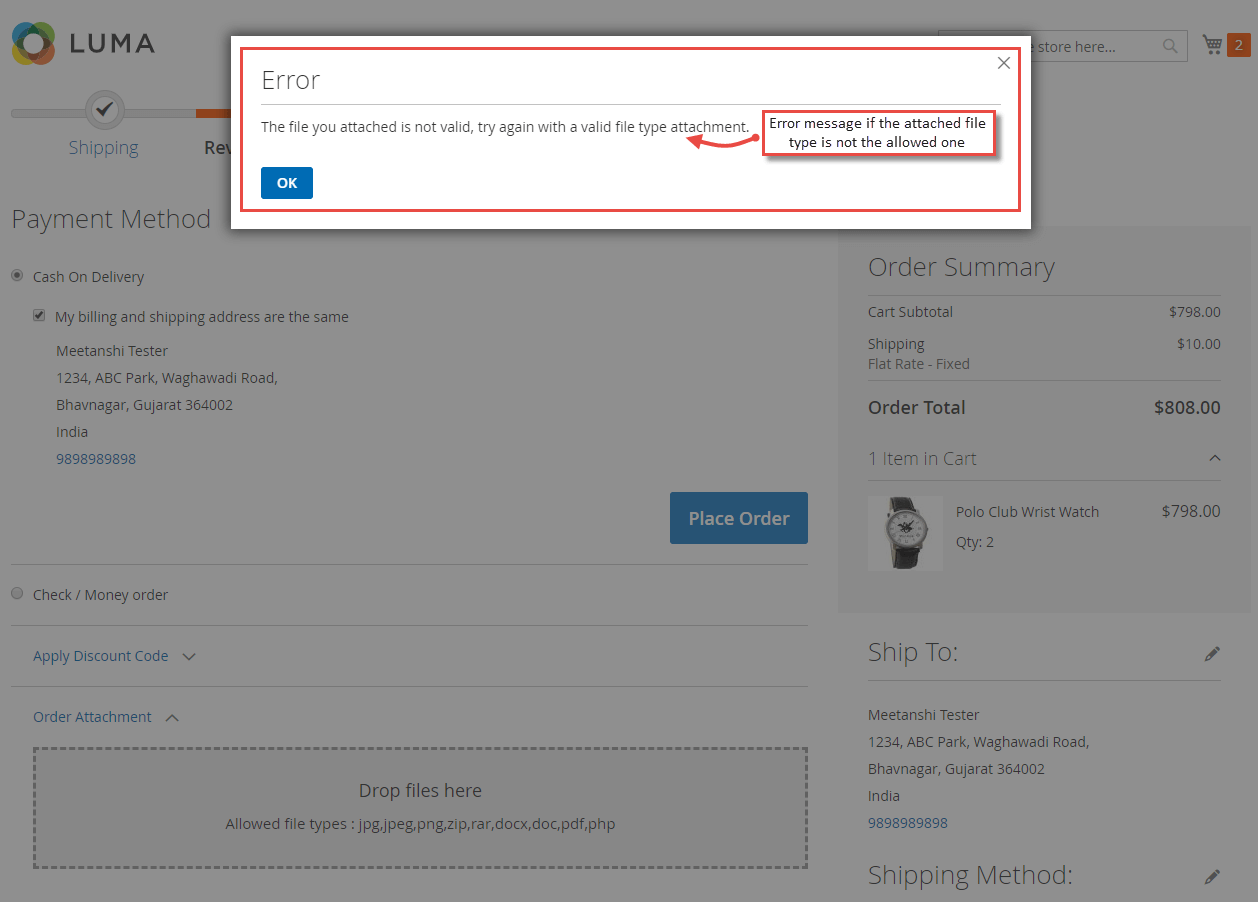

  • Order Attachment Error Message
    If the attachment is not meeting the extension configuration criteria, it flashes error message as shown below.

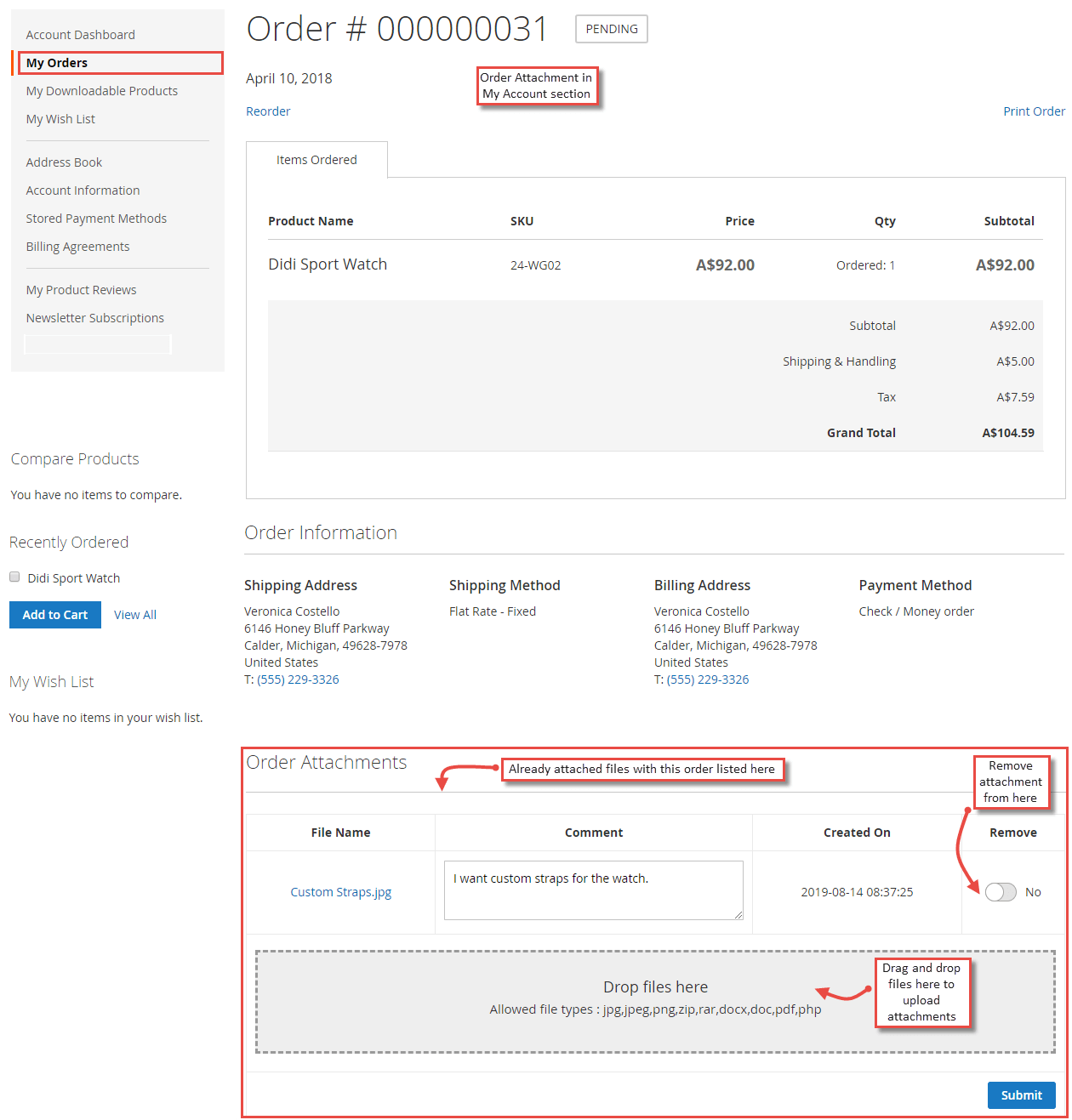

  • Order Attachment in an Order
    Once the order is placed with added attachment, customers can see the attachments in My Orders section under order view. Where customers can even add a comment and submit.

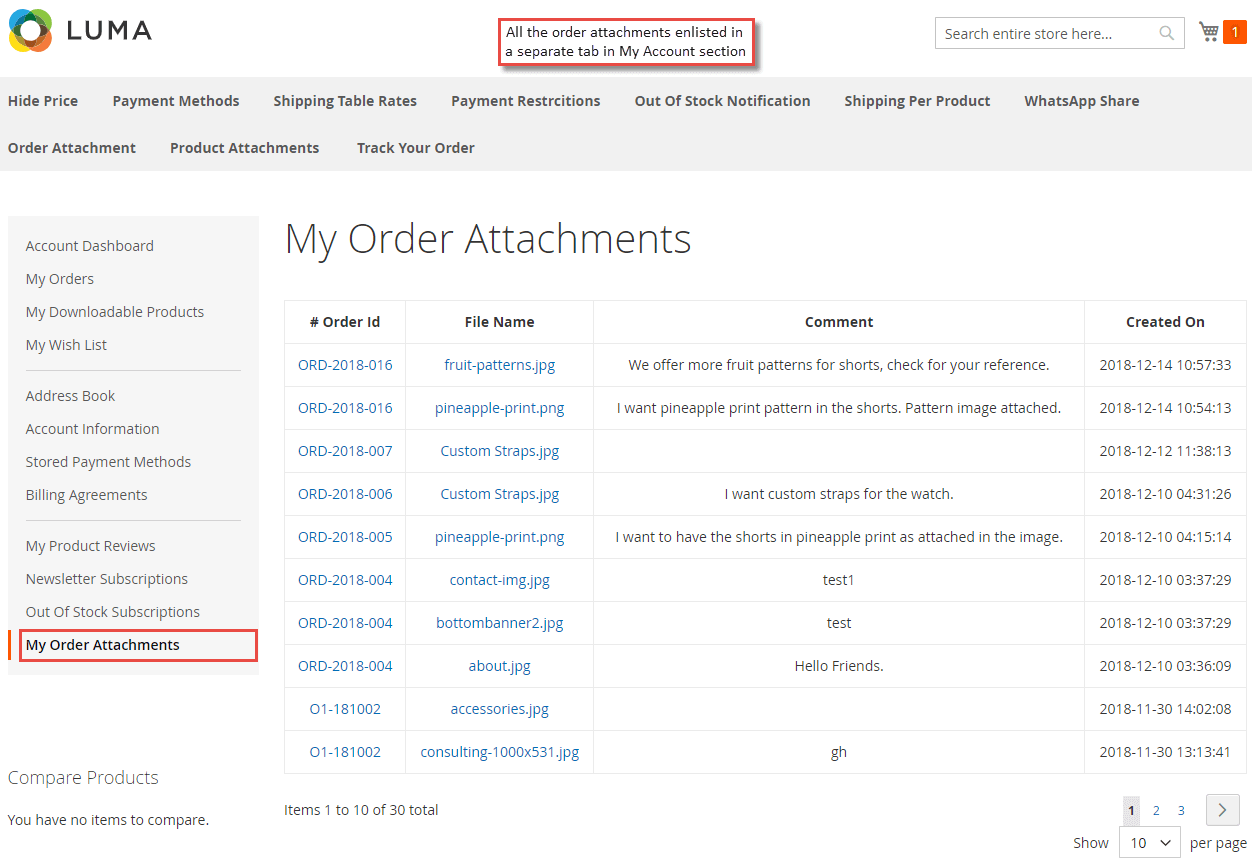

  • Order Attachment in “My Order Attachments” Tab
    The extension facilitates to see all the order attachments together under “My Order Attachments” tab in “My Account” section.

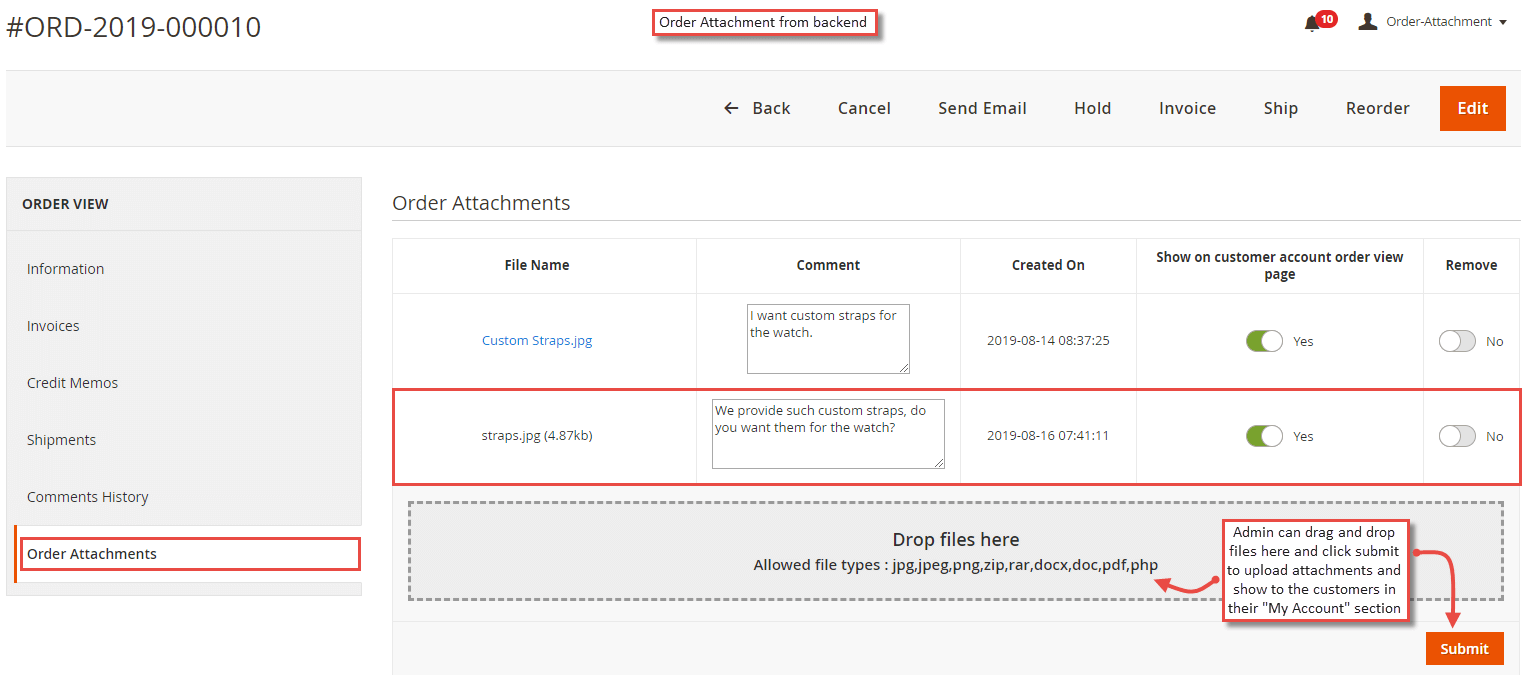

  1. Order Attachment in Backend
    Apart from the frontend, the extension facilitates to add order attachment from backend as well. Under Sales > Orders, a separate tab for order attachment is available from where admin can see attachments added by customers and also drag and drop attachment files to upload and submit the attachments for the customers.


  1. Order Attachment Emails
  • Order Attachment Email to Admin
    Once the order attachment is added by customers, admin gets Emails with customers and attachments details.

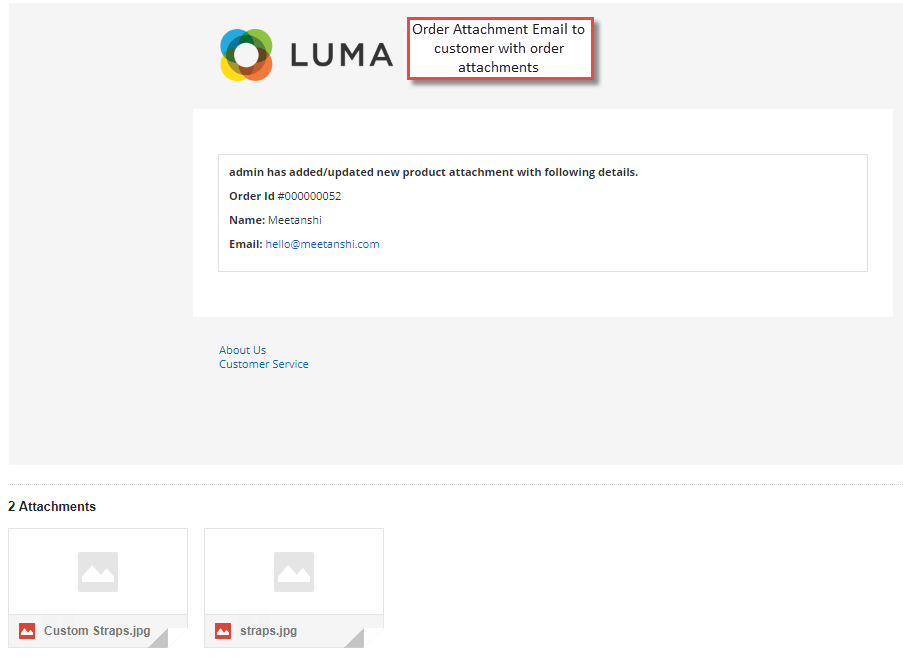

  • Order Attachment Email to Customers
    If admin adds order attachments from the backend, customers get Emails with order and attachments details.
